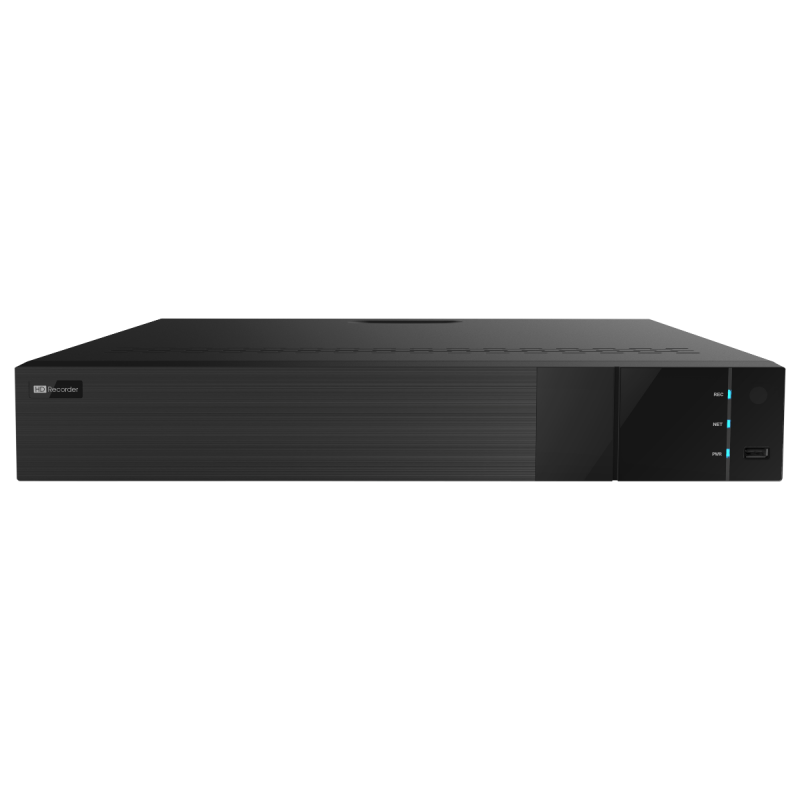

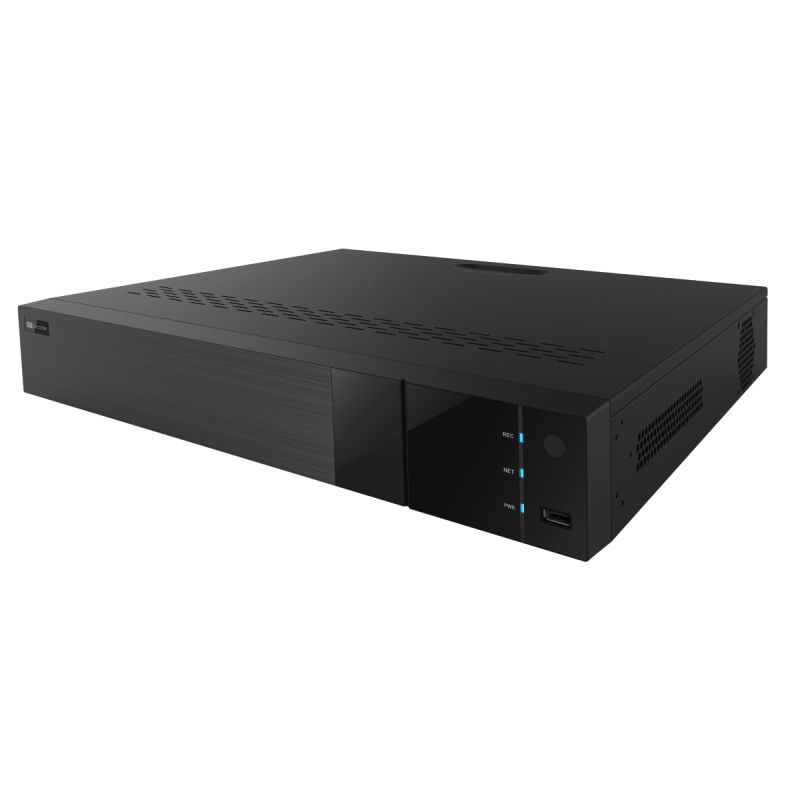

ED8004H5-B | 4CH Titanium TVI/AHD/CVI 5MP DVR

Worldeyecam
SKU: WECED8004H5-B
  • 4CH TVI / AHD video input, support 5MP / 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH DVR support 2 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P recording
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback : 4CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • Support 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
    • 33% less
    Market price:$201.00 save $67.00
  • $134.00

OR
  • 4CH TVI / AHD video input, support 5MP / 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1 recording
  • 4CH DVR support 2 CH IPC 5MP / 4MP / 3MP / 1080P / 960P / 720P recording
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback : 4CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • Support 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
More Information
System CompressionH.265 High profile
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video CompatibilityHD-TVI / AHD / HD-CVI
Max. Video Channels4CH

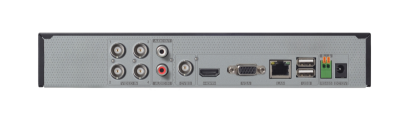

Video InBNC x 4
IP Camera InputIPC x 2
IPC Resolution5MP / 4MP / 3MP / 1080P / 960P / 720P
IPC Frame Rate25fps ( PAL ) / 30fps ( NTSC )
Video InterfaceHDMI/VGA/CVBS
Video ResolutionTVI/AHD : 5MP/4MP/3MP/1080P/720P/WD1 CVI : 4MP/3MP/1080P/720P/WD1
Multi-Screen DisplayN/A
OSDYes
Audio In1CH, RCA
Audio Out1CH, RCA
2 Way AudioTake up channel one as an audio input
Recording Resolution5MP Lite/4MP Lite /1080P/720P/WD1
Recording Frame Rate

5MP Lite :10fps
4MP Lite : 12fps (PAL)/15fps (NTSC)
1080P : 12fps (PAL)/15fps (NTSC)
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)

Recording EncodeN/A
Recording QualityN/A
Recording ModeManual, timer, motion
Recording File ManagementN/A
Playback Channels4CH
Playback SearchTime slice / time / event / tag search
Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback FunctionPlay, pause, FF, FB, digital zoom, etc
Alarm InNO
Alarm OutNO
Alarm ModeManual, motion, exception
Trigger EventsRecord, snap, preset, e-mail, etc.
Network Bandwidth36/40Mbps (access/transfer)
Network FunctionTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Network Max. UsersN/A
MobileiPhone, Android
Cellphone FunctionN/A
RS485RS485 x 1, connect to PTZ or keyboard
USBUSB 2.0 × 2
remoteOptional
Power SupplyDC12V / 1.5A
Power Consumption≤ 5W ( without HDD )
Internal HDD1 x SATA (up to 6TB capacity for each disk),
e-SATAN/A
Operating Conditions-10 ~ 50 ℃,10% ~ 90% humidity
Dimensions255mm × 233mm × 42 mm( W × D × H )
    • SKU
      WECED8004H5-B
    • Weight
      2 lbs
  • Manufacturer
    Worldeyecam
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
