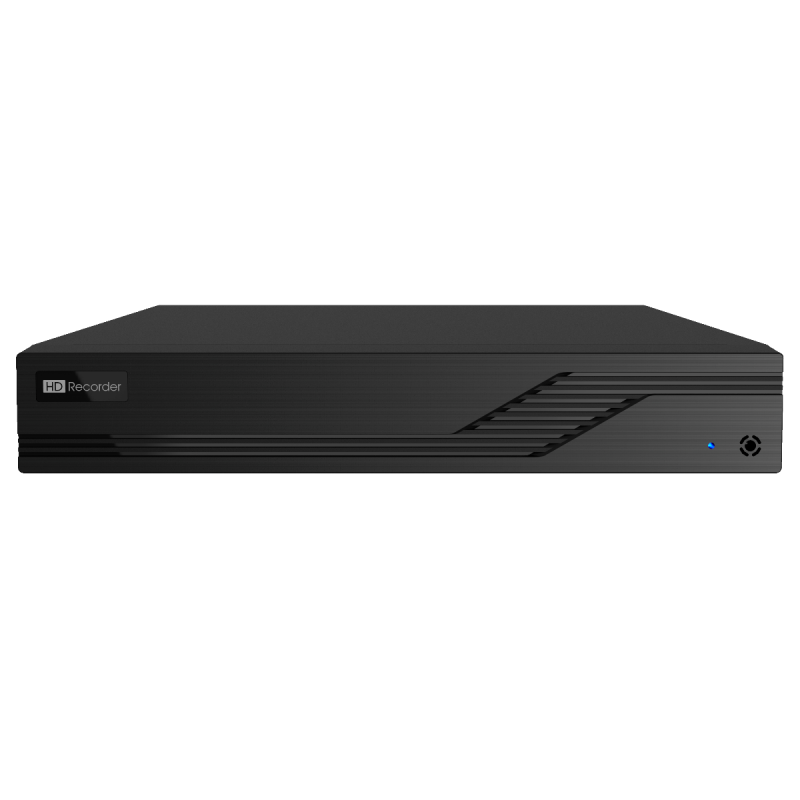

ED8016H5-B | 16CH Titanium TVI / AHD / CVI Hybrid DVR

WEC
SKU: WECED8016H5-B
  • 16 CH TVI / AHD video input, 5MP Lite /4MP Lite /1080P/720P/WD1
  • 16 CH video input, support Lite/1080P/ 720P/WD1
  • 16 CH DVRs default support 8 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback: 16CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • Support 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
    • 42% less
    Market price:$580.00 save $242.00
  • $338.00

OR
  • 16 CH TVI / AHD video input, 5MP Lite /4MP Lite /1080P/720P/WD1
  • 16 CH video input, support Lite/1080P/ 720P/WD1
  • 16 CH DVRs default support 8 CH IPC 4MP / 3MP / 1080P / 960P / 720P recording
  • Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
  • Multi-mode recording: manual / timer / motion
  • Playback: 16CH simultaneously playback
  • Search: time slice, time, event ( manual, motion ), tag search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
  • Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • Support 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
  • Support NAT function and QRCode scanning by mobile phone and PAD
  • Powerful smart phone & Pad surveillance with iOS and Andriod OS
More Information
System CompressionH.265 High profile
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video CompatibilityHD-TVI / AHD / HD-CVI
Max. Video Channels16CH

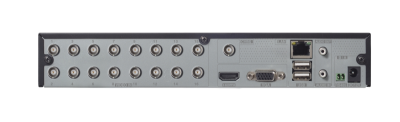

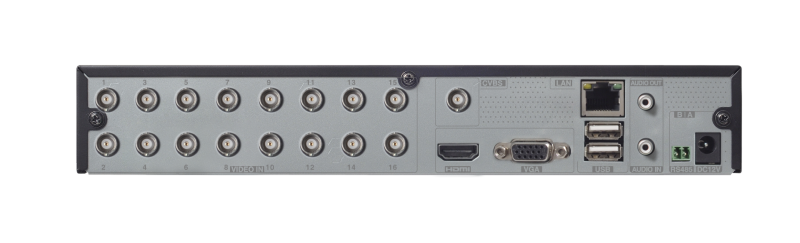

Video InBNC x 16 (TVI/AHD/CVI)
IP Camera Input8CH ( Up to 16CH )
IPC ResolutionTVI/AHD : 5MP/4MP/3MP/1080P/720P/WD1 CVI : 4MP/3MP/1080P/720P/WD1
IPC Frame Rate25fps ( PAL ) / 30fps ( NTSC )
Video InterfaceHDMI/VGA/CVBS
Video ResolutionHDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output )
Multi-Screen DisplayN/A
OSDYes
Audio In1CH, RCA
Audio Out1CH, RCA
2 Way AudioTake up channel one as an audio input
Recording Resolution5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Recording Frame Rate

5MP Lite :10fps
4MP Lite : 12fps (PAL)/15fps (NTSC)
1080P : 12fps (PAL)/15fps (NTSC)
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)

Recording EncodeN/A
Recording Quality6 Level
Recording ModeManual, Timer, Motion
Recording File ManagementLock, Unlock
Playback Channels16CH
Playback SearchTime slice / time / event / tag search
Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
Playback FunctionPlay, pause, FF, FB, digital zoom, etc.
Alarm InN/A
Alarm OutN/A
Alarm ModeManual, motion, exception
Trigger EventsRecord,snap,alarm out,e-mail, etc
Network Bandwidth 72/80Mbps
Network FunctionTCP/IP、PPPoE、DHCP、DNS、DDNS、UPnP、NTP、SMTP
Network Max. UsersN/A
MobileiPhone, Android
Cellphone FunctionN/A
RS4851, connect to PTZ or keyboard
USB2 x USB2.0
remoteOptional
Power SupplyDC12V / 3A
Power Consumption<10W (without HDD)
Internal HDD1 x SATA (up to 8TB capacity for each disk)
e-SATAN/A
Operating Conditions-10~50°C, 10%~90% (Humidity)
Dimensions255mm x 233mm x 42mm (W x D x H)
    • SKU
      WECED8016H5-B
  • Manufacturer
    WEC
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup

Product questions

  • PAUL
    Nov 30, 2023, 05:53

    We have a hd recorder ed8016h5-b and today it has a continuous beep and is hard to work with this noise. Can your company tell us where can be the problem? I will really appreciate. I forgot to mention there is no image, is like the equipment is OFF with a continuous beeping.

    Administrator
    Nov 30, 2023, 07:44

    Email sent. Kindly check your inbox. Thank you, Paul.
