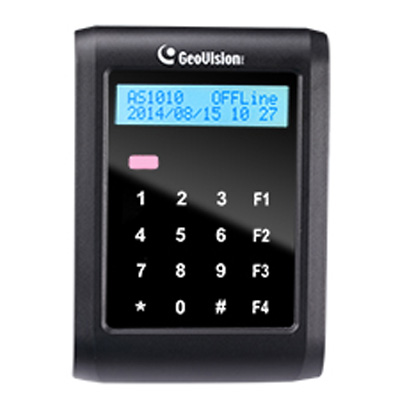

GeoVision Access Control GV-AS1010 Controller with Built-in Reader

Geovision
SKU: GV-AS1010

GV-AS1010 is suitable for controlling doors, parking gates and access to elevator call buttons.

Product Features

  • 1 door (one-way and two-way control)

  • 1,000 / 40,000 cards (standalone / networked mode)

  • Easy programming from keypad

  • Function keys on keypad to register attendance data for GV-TAWeb

  • Built-in 3 digital inputs and 2 relay outputs

  • 1 RS-485 interface for connecting to up to 2 readers

  • 1 network interface for connection with GV-ASManager and TCP/IP read

  • Built-in 13.56 MHz Reader

  • Built-in tampering alarm sensor

  • Anti-Passback (APB) support
    • 18% less
    Market price:$429.00 save $79.00
  • $350.00

OR

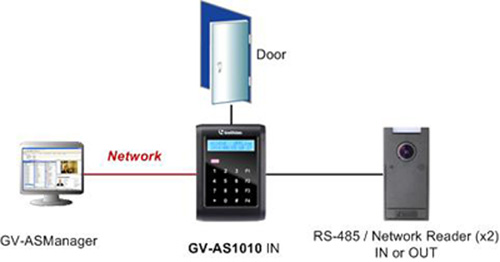

Working as a standalone solution, GV-AS1010 is a card reader with a LCD display and also a single door controller. It is possible to add two more card readers to GV-AS1010 for entry and exit applications. GV-AS1010 has the capability to store up to one thousand cards. When GV-AS1010 is being used as a standalone unit, the programming is either done on the keypad or from the software GV-ASManager



GV-AS1010 is suitable for controlling doors, parking gates and access to elevator call buttons.



Product Features

  • 1 door (one-way and two-way control)
  • 1,000 / 40,000 cards (standalone / networked mode)
  • Easy programming from keypad
  • Function keys on keypad to register attendance data for GV-TAWeb
  • Built-in 3 digital inputs and 2 relay outputs
  • 1 RS-485 interface for connecting to up to 2 readers
  • 1 network interface for connection with GV-ASManager and TCP/IP read
  • Built-in 13.56 MHz Reader
  • Built-in tampering alarm sensor
  • Anti-Passback (APB) support

Packing List

  • GV-AS1010
  • Power Adaptor 12V DC / 1.25A
  • Power Cord
  • Screw x 3
  • Screw Anchor x 2
  • Enroll Card
  • Delete Card
  • GV-AS ID F Card x 20





SPECIFICATIONS


Model86-AS10156-001U
GV-ASManager VersionGV-ASManager V4.2.3 or later
Hardware
CPU32-bit ARM7TDMI
Number of User Cards>1,000 / 40,000 cards ( standalone / networked mode)
Frequency13.56 MHz for ISO14443A (Mifare DESFire, Mifare Plus and Mifare Classic)
Event Buffer65,536 events and log data
Power100 ~ 240V AC, 50 ~ 60Hz
RS-485 Interface1 RS-485 interface for GV-Readers and GV-GF Fingerprint Readers (max. 2 readers)
TCP / IP Interface>1 TCP/IP interface for GV-CR420 and GV-GF1921 / 1922
Communication ProtocolTCP / IP
Digital I/O Imput3 inputs, dry contact, NO / NC
Digital I/O Output>2 relay outputs (30V DC, 5A; 110V AC ~ 250V AC, 5A )
Function Keys on KeypadYes
Supported ID FormatsBuilt-in reader reads both GID and UID
Operating Temperature0 ~ 65°C / 32 ~ 149°F
Operating Humidity10% ~ 90% RH (non-condensing)
Dimension (W x H x T)>96 x 137 x 27 mm / 3.78 x 5.39 x 1.06 in
Weight250 g / 0.55 lb
Ingress ProtectionIP54
Certification>CE, FCC, RoHS
  •

Product Features


    • 1. GV-AS1010 does not support 3rd party access control software and 3rd party readers.
    • 2. GV-AS1010 is a controller with a built-in card reader. GV-AS1010 cannot be used as an independent card reader.
    • 3. Specifications are subject to change without notice.
