GV-RS036 Recording Server (GV & 3rd Party) - 36 CH

        GV-RS036 Recording Server (GV & 3rd Party) - 36 CH

        Geovision
        SKU: 55-RS036-000
        • $0.00

        In stock(1000 items available)
        OR

        ORDERING NUMBER:     220-RS036-000
        SKU:     55-RS036-000
        UPC:    4717095105102

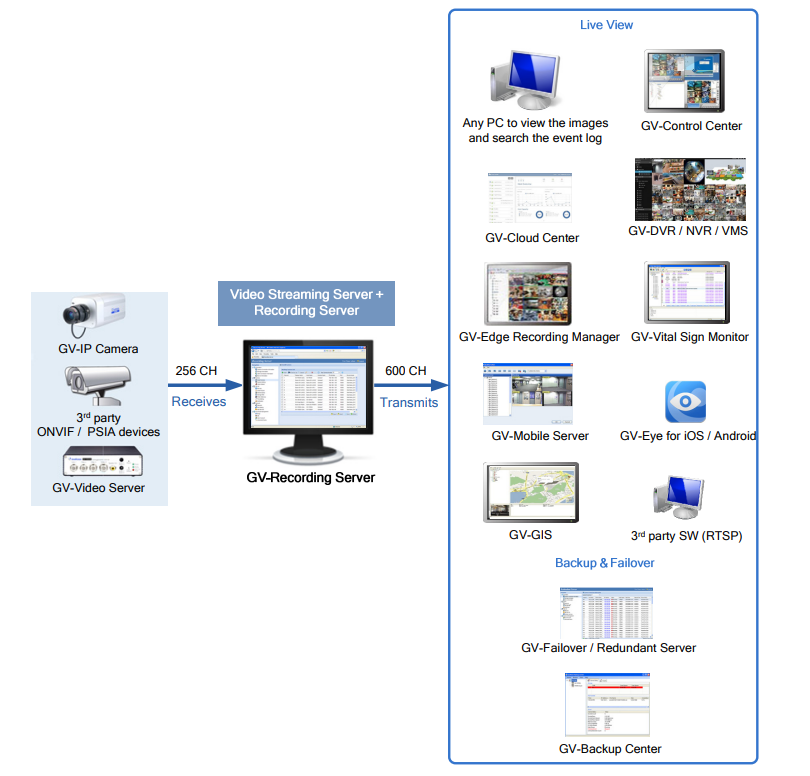

        The GV-Recording Server is a video streaming server designed for large-scale surveillance deployments. It can record up to 256 channels from various IP video sources. Each IP camera can be programmed to record video constantly, upon motion detection, upon I/O trigger or on a schedule, through its intuitive Web interfaces.


        It can also simultaneously distribute up to 600 channels to a variety of GeoVision software, including GV-VMS, GV-NVR, GV-Control Center, GV-Edge Recording Manager and others. The desired frame rates can be achieved while the CPU load and the bandwidth usage of IP video devices are greatly reduced when using GV-Recording Server.


        Features:


        • Recording: Up to 256 IP channels recording and up to 600 IP channels distributing
        • Video Gateway: Video gateway between IP devices and receiving clients (GV-VMS, GV-NVR, GV-Control Center, GV-Edge Recording Manager, GV-Eye and others)
        • Third-Party Device Support: Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision), and ONVIF, PSIA and RTSP protocols
        • Recording Policies: Different recording policies for each channel to record continuously, upon motion detection, upon I/O trigger or by schedule (recording upon I/O trigger is only for GV-IP devices)
        • Video Playback: Video playback using Remote ViewLog
        • Web Interface: Web interface to remotely configure and monitor GV-Recording Server using Internet Explorer, Firefox, Google Chrome and Safari
        • Connection Methods: Passive and active connection methods with IP video devices (Passive connection only for up to 128 channels and only supported by GV-IP devices)
        • Mobile DVR Solution: Solution for Mobile DVR (GV-Video Server, GV-Compact DVR) to obtain a public IP address
        • Bandwidth Monitoring: Bandwidth monitoring
        • Two-Way Audio: Two-way audio communication (only for GV-IP devices through active connection)
        • Remote Event Monitoring: Remote event monitoring through GV-Vital Sign Monitor
        • Remote Backup: Remote backup through GV-Backup Center, GV-Failover Server or GV-Redundant Server
        • IP Device Monitoring: IP device monitoring, event search and remote playback through GV-Cloud Center
        • Smart Streaming: Smart streaming
        • Live Streaming: Live streaming of GV-IP cameras on YouTube
        • Language Support: Support for 31 languages


        Minimum System Requirements:


        • OS: 64-bit Windows 7/8/8.1/10/Server 2008 R2/Sever 2012R2
        • CPU: Core i7 8700, 3.2 GHz
        • Memory: 16 GB Dual Channels
        • Hard Disk: 1 GB (installation), 32 GB (OS)
        • Browser: Internet Explorer 8 to 11, Firefox 26.0, Google Chrome 31.0.1650.63, Safari 5.1.7
        • LAN: Gigabit Ethernet X 1~6
        • Software: .Net Framework 3.5
        • Hardware: Internal or External GV-USB Dongle


        Compatible GV-Software:


        • GV-Backup Center: version 1.1.2 or later
        • GV-Cloud Center: version 1.0 or later
        • GV-Control Center: version 3.7.0 or later (V3.6.0 or earlier only support 128 CH)
        • GV-DVR / NVR, Multi View, Multicast: version 8.5.6 or later (for 64 CH)
        • GV-Edge Recording Manager for Windows: version 2.0 (V1.0.0 or earlier only support 128 CH)
        • GV-Edge Recording Manager for Mac: version 1.2.0 (V1.0.0 or earlier only support 128 CH)
        • GV-Eye: version 2.7.4 or later (V2.7.3 or earlier only support 128 CH)
        • GV-GIS: version 3.1.1 or later
        • GV-Mobile Server: version 1.3 or later (for 64 CH)
        • GV-Redundant Server & Failover Server: version 2.0 [coming soon] (V1.1.0.0 or earlier only support 128 CH)
        • GV-Vital Sign Monitor: version 8.5.9 or later (for 128 CH)
        • GV-VMS: version 14.10 or later (for 64 CH)


        Recommended Hard Disk Requirements:


        The recommended hard disk requirements for 24 hours of recording are listed as below.


        ResolutionBitrateFrame rateCodecMax. channel per HDD and required HDD sizeRequired HDD size (recording 256 CH, 24 hrs)Recommended HDD Requirements
        1.3 MP0.83 Mbps30fpsH.26532 CH/280GB2.3 TB1 TB 7200 RPM HDD X 8
        2 MP1.6 Mbps

        		32 CH/540 GB4.4 TB
        3 MP2 Mbps

        		32 CH / 693 GB5.6 TB
        4 MP2.21 Mbps20fps
        		22 CH / 747 GB9 TB1 TB 7200 RPM HDD x 12
        5 MP2.41 Mbps

        		22 CH / 814 GB9.8 TB
        8 MP3.5 Mbps

        		22 CH / 1190 GB14.3 TB


        Recommended Network Requirements:


        The server's transmitting capacity varies depending on the number of Gigabit connections. The number of Gigabit network cards required to receive 256 channels and transmit 600 channels are listed below according to the resolution of the source video.


        ResolutionBitrateFrame rateCodecGigabit Network Cards Required
        Receiving 256 CHTransmitting 600 CH



        1.3 MP0.83 Mbps30fpsH.265Gigabit network card x 1 (up to 256 CH per card)Gigabit network card x 1 (up to 600 CH per card)
        2 MP1.6 Mbps


        		Gigabit network card x 2 (up to 300 CH per card)
        3 MP2 Mbps



        4 MP2.21 Mbps20fps
        		Gigabit network card x 2 (up to 128 CH per card)Gigabit network card x 3 (up to 200 CH per card)
        5 MP2.41 Mbps



        8 MP3.5 Mbps




        Compatible Standard and Protocol:


        GV-Recording Server can also be used with any other IP video device that supports the ONVIF, PSIA, or RTSP protocols.

        Please contact a Worldeyecam representative if you have any further questions or if you need a quotation.
          • SKU
            55-RS036-000
          • Weight
            1 lbs
          • Barcode
            4717095105102
          • Manufacturer Part #
            220-RS036-000
        • Manufacturer
          Geovision
