ORDERING NUMBER: 220-RS048-000
SKU: 55-RS048-000
UPC: 4717095105126
The GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. It can receive and record up to 128 channels from various IP video devices. Through an intuitive Web interface, each IP camera can be configured to record video continuously, upon motion detection, upon I/O trigger or according to a schedule.
In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.
**Features:**
* Video gateway between IP devices and receiving clients (GV-System, GV-Control Center and Multi View)
* Maximum video distribution for large IP channel counts (up to 128 IP channels) and receiving clients (up to 300 IP channels)
* Simultaneous recording up to 128 IP channels
* Different recording policies to set each channel to record continuously, upon motion detection, upon I/O trigger or by schedule (recording upon motion detection and I/O trigger are only for GV-IP devices)
* Video playback using Remote ViewLog
* Web interface to remotely configure and monitor GV-Recording Server using Internet Explorer, Firefox, Google Chrome and Safari
* Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision)
* Support for ONVIF, PSIA and RTSP protocols
* Passive and active connection methods with IP video devices (Passive connection only supported by GV-IP devices)
* Solution for Mobile DVR (GV-Video Server, GV-Compact DVR) to obtain a public IP address
* Bandwidth monitoring
* Two-way audio communication (only for GV-IP devices through active connection)
**Minimum System Requirements:**
* **OS:** 64bit Windows 7, Windows Server 2008
* **CPU:** Core i5 750, 2.67 GHz
* **Memory:** 4 GB Dual Channels (without recording) 6 GB Dual Channels (with recording)
* **Hard Disk:** 1 GB. (for installation)
* **Browser:** Internet Explorer 8.0.7600.16385 Internet Explorer 9.00.7930.16406 Firefox 3.6.13 Google Chrome 9.0.597.94 Safari 5.33.19.4
* **LAN:** Gigabit Ethernet X 1
* **Hardware:** Internal or External GV-USB Dongle
**Optimal System Requirements:**
* **OS:** 64bit Windows 7, Windows Server 2008
* **CPU:** Core i7 920, 2.67 GHz
* **Memory:** 6 GB Dual Channels (without recording) 8 GB Dual Channels (with recording)
* **Hard Disk:** 1GB.(for installation)
* **Browser:** Internet Explorer 8.0.7600.16385 Internet Explorer 9.00.7930.16406 Firefox 3.6.13 Google Chrome 9.0.597.94 Safari 5.33.19.4
* **LAN:** Gigabit Ethernet X 6
* **Hardware:** Internal or External GV-USB Dongle
**Recommended Hard Disk Requirements:**
The recommended hard disk requirements for 24 hours of recording are listed as below.
| Resolution | Frame rate | Codec | Max. Channel per HDD and Required HDD Capacity | HDD Capacity Required for 24 hr Recording of 128 ch | Recommended HDD Requirements |
|---|---|---|---|---|---|
| 1.3M | 30fps | H.264/MPEG4 | 32 ch/2.5TB | 10 TB | 3 TB 7200RPM HDD X 4 (SATA3) |
| | | JPEG | 8ch/2.7TB | 43.2 TB | 3 TB 7200RPM HDD x 16 (SATA3) |
| 2.0M | 30fps | H.264 | 21 ch / 2.2 TB | 13.5 TB | 3 TB 7200RPM HDD x7 (SATA3) |
| | | JPEG | 5 ch / 2.5 TB | 64 TB | 3 TB 7200RPM HDD x 26 (SATA3) |
| 3.0M | 20fps | H.264 | 32 ch/3TB | 12 TB | 3 TB 7200RPM HDD x 4 (SATA3) |
| | | JPEG | 4ch/2TB | 64 TB | 3 TB 7200RPM HDD x 32 (SATA3) |
**Network Requirements:**
The server's transmitting capacity varies depending on the number of Gigabit connections:
* One (1) Gigabit connection: Transmits up to 75 channels with the image settings of 1280 x 1024, 30 fps and JPEG codec for each channel.
* Two (2) Gigabit connections: Transmit up to 150 channels with the image settings of 1280 x 1024, 30 fps and JPEG codec for each channel.
* Three (3) Gigabit connections: Transmit up to 225 channels with the image settings of 1280 x 1024, 30 fps and JPEG codec for each channel.
* Four (4) Gigabit connections: Transmit up to 300 channels with the image settings of 1280 x 1024, 30 fps and JPEG codec for each channel.
**Specifications:**
| Feature | Device |
|---|---|
| Number of IP Video Device Connections | 128 channels |
| Number of Remote Client Connections | 300 channels |
| Active Connections | Yes |
| Passive Connections | Yes (only for GV IP devices) |
| 3rd Party IP Cameras Support | Yes |
| Live Viewing | Single live view, multi-channel live view |
| Recording | Yes (up to 128 channels) |
| Protocol | HTTP, HTTPS, TCP, UDP, SMTP, UPnP, DynDNS, RTSP, PSIA, ONVIF |
| E-Mail Notification | Yes (for Active connection lost, passive connection lost, USB protection key removed, recycling of recorded video, start keep days operation, motion detection, disk full, disk error, I/O trigger) |
| SMS Notification | No |
| 2-Way Audio | Yes (only for GV-IP devices through active connection) |
| GPS support | Yes (only for GV-IP cameras) |
| Number of Accounts | Up to 1000 accounts |
| Mobile Phone Support | No |
| Bandwidth Control | No |
| IE Live View | Yes (up to 32 channels) |
| IE Event Query | Yes |
| IE I/O Control | No |

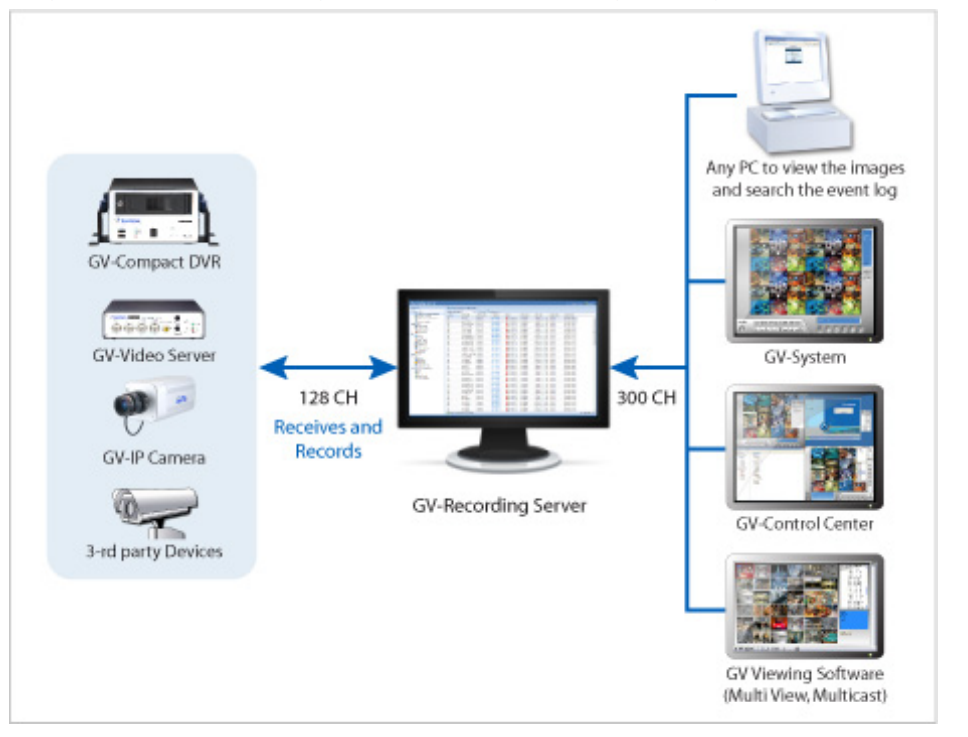

The deployment of Gigabit connections for transmitting and receiving is suggested as illustrated below. Ensure to run every Gigabit connection on a different network in order to reduce the lag on any network connection.
Please contact a Worldeyecam representative if you have any further questions or if you need a quotation.
55-RS048-000.pdf202.9 kB
