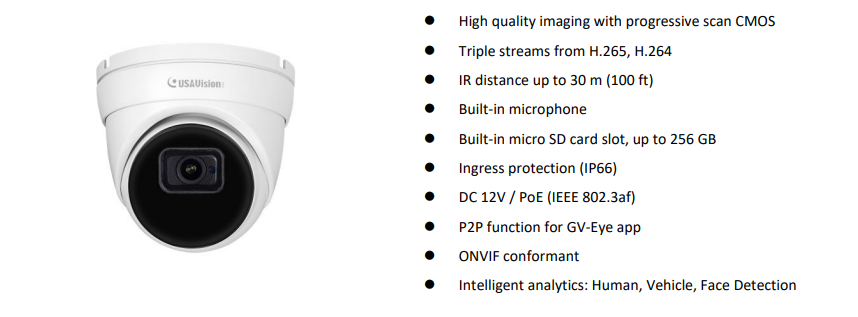

Geovision UA-R800F2 8MP Outdoor Network Turret Camera with Night Vision
GEOVISION UA-R800F2 Overview
Monitor an indoor or outdoor area with the white UA-R800F2 8MP Network Turret Camera from GEOVISION. This unit uses a 1/2.7" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 20 fps. Two IR LEDs provide a night vision range up to 100'. The camera features a 2.8mm fixed lens that provides a 110° horizontal field of view, a built-in microphone to pick up audio, and a memory card slot that supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power over one cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated metal enclosure that is suitable for safe outdoor use.
Compatible with UA-SNVRL810-P/UA-SNVR1620-P NVRs
IR cut filter for day and night functionality
H.265 and H.264 video compressions
Unicast and multicast streaming
CBR and VBR
Triple streaming
Three-axis angle adjustment (0 to 360° horizontal pivot, 0 to 80° vertical pivot, and 0 to 360° rotation)
Flip and mirror perspectives
WDR Pro
36 dB S/N ratio
Backlight compensation
Automatic gain control
Privacy masking for 4 rectangular zones
Image settings include; hue, brightness, contrast, saturation, sharpness, IR cut mode, IR cut delay, IR LED, low beam light, angle trad, mirror, backlight, white balance, shutter, time exposure, defog, and 3D-DNR
Analytics include; motion detection, line crossing detection, perimeter intrusion detection, stationary object detection, human and vehicle detection, cross counting, queue length detection, crowd density detection, heat map statistics, face detection, and rare sound detection
100M RJ45 Ethernet port
Built-in microphone
Hardware reset
Supported web browsers include Internet Explorer 10 and 11, Safari 12.1 or later, Firefox 52 or later, Chrome 57 or later, and Edge 79 or later
Firmware upgrade via web browser or utility
FCC and RoHS certified
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The Geovision UA-R800F2 is a high-performance network turret camera designed for outdoor surveillance applications. It features an 8-megapixel progressive scan CMOS sensor, which allows for high-quality video with exceptional detail and clarity.
The UA-R800F2 also includes advanced night vision capabilities, with IR illumination for up to 50 meters, providing clear and detailed surveillance coverage even in complete darkness. The camera is also equipped with a varifocal lens, allowing for customized focal length settings and adjustable viewing angles.
In addition to its imaging capabilities, the UA-R800F2 is also designed to withstand harsh outdoor environments, with an IP67 weatherproof rating and IK10 vandal-resistant rating. The camera is also ONVIF-compliant, ensuring compatibility with a wide range of surveillance software and devices.
The UA-R800F2 also features advanced security features such as a tampering alarms, motion detection, and privacy mask, allowing for customized security configurations. The camera also supports various video analytics functions, such as face detection and people counting, enabling advanced surveillance and data analysis.
Overall, the Geovision UA-R800F2 is a highly capable and advanced network turret camera that is well-suited for outdoor surveillance applications. Its exceptional imaging capabilities, advanced night vision, and rugged design make it a versatile and reliable choice for a variety of surveillance needs.
- Compatible with UA-SNVRL810-P/UA-SNVR1620-P NVRs
- IR cut filter for day and night functionality
- H.265 and H.264 video compressions
- Unicast and multicast streaming
- CBR and VBR
- Triple streaming
- Three-axis angle adjustment (0 to 360° horizontal pivot, 0 to 80° vertical pivot, and 0 to 360° rotation)
- Flip and mirror perspectives
- WDR Pro
- 36 dB S/N ratio
- Backlight compensation
- Automatic gain control
- Privacy masking for 4 rectangular zones
- Image settings include; hue, brightness, contrast, saturation, sharpness, IR cut mode, IR cut delay, IR LED, low beam light, angle trad, mirror, backlight, white balance, shutter, time exposure, defog, and 3D-DNR
- Analytics include; motion detection, line crossing detection, perimeter intrusion detection, stationary object detection, human and vehicle detection, cross counting, queue length detection, crowd density detection, heat map statistics, face detection, and rare sound detection
- 100M RJ45 Ethernet port
- Built-in microphone
- Hardware reset
- Supported web browsers include Internet Explorer 10 and 11, Safari 12.1 or later, Firefox 52 or later, Chrome 57 or later, and Edge 79 or later
- Firmware upgrade via web browser or utility
- FCC and RoHS certified
In the Box
- GEOVISION UA-R800F2 8MP Outdoor Network Turret Camera with Night Vision
- Waterproof Rubber Set
- Screw Kit
- Drill Template Paster
- Limited 1-Year Warranty
UAR800F2.pdf249.4 kB
- ManufacturerGeovision
- Camera TypeEyeball Dome
- Camera SignalIP
- Lens Size2.8mm
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
