Kinect Xtion Pro Live 3D camera In ceiling Mount 140-KINEC-ICM
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Counts the number of people (In and Out)
- Support for HDMI and VGA compatible monitors
- IR remote control to configure on-screen display (OSD) menu
- GV-Web Report Lite: Web interface to look up people counting data and charts
- Support for data compiling and chart analysis on GV-Web Report
- Audio alarm for traffic in wrong direction and exceeding maximum entries, exits or stays
- Content Designer to customize layout on display monitor
- SDHC card supported
- GPS positioning (optional GV-GPS Reciever and GV-Web Report software required)
| Introduction |
| The GV-3D People Counter integrates Asus Xtion Pro to count and analyze the number of people passing by the designated detection area. You can connect the GV-3D People Counter with a VGA or HDMI monitor for direct display of counting data and configuring device settings through on-screen display (OSD) menu. GV-3D People Counter comes with a built-in Web interface, the GV-Web Report Lite, for easy setup and looking up people counting data. |
GV-3D People Counter - Front View
GV-3D People Counter - Rear View

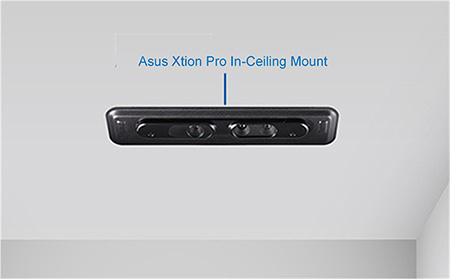

In-Ceiling Mount
Ceiling Mount
Door Frame Mount
Software Download & UpgradingVersion History| Item No. (Sales Part No.) | Description |
|---|---|
| 140-3DPBX-000 | GV-3D People Counter AU |
| 140-3DPBX-000 | GV-3D People Counter EU |
| 140-3DPBX-000 | GV-3D People Counter JP |
| 140-3DPBX-000 | GV-3D People Counter US |
| 140-KINEC-ICM | Asus Xtion Pro In-Ceiling Mount |
| 140-KINEC-WMO | Asus Xtion Pro Wall Mount |
| 140-GPUSB-001 | GV-GPS USB for GV-3D People Counter |
| Name | Details |
| Wall Mount Kit | The Wall Mount Kit is used to mount the GV-3D People Counter to the wall. • L-type brackets x 2 • Small screws x 4 |
| VESA monitor mount kit | The VESA Monitor Mount Kit is used to mount the GV-3D People Counter to the back of a VESA monitor. • VESA monitor mount bracket x 1 • L-type brackets x 2 • Large screws x 4 • Small screws x 8 |
| Asus Xtion Pro | The Asus Xtion Pro is a motion sensor used to detect the number of people who have walked through the detection area. The operating temperature is from 0°C ~ 40°C / 40°F ~ 104°F. |
| USB Extension Cable | The 1.8 meters (5.9 feet) USB extension cable can extend the distance between the Asus Xtion Pro / Asus Xtion Pro Live and the GV-3D People Counter. * You can connect multiple USB extension cables, but the total distance cannot exceed 5 meters (16.4 feet). |
| GV-GPS Receiver | Receive the GPS signals for 3D People Counter positioning. |
| GV-Web Report | Through a Web browser, the GV-Web Report keeps track of and analyzes the people counting results and shows the latitude and longitude from up to 1000 units of GV-3D People Counters. Compatible version: For GPS funtion, V2.2.6.0 or later. For the others, V2.2.3.0 or later. |
| Name | Details |
| Asus Xtion Pro In-Ceiling Mount | The In-Ceiling Mount is used to mount Asus Xtion Pro on the ceiling. • Cover for in-ceiling mount x 1 • Magnet x 2 • Support bracket x 2 • Black long screw x 2 • Screw nut x 2 |
| Asus Xtion Pro Wall Mount | The Wall Mount is used for mounting Asus Xtion Pro on the ceiling or on a door frame. The length and angle of the mount can be adjusted to suit the installation site. The length is adjustable from 188 ~ 290 mm (7.40 ~ 11.42 in). • Adjustable bracket x 1 • Black long screw x 2 • Screw nut x 2 |
| Video Output | HDMI | 480p, 720p, 1080i, 1080p |
| VGA | 640 x 480, 1024 x 768, 1280 x 768, 1366 x 768 | |
| Audio | 3.5 mm Jack (for alarm) | |
| IR Remote Control | Yes | |
| Local Storage | SDHC card slot (4-32 G, Class 4 or above, FAT32 format) | |
| Ethernet | 10/100 Ethernet | |
| Power Adapter | 12V / 3A DC Jack (Max. 36 W) | |
| Supported Browser | Mozilla Firefox, Google Chrome | |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F ) | |
| Operating Humidity | 20 % ~ 80 % (with no condensation) | |
| Weather Resistance | Indoor use only | |
| Dimensions (W x H x D) | 182.3 × 28.9 × 131 mm (7.18 × 1.14 × 5.16 in) | |
| Net Weight | 615 g (1.36 lb) | |
| Regulatory | CE, FCC compliant | |
| Language | On-Screen Display | English |
| Web Interface | English, Traditional Chinese, Simplified Chinese | |
| Asus Xtion Pro | GV-Web Report | |
| GV-3D People Counter V1.01 | V5.3.26 and V5.7.9 | V2.2.3.0 or later |
| GV-3D People Counter V1.02 | V5.7.9 and V5.8.22 | V2.2.3.0 or later |
| GV-3D People Counter V1.03 | V5.7.9 and V5.8.22 | V2.2.6.0 or later |
| Max. Power Consumption | 2.5 W | |
| Operating Distance | 0.6 – 5 m (1.97 – 16.40 in) | |
| Operating Environment | Indoor | |
| Operating Temperature | 0°C ~ 40°C / 40°F ~ 104°F | |
| Angle of View | Diagonal | 70° |
| Horizontal | 58° | |
| Vertical | 45° | |
| Interface | USB 2.0 | |
- ManufacturerGeovision
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
