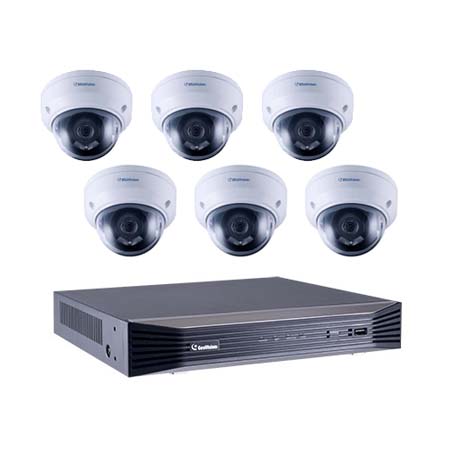

Geovision Line 8 Channel at 4K (2160p) NVR Kit 48Mbps Max Throughput - 2TB w/ Built-in 8 Port PoE and 6 x 4MP 2.8mm Outdoor IR Vandal Dome IP Security Cameras

GV-SNVR0812 is a standalone network video recorder with Linux embedded that records video files directly to the internal hard drive and supports up to 8 IP camera channels for video surveillance. GV-SNVR0812 has built in PoE+ (IEEE 802.3at) ports that simultaneously provide network and power to IP cameras. Thanks to its up to 4K resolution video output, GV-SNVR0812 eliminates the need of a separate PC to view and play back video from the unit. It has USB ports that can be used to import or export system settings, update firmware, store snapshot files and back up videos.

88-SNVR812-2TB Specifications

Hardware

System

• OS - Embedded Linux
• No. of Drive Bay - 1 (3.5" HDD) up to 10 TB
• Power Source - Input : AC 100 ~ 240V, 50 ~ 60 Hz, Output : DC 52V, 1.8A, Max. 100W, PoE: Max. 100W
• Connectors
  • Megabit Ethernet - 1 port for WAN, RJ‐45 10/100 Mbps, 8 ports for LAN, RJ‐45 10/100 Mbps, PoE+ (IEEE 802.3at)
  • Video Output - 4K (HDMI) / 1080p (HDMI / VGA)
  • Audio - 1‐Ch, RCA (2.0 Vp‐p, 1 k Ω)
  • USB 2.0 - Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2
  • I/O - 4 Inputs, 1 Output
• LED Indicator
  • NVR - 4 LEDs: Power, Network, HDD Fail, HDD Activity
  • PoE - 8 LEDs for each port
• Operating Temperature - 0°C ~ 50°C (32°F ~ 122°F)
• Humidity - 0% ~ 90% RH (non‐condensing)
• Dimensions (L x W x H) - 260 x 240 x 44 mm (10.24 x 9.45 x 1.73")
• Net Weight - 1.12 kg (2.47 lb)
• Regulatory - FCC, CE, BSMI, LVD, RoHS compliant

Software

Video and Audio

• Video Compression - H.264, H.265
• Video Stream - Dual streams from H.264, H265
• Video Output - 4K / 1080p (HDMI / VGA)
• Display Division - 1 / 4 / 6 / 8 / 9
• Audio Compression - G.711
• Audio Support - Yes
• Two‐Way Audio - Yes

Supported Video Resolution

• 4:3
  • Main Stream: 2592 x 1944, 2560 x 2048, 2560 x 1920, 2048 x 1536, 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
  • Sub stream: 1024 x 768, 960 x 720, 640 x 480, 320 x 240 - 640 x 480, 320 x 240 - 320 x 240
• 16 : 9 (Default)
  • Main Stream: 3840 x 2160, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
  • Sub Stream: 1280 x 720, 640 x 360, 448 x 252, 640 x 360, 448 x 252, 448 x 252
• 5:4
  • Main Stream: 1280 x 1024, 640 x 512, 320 x 256
  • Sub Stream: 1280 x 1024, 640 x 512, 320 x 256, 640 x 512, 320 x 256
• 20 : 19 (Fisheye Camera Only)
  • Main Stream: 2176 x 2048, 2048 x 1944, 1792 x 1696, 1440 x 1376, 1280 x 1200
  • Sub Stream: 640 x 608

Operation

• Recording Bandwidth - Max. 48 Mbps
• Recording Mode - Round the clock / Motion Detection / Schedule Recording / Alarm‐triggered Recording
• Pre Recording - 1 ~ 5 sec.
• Post Recording - 30 sec
• Instant Playback - 3 min
• Backup Type - USB flash drive of FAT32 format

Management

• Language - Czech / English / Finnish / French / German / Hungarian / Italian / Japanese / Portuguese / Russian / Slovakian / Slovenian / Spanish / Traditional Chinese
• Firmware upgrade - Upgrade through OSD or GV‐IP Device Utility

Network

• Network Type - LAN, WAN, Internet
• Protocol - DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP

System Monitoring and Recovery

• Power Restoration - Automatic restart after power outage
• Monitoring - Software Watchdog

Remote Monitoring

• Live View - Max. 18 channels connection
• Playback
  • PC-Based Software - Max. 16 channels connection
  • Mobile App - Max. 2 channels connection
• Monitoring Environment - IE browser, SNVR Viewer for non‐IE browsers, Mobile app
• Smart Device Access - GV‐Eye for iOS and Android
• Access from IE browser - Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ

UA-D40002F Specifications

Camera

• Image Sensor - 1/3", 4.0 megapixel, progressive scan, CMOS
• Lens - 2.8mm @ F2.0
• DORI DistanceLens: 2.8mm , Detect: 63m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m
• Angle of View - H: 104.4°, V: 54.4°, O: 135.7°
• Adjustment angle - Pan: 0° ~ 360°, Tilt: 0° ~ 75°
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination - Colour: 0.03Lux (F2.0, AGC ON), 0 Lux with IR on
• Digital noise reduction - 2D/3D DNR
• Day/Night - IR-cut filter with auto switch (ICR
• S/N - >52dB
• IR Range - Up to 30m (98ft) IR range
• Wavelength - 850nm
• IR On/Off Control - Auto/Manual
• Defog - Digital Defog
• WDR - DWDR

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 code profile - Baseline profile, Main Profile
• Frame Rate - Main Stream: 20fps @ 4MP (2592x1520), Sub Stream: 20fps @ 720p (1280x720), Third Stream: 20fps @ D1 (704x576)
• Video Bit Rate - 128Kbps~16Mbps
• OSD - Up to 4 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Up to 2 areas
• Motion Detection - Up to 4 areas


• White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal/Vertical/Horizontal/180°
• Dewarping - NA
• HLC - Supported
• BLC - Supported

Network

• Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
• Compatible Integration - ONVIF (Profile S), API
• Client - UA Station, UA View
• Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Network - 1 RJ45 100M Base-TX Ethernet

Certifications

• Certifications - CE/FCC

General

• Power - DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 4W
• Dimensions (Ø x H) - Φ108.7 x 81.1 mm (Ø 4.3” x 3.2”)
• Net Weight - 0.45kg (0.99lb)
• Material - Metal + Plastic
• Working Environment - -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment - -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection - 2KV
• Ingress Protection - IP67
• Vandal Resistant - IK10
