GV-POE0410-E 4 port 802.3at Arctic 140-POE0410-E00
SKU: 84-POE0410-E010- GV-POE0410-E x 1
- GV-POE0410-E Quick Start Guide x 1
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- 4-port PoE+ 10/100/1000BaseT(X), 1 Gigabit SFP
- IEEE 802.3at Compliant (4 Ports at Full 30W)
- Max. 130 W power consumption
- Extreme temperature support (‐40°C ~ 70°C /‐40°F ~ 158°F)
- Auto-MDI/MDI-X
- Auto-Negotiation
- Alarm control
- DIN-Rail Installation
- Redundant DC power
- 6 kV surge protection
- Up to 4 GV-IP Cameras support
- GV-POE0410-E x 1
- GV-POE0410-E Quick Start Guide x 1
Introduction
The GV-POE0410-E is a 4-port PoE Switch with 4 PoE+ 10/100/1000BaseT(X) port and 1 Gigabit SFP. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and maximum 130 W power consumption per system. No special network cable is required for connecting your powered devices (PD), such as IP cameras. The GV-POE0410-E is featured with a redundant power supply for automatic power backup and supports alarms alerting for power and link failure. The switch is designed for small network environment to strengthen its network connection and efficiency.
Name | Details | |
GV-LC | The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m. | |
GV-LC10 | The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km. |
Ethernet | ||
Layer Supported | L2 | |
Ports | ||
Number of Ports | 5 ports, including: 4 PoE 10/100/1000 BaseT(X) RJ 45 port 1 Gigabit SFP | |
Performance | ||
MAC Address | 2 K | |
Buffer Memory | 1 Mbit | |
Jumbo Frames | 9 KB | |
Transmission Method | Store and Forward | |
Transmission Media | 10/100BaseT(X) Cat. 5 UTP/STP 1000BaseT Cat. 5e, 6 UTP/STP | |
Filtering/Forwarding Rates | 10 Mbps port - 14,880 pps 100 Mbps port - 148,800 pps 1000 Mbps port - 1,488,000 pps | |
Backplane Capacity | 10 Gbps | |
Mechanical Characteristics | ||
LED Indicators | Per Port, SFP, Power, Alarm | |
Alarm Control | 6 dip switches | |
Electrical Characteristics | ||
PoE Power | Input | 44 ~ 57 V/DC, 50 ~ 60 Hz |
Output | IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (4 Ports at Full 15.4 W / 4 Ports at Full 30 W) | |
PoE Power Supply Type | End-span | 2, 4 ports |
Mid-span | 1, 3 ports | |
Max. Power Consumption | 130 W | |
Alarm Output | 1 relay output, 1A, 24 V/DC | |
Redundant DC Power | Yes | |
General | ||

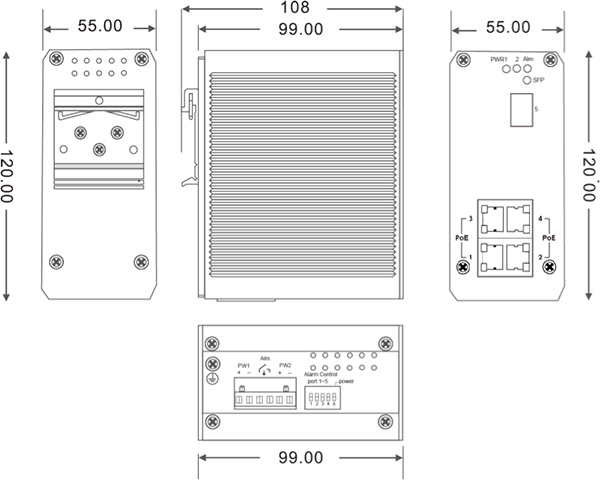

Dimensions (H x W x D) | 120 x 55 x 108 mm (4.72” x 2.16” x 4.25”) | |
Weight | 0.7 kg (1.54 lb) | |
Operating Temperature | -40°C ~ 70°C (-40°F ~ 158°F) | |
Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) | |
Humidity | 0 to 95% RH (non-condensing) | |
Standards and Regulatory | ||
Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE802.3x flow control, back pressure flow control IEEE 802.3af/at IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Regulatory | CE, FCC Class A IEC61000-4-5 (Surge) Lv.5: Line to Line 4kV, Line to Ground 6kV at DC-In and Line to Ground 6kV at RJ-45 ports |
- ManufacturerGeovision
- Recorder TypeNVR (with POE Ports)
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
