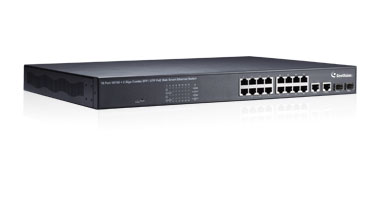

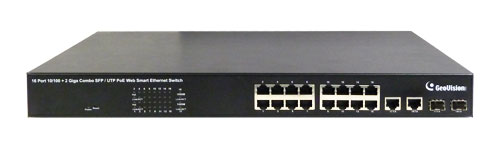

GV-POE1601 16 port 250W 802.3at 2-Port Gigabit Copper/SFP Combo Uplink 140-POE1601-G02

        GV-POE1601 16 port 250W 802.3at 2-Port Gigabit Copper/SFP Combo Uplink 140-POE1601-G02

        Geovision
        SKU: 84-POE1601-001U
        • 16-Port 10/100BaseTX, PoE+ plus 2-Port Gigabit Copper/SFP Combo Uplink Port
        • IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
        • Web-based Configuration and Management
        • VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, Bandwidth Control, Storm Control
        • Max. 250 W power consumption
        • 19" Rack mount
        • Up to 16 GV-IP Cameras support
          • 23% less
          Market price:$488.00 save $113.00
        • $375.00

        OR

        Camera packaging contents:



        1. GV-POE1601 x 1
        2. Screw x 8
        3. Rack Mount Kit x 1
        4. AC Power Cord x 1
        5. Software CD x 1
        6. GV-POE1601 Quick Start Guide x 1
        • 16-Port 10/100BaseTX, PoE+ plus 2-Port Gigabit Copper/SFP Combo Uplink Port
        • IEEE 802.3at Compliant (16 Ports at Full 15.4 W)
        • Web-based Configuration and Management
        • VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, Bandwidth Control, Storm Control
        • Max. 250 W power consumption
        • 19" Rack mount
        • Up to 16 GV-IP Cameras support

        Introduction
        The GV-POE1601 is a 16-port 10/100BaseTX with RJ-45 Connectors, PoE+ plus 2-port Gigabit Copper/SFP Combo Uplink Port Rack-mount Web Smart PoE Switch. The switch supports IEEE 802.3at Power over Ethernet standard, up to 30 W per port and maximum 250 W power consumption per system, and no special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch also provides exceptionally smart Web management features, such as VLAN, QoS, RSTP, IGMP Snooping, LACP, Port Security, etc. The switch is designed for medium or large network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in a 19" cabinet with a rack-mount kit or underneath a desk.













        Firmware





        Version History



        POE_Comparison.pdf

        Datasheet_POE1601.pdf





        Item No. (Sales Part No.)Description
        140-POE1601-000GV-POE1601 16-Port 250W 802.3at Gigabit Uplink



        NameDetails
        GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m.
        GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km.



        Ethernet
        Layer SupportedL2
        Ports
        Number of Ports18 ports 16-port 10/100BaseTX with RJ-45 Connectors, PoE+ 2-port Gigabit Copper/SFP Combo Uplink Port
        Performance
        MAC Address4 K
        Buffer Memory2.75 M bits
        Transmission MethodStore and Forward
        Transmission Media10/100BaseTX Cat. 5 UTP/STP 1000BaseT Cat. 5e, 6 UTP/STP
        Filtering/Forwarding Rates10 Mbps port - 14,880 pps 100 Mbps port - 148,800 pps 1000 Mbps port - 1,488,000 pps
        Backplane Capacity7.2 Gbps
        Smart Features
        Port Based VLAN18
        Tagged Based VLAN32, VID = 1~4094
        IGMP SnoopingV1 & V2
        Link Aggregation1, Gigabit ports
        Quality of Service (QoS)High & Low priority queues, 802.1p
        SecurityPort & MAC binding, 3 MAC per port
        Port ManagementPort State, Speed/Duplex, Flow Control Configuration, Port Mirroring, Bandwidth Control, Broadcast Storm Control, PoE
        Administrator ManagementWeb Management, Password Protection, Configuration Backup/Restore, Firmware Upgrade
        Mechanical Characteristics
        LED IndicatorsPer Port: Link/Act PoE Act/Status Power
        Electrical Characteristics
        PoE PowerInput100 ~ 240 V/AC, 50 ~ 60 Hz
        OutputIEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (16 Ports at Full 15.4 W / 8 Ports at Full 30 W)
        PoE Power Supply TypeEnd-Span
        Max. Power Consumption250 W
        General

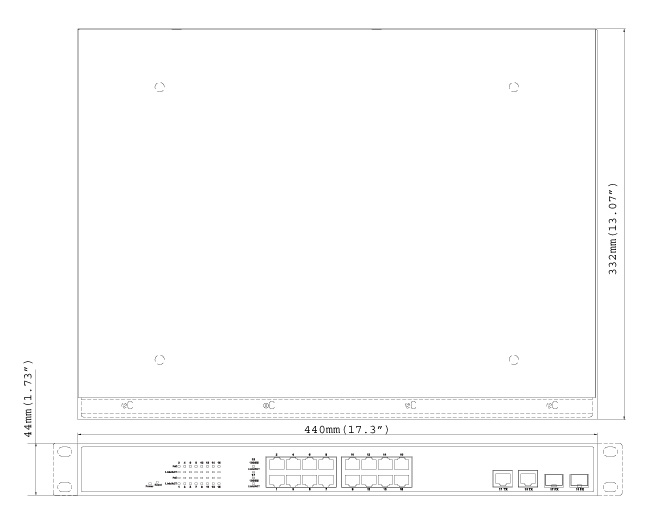

        Dimensions (H x W x D)44 x 440 x 332 mm (1.73" x 17.3" x 13.07")
        Weight4.2 kg (9.26 lb)
        Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
        Storage Temperature-20°C ~ 90°C (-4°F ~ 194°F)
        Humidity10 to 90% RH (non-condensing)
        Standards and Regulatory
        StandardsIEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z 1000BaseSX/LX IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3at Power Over Ethernet (PoE+)
        RegulatoryCE, FCC Class A



          • SKU
            84-POE1601-001U
          • Weight
            5 lbs
        • Manufacturer
          Geovision
        • Recorder Type
          NVR (with POE Ports)
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
