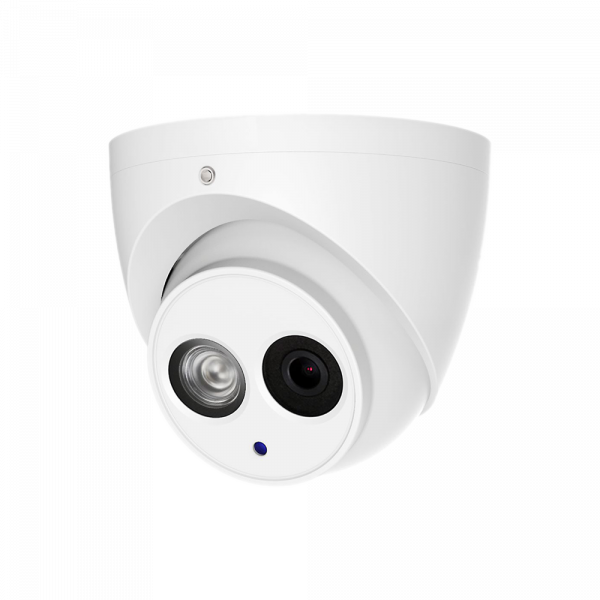

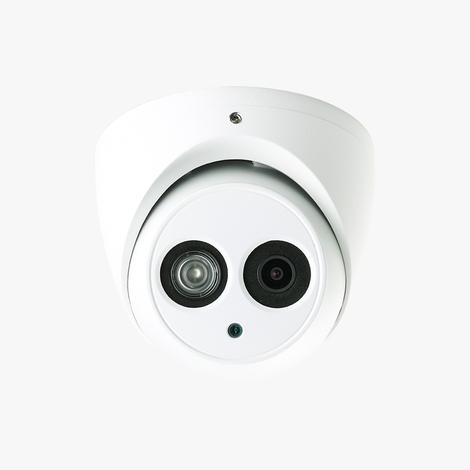

HCC3340EM-IR/28-P | 4MP HDCVI PoC IR Eyeball Camera
Features
- Max. 30fps@4MP
- HD and SD output switchable
- 3.6mm fixed lens (2.8mm, 6mm optional)
- Max. IR length 164ft (50m), Smart IR
- IP67, PoC/DC12V
| Image Sensor | 1/3" CMOS | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Size | 2688(H) x 1520(V) | |||||||||||||||
| Electronic Shutter | PAL: 1/25~1/100,000s; NTSC: 1/30~1/100,000s | |||||||||||||||
| Minimum Illumination | 0.03Lux/F1.9, 30IRE, 0Lux IR on | |||||||||||||||
| S/N Ratio | More then 65dB | |||||||||||||||
| IR LEDs | 1 | |||||||||||||||
| Smart IR | Support | |||||||||||||||
| IR Distance | 164ft (50m) | |||||||||||||||
| IR On/Off Control | Auto / Manual | |||||||||||||||
| Focal Length | 2.8mm | |||||||||||||||
| Angle of View | H: 99.7° | |||||||||||||||
| Max. Aperture | F1.9 | |||||||||||||||
| Optical Zoom | N/A | |||||||||||||||
| Close Focus Distance | 800mm (31.5") | |||||||||||||||
| DORI Distance |
| |||||||||||||||
| Pan / Tilt / Rotation | Pan: 0° ~ 360°; Tilt: 0° ~ 78°; Rotation: 0° ~360° | |||||||||||||||
| Video Compression | N/A | |||||||||||||||
| Video Resolution | 2560 x 1440 | |||||||||||||||
| Video Frame Rate | 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P | |||||||||||||||
| Day / Night | Auto (ICR) / Manual | |||||||||||||||
| BLC Mode | BLC / HLC / DWDR | |||||||||||||||
| White Balance | Auto / Manual | |||||||||||||||
| Gain Control | AGC | |||||||||||||||
| Digital Noise Reduction | 2D | |||||||||||||||
| Motion Detection | N/A | |||||||||||||||
| Audio Compression | N/A | |||||||||||||||
| Video Output | 1-channel BNC high definition video output / CVBS video output (switchable) | |||||||||||||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||||||||||||
| Audio Interface | N/A | |||||||||||||||
| RS485 | N/A | |||||||||||||||
| Alarm In | N/A | |||||||||||||||
| Alarm Out | N/A | |||||||||||||||
| Power Supply | POC / 12V DC ±25% | |||||||||||||||
| Power Consumption | Max. 4.6W (12V DC, IR on) | |||||||||||||||
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH; Start up should be done at above -40°C (-40°F) | |||||||||||||||
| Storage Temperature | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH | |||||||||||||||
| Ingress Protection | IP67 | |||||||||||||||
| Dimensions | ⌀106mm x 93.7mm (⌀4.17" x 3.69") | |||||||||||||||
| Weight | Net weight 0.43kg (0.95lb); Gross weight 0.56kg (1.23lb) |
