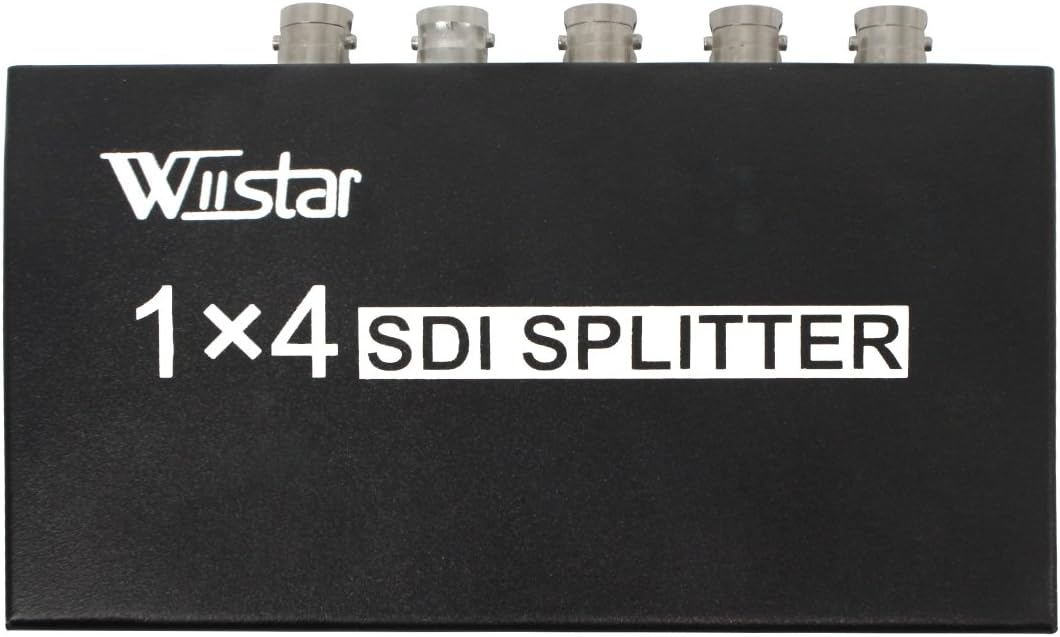

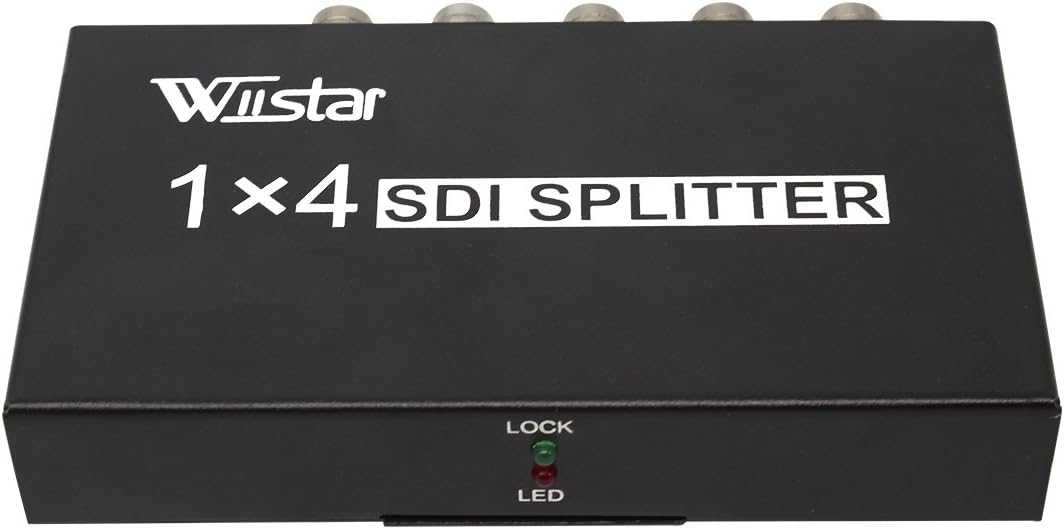

SDI 1x4 Splitter Black Amplifier Splitter 1 in to 4 Out SD-SDI HD-SDI 3G-SDI Repeater Extender

Worldeyecam
SKU: WEC-SDISPLITTER

About this item

  • Support SD-SDI(270Mbps), HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) and distribute to 4 simultanous SDI outputs

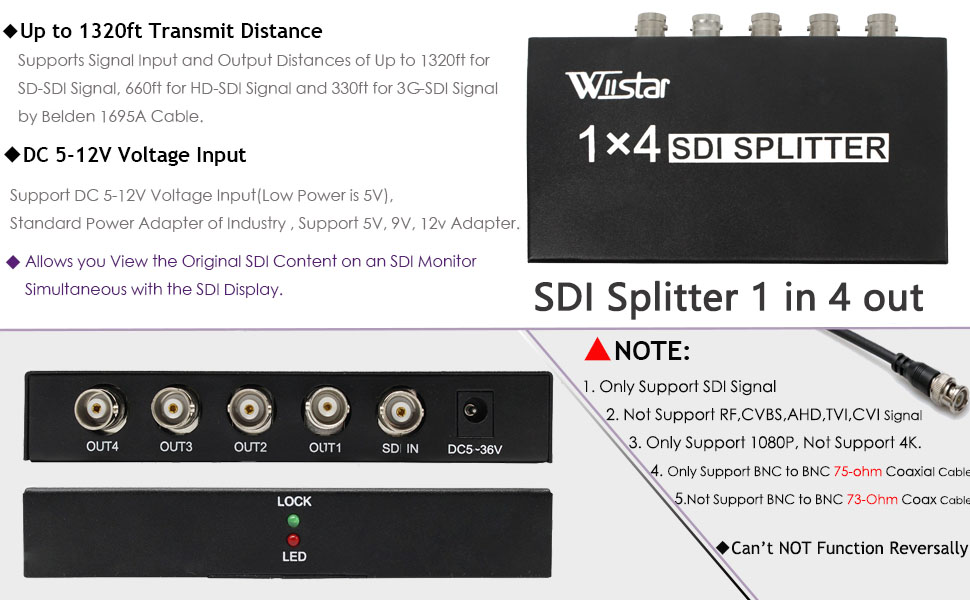

  • With SDI repeater function, providing equalized and re-cloked transmission,and supporting signal input and output distances of up to 1320 ft for SD-SDI signal, 660 ft for HD-SDI signal and 330 ft for 3G-SDI signal by Belden 1694A cable
  • Wide voltage design, can support DC 5V~30V voltage input (lowest power is 5V), more suitable for projects
  • Indicator LED turns blue when correct SDI signal is input, or turns red when no signal or incorrect signal is sent
  • Intelligent design, plug and play, can detect SDI signal automatically
  • $199.99

Only 10 left in stock
OR

Product Description:

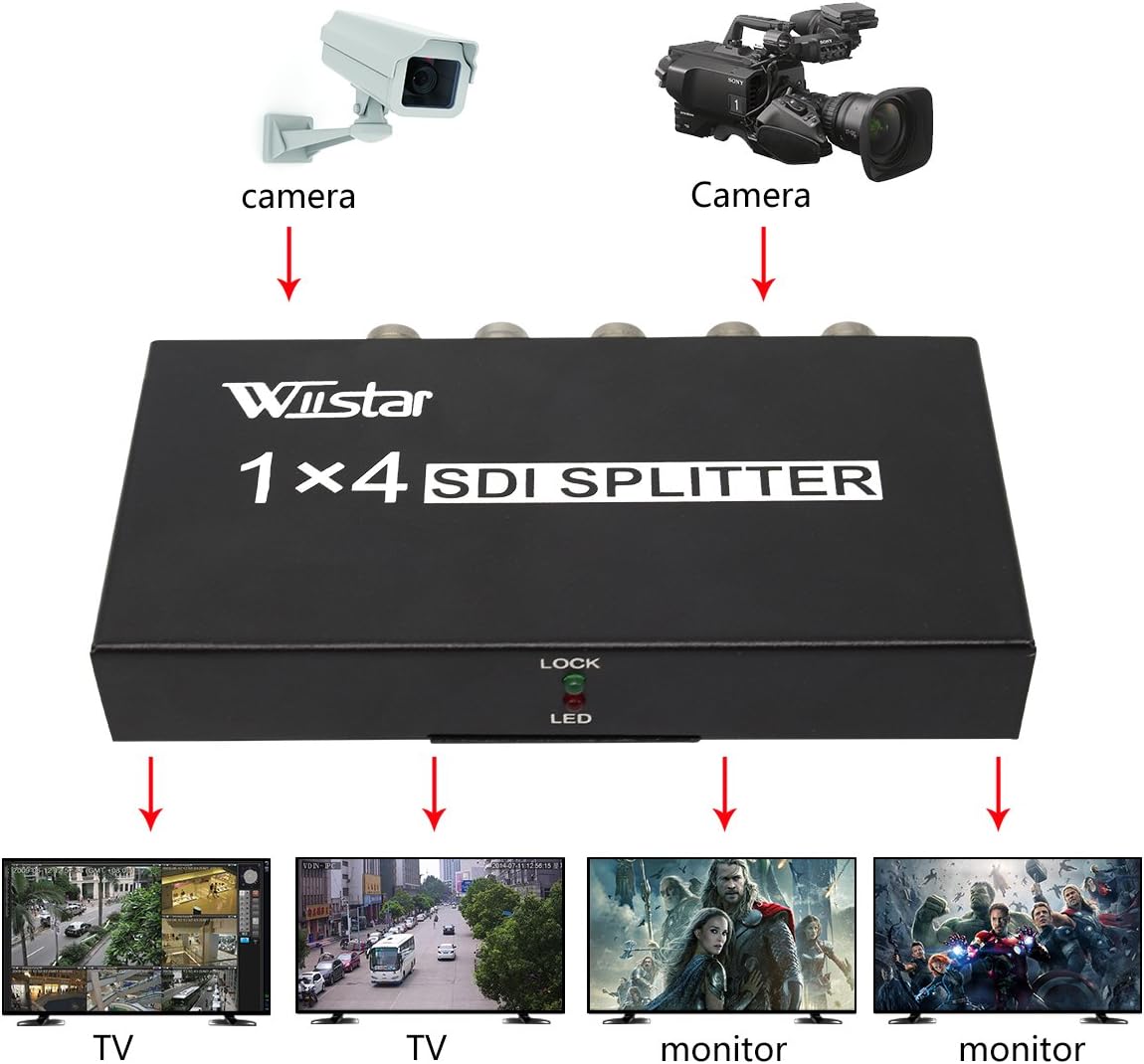

  • 1x4 SDI splitter distributes one SDI signal to 4 SDI outputs simultaneously.



  • It supports full range of SDI signal formats including 3G-SDI, HD-SDI, SD-SDI with easy operation and high reliability.



  • Using broadcast quality processing technology, it delivers high definition, lossless and lag-free distribution.



  • This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security system and training showroom etc.

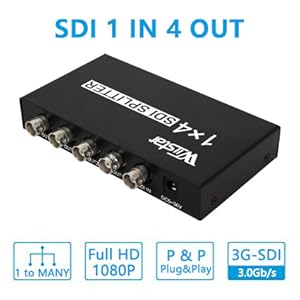

Support SD-SDI, HD-SDI and 3G-SDI and distribute to 4 simultanous SDI outputs
Intelligent design, plug and play, can detect SDI signal automatically

Specifications:

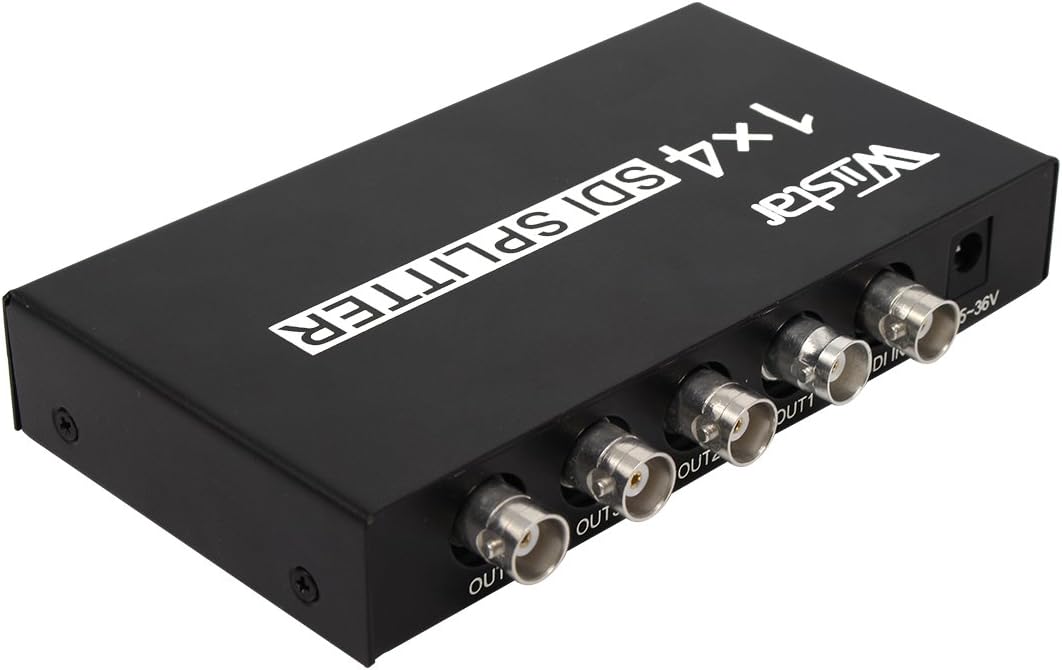

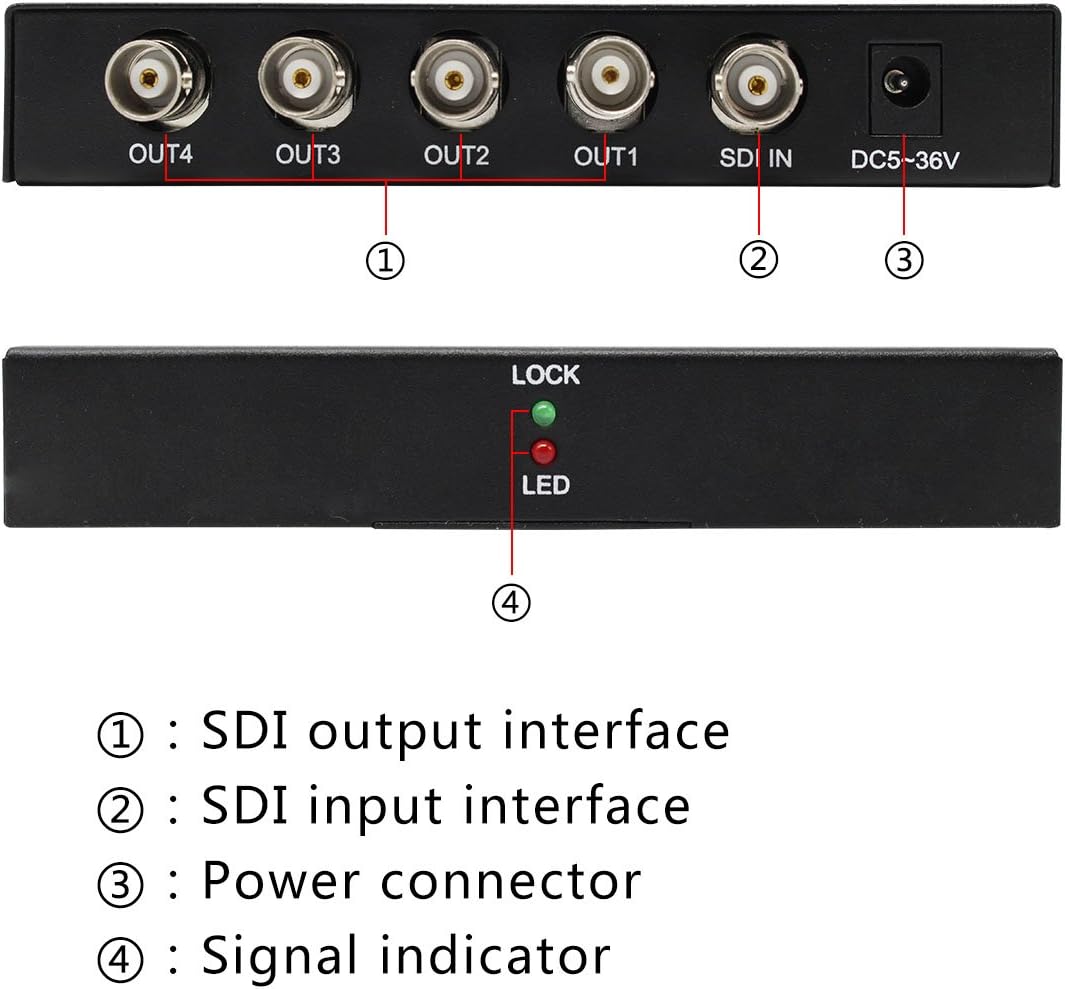

  • Input connector: 1 x SDI BNC (HD-SDI/SD-SDI/3G-SDI)



  • Output connector: 4 x SDI BNC (HD-SDI/SD-SDI/3G-SDI)



  • SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C



  • SDI speed rate: 270~2970MB/s



  • Supported cable length(BELDEN 1694A)

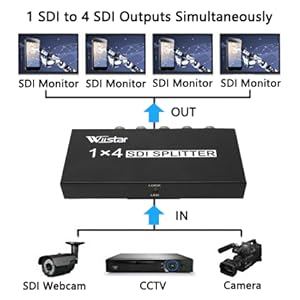

Wiistar 1x4 SDI splitter distributes one SDI signal to 4 simultaneous SDI outputs

Features:


  • SDI Input Resolution:


480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ


  • SDI Output Resolution:


480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ

    • SKU
      WEC-SDISPLITTER
    • Weight
      2 lbs
  • Manufacturer
    Worldeyecam
