4 HD-SDI IR Night Vision Dome Security Camera HD-SDI DVR System HDSDI-4CH-CD321V-LITE-KIT
- The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 4 HD-SDI IR Night Vision Dome Security Camera HD-SDI DVR System HDSDI-4CH-CD321V-LITE-KIT This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. Traditional CCTV camera systems were designed in a time when standard definition television was the only option to display the cameras. These days, when most people have upgraded to HDTVs, standard definition simply doesn't deliver the high-quality picture you've come to expect with your high definition television. Standard analog CCTV cameras max out at 700 TV Line resolution and the standard DVR can only display and record those cameras at D1 resolution (704x480). That is the maximum resolution that standard definition televisions can display and it's a big difference from what you get on a HDTV. four hd-sdi dome cameras. These HD-SDI indoor/outdoor dome cameras deliver a crisp, true HD 1080p image over standard coaxial cable with standard 12v DC power connections.. They feature 2.8-10mm varifocal lenses, which allow you to get either a nice wide angle or focus in on a distant object with perfect clarity.
- 100/120fps@1080P recording
- 4 channel HD-SDI (1080P/1080i/720P) video inputs
- 4 channel audio inputs & 4 channel loop outputs.
- Supports HDMI, VGA, eSATA, USB2.0 and 8 HDDs.
- 1920×1080, 1280 x 1024, 1280 x 720 and 1024 x 768 HDMI and/or VGA Output
- Auto Overwrite / Loop Recording
- Simultaneous multiple hi- res monitor output
- Network Sub-stream Capable
- New Central Monitoring System
- H.264 WITH Multi-Channel Simultaneous Playback
- E-Map Function Support
- Pentaplex operation
- Real Time Recording/Playback
- USB DVD/CD and Flash Drive Backup
- Mobile View (Supports Windows Mobile)
- Synced Audio Recording/Playback
- Intuitive GUI
- MAC Surveillance Software available - FREE DOWNLOAD
- 3 Year Warranty
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 4 HD-SDI IR Night Vision Dome Security Camera HD-SDI DVR System HDSDI-4CH-CD321V-LITE-KIT This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. Traditional CCTV camera systems were designed in a time when standard definition television was the only option to display the cameras. These days, when most people have upgraded to HDTVs, standard definition simply doesn't deliver the high-quality picture you've come to expect with your high definition television. Standard analog CCTV cameras max out at 700 TV Line resolution and the standard DVR can only display and record those cameras at D1 resolution (704x480). That is the maximum resolution that standard definition televisions can display and it's a big difference from what you get on a HDTV. four hd-sdi dome cameras. These HD-SDI indoor/outdoor dome cameras deliver a crisp, true HD 1080p image over standard coaxial cable with standard 12v DC power connections. They feature 2.8-10mm varifocal lenses, which allow you to get either a nice wide angle or focus in on a distant object with perfect clarity. The camera is featured by 1080p, 2.2 Megapixel. 1/3" Panasonic CMOS. 2.8 ~ 10mm Varifocal lens. Outdoor Dome Housing. S/N Ratio of More than 50dB. 3 Axis Rotation. 4CH WEC-V7010 HD-SDI DVR. The light-weight standalone HD-SDI DVR that's capable of delivering 1080p recording at 7.5fps on all channels or 15fps at 720p. It can hold one hard drive, and is compatible with PC, Mac, and Linux operating systems with remote view possible on most web browsers and mobile devices. The DVR is featured by H.264 Compression (Main Profile). 4 HD-SDI Video Input (1080p, 1080i or 720p). HD Real Time on live view. Max. 7 fps per Channel Recording. HDMI & VGA Output Full HD (Max. 1920 x 1080) Picture Quality : Utmost graphic, respectively comparing its picture size. Mobile Viewer : iPad / iPhone / Android / Blackberry. Dual Stream: Optimize network transfer speed. POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS · User Friendly GUI : Flexible, Easy and Convenient. Advanced CMS Software: Convenient and Versatile Software. S.M.A.R.T : Self Monitoring Analysis and Reporting Technology. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.
 |  |  |  |
 |  |  |  |
This four-channel HD-SDI kit includes a four-channel HD-SDI DVR is capable of recording cameras at full 1080p resolution at 7.5 fps on each channel. This gives you the highest picture quality possible with detailed recordings so you don't miss anything. The 1080P HD-SDI cameras run on standard RJ-59 coax to give you the smooth video you've experienced over the years with traditional CCTV cameras, but without any of the latency that's common with IP cameras. It's fully compatible with PC, Mac, and Linux and supports remote viewing on smartphones and tablets running either iOS or Android. This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. | |||
| |||
Traditional CCTV camera systems were designed in a time when standard definition television was the only option to display the cameras. These days, when most people have upgraded to HDTVs, standard definition simply doesn't deliver the high-quality picture you've come to expect with your high definition television. If you've upgraded to high-definition displays, shouldn't your cameras match that quality?
Standard analog CCTV cameras max out at 700 TV Line resolution and the stanard DVR can only display and record those cameras at D1 resolution (704x480). That is the maximum resolution that standard definition televisions can display and it's a big difference from what you get on a HDTV.
Here's a comparison of what you see with a standard definition DVR compared to a high definition HD-SDI DVR. | |||
| ANALOG CCTV (704x480): | |||
| ***CLICK FOR FULL RESOLUTION*** | |||
 | |||
| HD-SDI (1920x1080) | |||
| ***CLICK FOR FULL RESOLUTION*** | |||
 | |||

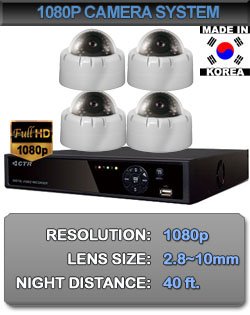

THIS FOUR CAMERA KIT INCLUDES: | ||||||||||||

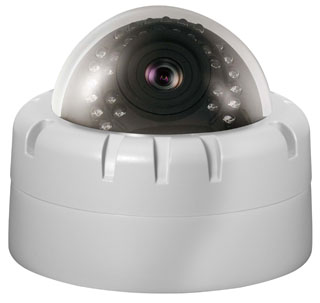

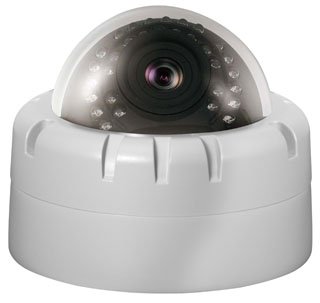

 | FOUR HD-SDI DOME CAMERAS
| |||||||||||
| 4CH WEC-V7010 HD-SDI DVR | |||||||||||
 | CABLES, CONNECTORS, AND POWER
| |||||||||||
| FREE CMS SOFTWARE
| |||||||||||
| ||||||||||||
| ||||||||||||
Camera Features:
|
 |
 |
| Features |
| · H.264 Compression (Main Profile) |
| · 4 HD-SDI Video Input (1080p, 1080i or 720p) |
| · HD Real Time on live view |
| · Max. 7 fps per Channel Recording |
| · HDMI & VGA Output Full HD (Max. 1920 x 1080) |
| · Picture Quality : Utmost graphic, respectively comparing its picture size |
| · Mobile Viewer : iPad / iPhone / Android / Blackberry |
| · Dual Stream : Optimize network transfer speed |
| · POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS |
| · User Friendly GUI : Flexible, Easy and Convenient |
| · Advanced CMS Software : Convenient and Versatile Software |
| · S.M.A.R.T : Self Monitoring Analysis and Reporting Technology |
|
| Model | V7010 |
| Compression | H.264 (Main Profile) |
| Signal Format | HD-SDI (1080p, 1080i or 720p, Auto Detection) |
| Recording Rate | Max. 15 FPS @ 720p per Channel / Max. 7 FPS @ 1080p per Channel |
| Video Input | 4 HD-SDI Inputs (1080p, 1080i or 720p) |
| Video Output | 1 VGA / 1 HDMI (Max. 1920 x 1080p, Various Resolution) |
| Dual Stream | Selectable |
| Audio Compression | ADPCM (16 Bit) |
| Audio Input | 2 Inputs (RCA) |
| Audio Output | 1 Output (RCA) |
| Ethernet | 10 / 100 / 1000 Mbps Ethernet (RJ-45) |
| PTZ Control | RS-485/422 Terminal Block |
| Text Insertion (POS) | 4 |
| Alarm Input / Output | 2 / 1 (TTL) Programmable as NC/NO |
| USB Port | 3 Ports (1 x Front Panel, 2 x Rear Panel) |
| Control Device | Keypad, Mouse, Keyboard Controller, Remote Controller |
| Recording Quality | Super / High / Standard |
| Recording Mode | Continuous / Alarm / Motion / Emergency |
| Pre-Alarm Recording | Up to 3 Hours / User Programmable |
| Motion Detection | Yes (22 x 15) |
| Playback Speed | x1, x2, x4, x8, x16, x32, x64, Extreme |
| Archive File Format | EXE, AVI (Video Clip) / JPEG (Still Image) |
| User Interface GUI | Yes |
| GMT Time Zone | Yes |
| Multi Language | Arabic / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Italian / Japanese / Korean / Persian / Polish / Portuguese / Russian / Spanish / Thai / Turkish |
| Mobile Communication | iPad / iPhone / Android / Blackberry |
| Operating System | Embedded Linux |
| OS Firmware | Linux OS in Flash Memory |
| Emergency Recording Key | No |
| Primary Storage | 1 SATA HDD |
| Clip Copy Storage | Memory Stick |
| Dimension(WxHxD) | 290 mm x 50 mm x 274 mm / 11.74 inch x 1.97 inch x 10.79 inch |
| Operating Temperature & Humidity | 5°C~40°C / 41°F~104°F, 0% ~ 90% |
| Power Adapter & Consumption | Free Voltage 12VDC, 5A / Max. 21W |
| * Design and specifications are subject to change without notice |
- ManufacturerCTRing
- Hard DriveI will use my own hard drive, 500GB, 1TB , 2TB
- Cables500ft Bulk Spool w/connectors, 1000ft Bulk Spool w/connectors, 4x 100ft Pre-Made Pro Grade Cables w/ connectors
