4 Indoor HD-SDI Mini-Bullet Security Camera HD-SDI DVR System HDSDI-4CH-HBD450-LITE-KIT
The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 4 Indoor HD-SDI Mini-Bullet Security Camera HD-SDI DVR System HDSDI-4CH-HBD450-LITE-KIT. This gives you the highest picture quality possible with detailed recordings so you don't miss anything. The 1080P HD-SDI cameras run on standard RJ-59 coax to give you the smooth video you've experienced over the years with traditional CCTV cameras, but without any of the latency that's common with IP cameras. This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. FOUR HD-SDIindoor bullet cameras. These HD-SDI indoor bullet cameras deliver a crisp, true HD 1080p image over standard coaxial cable with standard 12v DC power connections.. They feature 3.6mm fixed lenses, which allow you to get either a nice wide angle with perfect clarity. The camera includes a small mounting bracket that allows you to mount it from various angles.

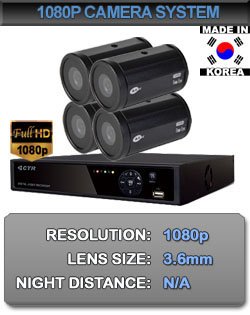

This complete high definition CCTV system includes:
- (1) HDSDI Full HD DVR
- (4) True HD 1080p Indoor Mini-Bullet Cameras
- (1) Coaxial Cable Spool with Connectors
- (1) Power Supply (4 Camera)
- FREE Android or iOS App
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The Company offers a complete line of Safety and Security, CCTV, access products. The Model is 4 Indoor HD-SDI Mini-Bullet Security Camera HD-SDI DVR System HDSDI-4CH-HBD450-LITE-KIT. This gives you the highest picture quality possible with detailed recordings so you don't miss anything. The 1080P HD-SDI cameras run on standard RJ-59 coax to give you the smooth video you've experienced over the years with traditional CCTV cameras, but without any of the latency that's common with IP cameras. This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. FOUR HD-SDIindoor bullet cameras. These HD-SDI indoor bullet cameras deliver a crisp, true HD 1080p image over standard coaxial cable with standard 12v DC power connections.. They feature 3.6mm fixed lenses, which allow you to get either a nice wide angle with perfect clarity. The camera includes a small mounting bracket that allows you to mount it from various angles. The camera is featured 1 / 33 2.1 Megapixel CMOS sensor. 1920 x 1080 (1080p@30fps, 720p@60fps). HD-SDI (BNC) NTSC/PAL Selectable. SN Ratio : More than 50dB. Digital Day & Night. Fixed Lens (3.6mm or 6.0 mm). WDR, DSS, AGC, BLC, 3DNR. Convenient OSD with Joystick. Service Video Output. 4CH WEC-V7010 HD-SDI DVR. The light-weight standalone HD-SDI DVR that's capable of delivering 1080p recording at 7.5fps on all channels or 15fps at 720p. It can hold one hard drive, and is compatible with PC, Mac, and Linux operating systems with remote view possible on most web browsers and mobile devices. The DVR is featured by H.264 Compression (Main Profile). 4 HD-SDI Video Input (1080p, 1080i or 720p). HD Real Time on live view. Max. 7 fps per Channel Recording. HDMI & VGA Output Full HD (Max. 1920 x 1080). Picture Quality : Utmost graphic, respectively comparing its picture size. Mobile Viewer : iPad / iPhone / Android / Blackberry. Dual Stream : Optimize network transfer speed · POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS. User Friendly GUI : Flexible, Easy and Convenient. Advanced CMS Software : Convenient and Versatile Software. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications
 |  |  |  |
 |  |  |  |
This four-channel HD-SDI kit includes a four-channel HD-SDI DVR is capable of recording cameras at full 1080p resolution at 7.5 fps on each channel. This gives you the highest picture quality possible with detailed recordings so you don't miss anything. The 1080P HD-SDI cameras run on standard RJ-59 coax to give you the smooth video you've experienced over the years with traditional CCTV cameras, but without any of the latency that's common with IP cameras. It's fully compatible with PC, Mac, and Linux and supports remote viewing on smartphones and tablets running either iOS or Android. This is a very high-quality high-definition true HD DVR manufactured in Korea. Strong build quality, amazing software support, and the best video quality in the industry all packed in a compact DVR. | |||
 | |||
 | |||
THIS FOUR CAMERA KIT INCLUDES: | ||||||||||||
 | FOUR HD-SDI INDOOR BULLET CAMERAS
| |||||||||||
| 4CH WEC-V7010 HD-SDI DVR | |||||||||||
 | CABLES, CONNECTORS, AND POWER
| |||||||||||
| FREE CMS SOFTWARE
| |||||||||||
| ||||||||||||
| ||||||||||||

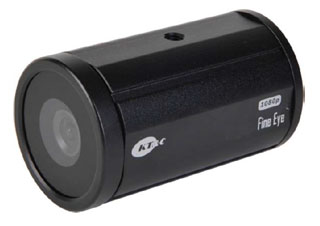

Features:
1 / 33 2.1 Megapixel CMOS sensor
1920 x 1080 (1080p@30fps, 720p@60fps)
HD-SDI (BNC) NTSC/PAL Selectable
SN Ratio : More than 50dB
Digital Day & Night
Fixed Lens (3.6mm or 6.0 mm)
WDR, DSS, AGC, BLC, 3DNR
Convenient OSD with Joystick
Service Video Output
- DC 12V
Click here for a detailed specifications sheet.
Image Sensor | 1 / 3” 2.1 Megapixel Color CMOS |
Effective Pixels | 1944 (H) x 1092 (V) |
Unit Cell Size | 2.75um (H) x 2.75um (V) |
Video Output | HD-SDI: 1080p@30fps / 720p@60fps TV Out: CVBS NTSC / PAL |
Lens | f = 3.6 mm / 6.0 mm Fixed Board Lens |
S/N Ratio | More than 50dB |
Min. Illumination | 1.0 Lux |
Shutter Speed | Auto / Manual 1/30 (25), 1/60 (50), 1/120, 1/250, 1/700, 1/1K, 1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K |
OSD Menu | Built-in with joystick |
AGC | 0 ~ 23 dB |
BLC | On / Off |
White Balance | Manual / Push Lock / Manual |
WDR | Supported |
3DNR | Supported |
DSS | Supported |
Motion Detection | Supported |
Mirror Mode | Supported (H/V / HV) |
Day & Night | Auto / Color / BW |
Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
Storage Temperature | -20 °C ~ 70 °C (-4 °F ~ 140 °F) |
Power Supply | DC12V (±10%), Max. 160 mA |
Dimensions | 45 ¦ x 75 mm |
Weight | 145g |
| Features |
| · H.264 Compression (Main Profile) |
| · 4 HD-SDI Video Input (1080p, 1080i or 720p) |
| · HD Real Time on live view |
| · Max. 7 fps per Channel Recording |
| · HDMI & VGA Output Full HD (Max. 1920 x 1080) |
| · Picture Quality : Utmost graphic, respectively comparing its picture size |
| · Mobile Viewer : iPad / iPhone / Android / Blackberry |
| · Dual Stream : Optimize network transfer speed |
| · POS text insertion (Patent Pending) : Displaying & Recording Transaction Data from POS |
| · User Friendly GUI : Flexible, Easy and Convenient |
| · Advanced CMS Software : Convenient and Versatile Software |
| · S.M.A.R.T : Self Monitoring Analysis and Reporting Technology |
|
| Model | V7010 |
| Compression | H.264 (Main Profile) |
| Signal Format | HD-SDI (1080p, 1080i or 720p, Auto Detection) |
| Recording Rate | Max. 15 FPS @ 720p per Channel / Max. 7 FPS @ 1080p per Channel |
| Video Input | 4 HD-SDI Inputs (1080p, 1080i or 720p) |
| Video Output | 1 VGA / 1 HDMI (Max. 1920 x 1080p, Various Resolution) |
| Dual Stream | Selectable |
| Audio Compression | ADPCM (16 Bit) |
| Audio Input | 2 Inputs (RCA) |
| Audio Output | 1 Output (RCA) |
| Ethernet | 10 / 100 / 1000 Mbps Ethernet (RJ-45) |
| PTZ Control | RS-485/422 Terminal Block |
| Text Insertion (POS) | 4 |
| Alarm Input / Output | 2 / 1 (TTL) Programmable as NC/NO |
| USB Port | 3 Ports (1 x Front Panel, 2 x Rear Panel) |
| Control Device | Keypad, Mouse, Keyboard Controller, Remote Controller |
| Recording Quality | Super / High / Standard |
| Recording Mode | Continuous / Alarm / Motion / Emergency |
| Pre-Alarm Recording | Up to 3 Hours / User Programmable |
| Motion Detection | Yes (22 x 15) |
| Playback Speed | x1, x2, x4, x8, x16, x32, x64, Extreme |
| Archive File Format | EXE, AVI (Video Clip) / JPEG (Still Image) |
| User Interface GUI | Yes |
| GMT Time Zone | Yes |
| Multi Language | Arabic / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Italian / Japanese / Korean / Persian / Polish / Portuguese / Russian / Spanish / Thai / Turkish |
| Mobile Communication | iPad / iPhone / Android / Blackberry |
| Operating System | Embedded Linux |
| OS Firmware | Linux OS in Flash Memory |
| Emergency Recording Key | No |
| Primary Storage | 1 SATA HDD |
| Clip Copy Storage | Memory Stick |
| Dimension(WxHxD) | 290 mm x 50 mm x 274 mm / 11.74 inch x 1.97 inch x 10.79 inch |
| Operating Temperature & Humidity | 5°C~40°C / 41°F~104°F, 0% ~ 90% |
| Power Adapter & Consumption | Free Voltage 12VDC, 5A / Max. 21W |
| * Design and specifications are subject to change without notice |
