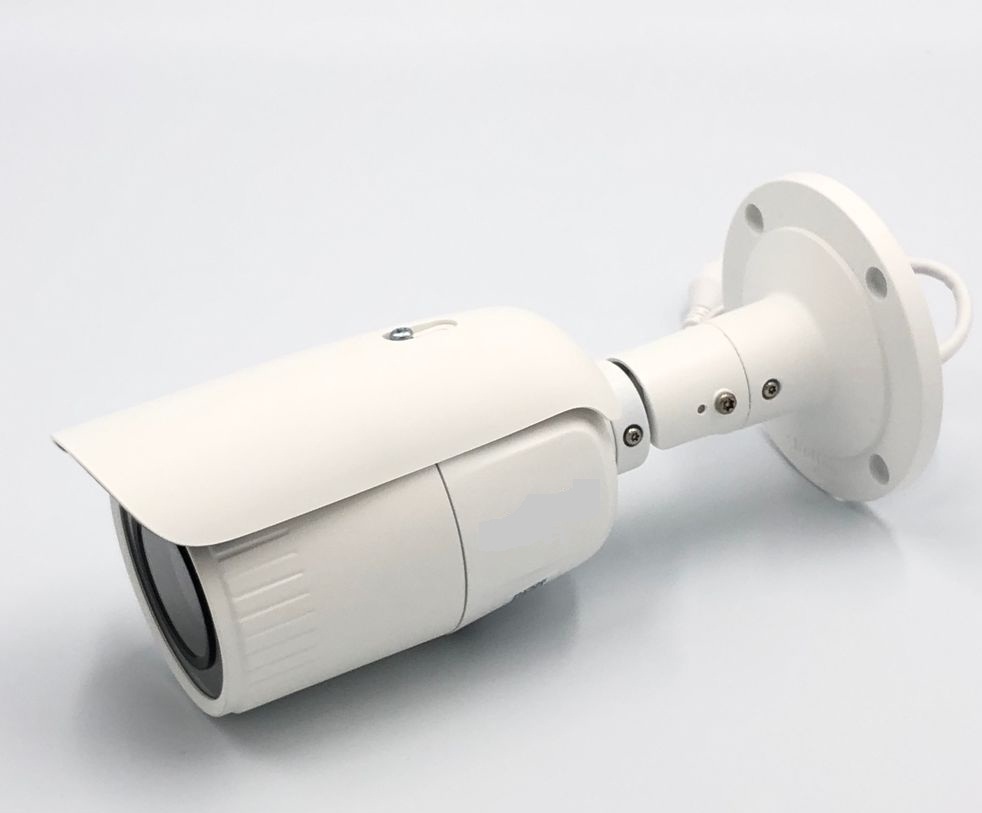

4MP WDR Vari-focal Bullet Network Camera
1/3” Progressive Scan CMOS
Up to 4 megapixel resolution
120dB WDR
3D DNR
Motorized lens 2.8-12mm(-Z)
Up to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio/alarm I/O (-S)
Mobile Monitoring via Hik-Connect
12V DC±25% & PoE(802.3af Class3)
Support H.264+
IP67
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
1/3” Progressive Scan CMOS
Up to 4 megapixel resolution
120dB WDR
3D DNR
Motorized lens 2.8-12mm(-Z)
Up to 30 meters IR range
Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Audio/alarm I/O (-S)
Mobile Monitoring via Hik-Connect
12V DC±25% & PoE(802.3af Class3)
Support H.264+
IP67
| Camera | ||
|---|---|---|
| Image Sensor: | 1/3" Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR | |
| Shutter time: | 1/3 s ~ 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 - 12 mm @ F1.4, motorized lens (-Z), angle of view: 112°~33.8° | |
| Lens Mount: | φ14 | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG/H.264+ | |
| H.264 code profile: | Main Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | -S: G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) | |
| Sub Stream: | 50Hz: 25fps(352×288),25fps(640×360) 60Hz: 30fps(352×240),30fps(640×360) | |
| Image Enhancement: | BLC/3D DNR/ROI | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | Max. 5.5 W (Max. 7.5 W with IR cut filter on) | |
| Weather Proof: | IP67 | |
| IR Range: | Approx 20 to 30 meters(65.6-98.4ft) | |
| Dimensions: | 95×105×258.6 mm (3.74” × 4.13” × 10.18”) | |
| Weight: | 1200g (2.65 lbs) | |
| NOTE：: | * “-S” series support 1-ch audio I/O and 1-ch alarm I/O | |
