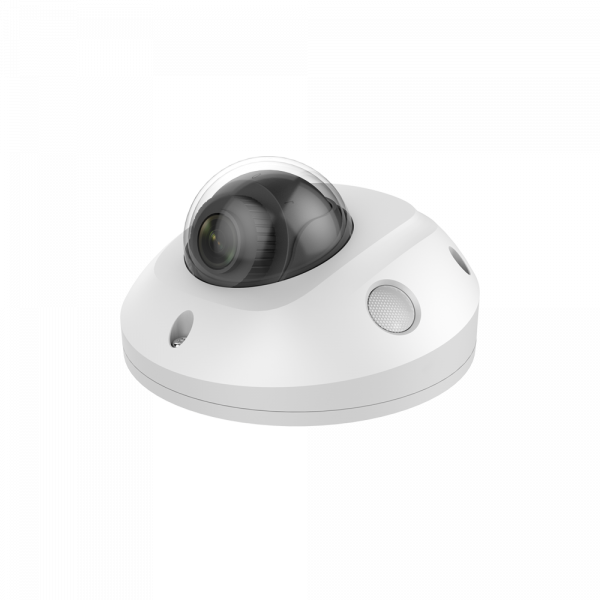

ESNC324-WDC/28 | 4MP EXIR WiFi Mini Dome Network Camera

WEC
SKU: WECDS-2CD2542G0-IWS

Features

  • 1/3" Progressive Scan CMOS
  • 2688 × 1520@30fps
  • 2.8 mm fixed lens
  • Color: 0.01 Lux @ (F1.2, AGC ON),
  • 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • Three streams
  • 120dB WDR
  • IP67, IK08
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment



More Information
Image Sensor1/3" Progressive Scan CMOS
Image Size2688 × 1520
Electronic Shutter1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
IR DistanceUp to 10 m
Wide Dynamic Range120dB
Focal Length2.8mm
Max. ApertureF1.6
Angle of ViewHorizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
Pan / Tilt / RotationPan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Video CompressionH.265+, H.265, H.264+, H.264
Video Resolution

Main Stream:
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub-Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Bitrate256 Kbps to 16 Mbps
Day / NightIR Cut Filter
Digital Noise Reduction3D DNR
Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Trigger EventsMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Ethernet1 RJ45 10M/100M self-adaptive Ethernet port
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Network InteroperabilityONVIF (PROFILE S, PROFILE G), ISAPI
Network FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Network Max. UsersUp to 32 users
StorageLocal storage and NAS (NFS,SMB/CIFS), ANR
Storage CardSupport Micro SD/SDHC/SDXC card (128G)
Web ViewerIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Management SoftwareiVMS-4200, Hik-Connect, iVMS-5200
Video OutputN/A
RS485N/A
Alarm In1 input
Alarm Out1 output
Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
Power ConsumptionMax 10W
Operating Temperature-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Temperature-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Ingress ProtectionIP67, IK08
DimensionsCamera: 1110 mm × 56.4 mm (4.3" × 2.2")
WeightCamera: Approx. 400 g (0.9 lb.)
    • 50% less
    Market price:$556.00 save $278.00
  • $278.00

OR

Features

  • 1/3" Progressive Scan CMOS
  • 2688 × 1520@30fps
  • 2.8 mm fixed lens
  • Color: 0.01 Lux @ (F1.2, AGC ON),
  • 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • H.265+, H.265, H.264+, H.264
  • Three streams
  • 120dB WDR
  • IP67, IK08
  • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
  • 3-Axis adjustment



More Information
Image Sensor1/3" Progressive Scan CMOS
Image Size2688 × 1520
Electronic Shutter1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
IR DistanceUp to 10 m
Wide Dynamic Range120dB
Focal Length2.8mm
Max. ApertureF1.6
Angle of ViewHorizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
Pan / Tilt / RotationPan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Video CompressionH.265+, H.265, H.264+, H.264
Video Resolution

Main Stream:
50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080)
Sub-Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Video Bitrate256 Kbps to 16 Mbps
Day / NightIR Cut Filter
Digital Noise Reduction3D DNR
Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Trigger EventsMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Ethernet1 RJ45 10M/100M self-adaptive Ethernet port
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Network InteroperabilityONVIF (PROFILE S, PROFILE G), ISAPI
Network FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Network Max. UsersUp to 32 users
StorageLocal storage and NAS (NFS,SMB/CIFS), ANR
Storage CardSupport Micro SD/SDHC/SDXC card (128G)
Web ViewerIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Management SoftwareiVMS-4200, Hik-Connect, iVMS-5200
Video OutputN/A
RS485N/A
Alarm In1 input
Alarm Out1 output
Power Supply12 VDC ± 25%, PoE (802.3af, class 3)
Power ConsumptionMax 10W
Operating Temperature-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Temperature-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Ingress ProtectionIP67, IK08
DimensionsCamera: 1110 mm × 56.4 mm (4.3" × 2.2")
WeightCamera: Approx. 400 g (0.9 lb.)
    • SKU
      WECDS-2CD2542G0-IWS
  • Manufacturer
    WEC
  • Camera Type
    License Plate Camera
  • Camera Signal
    IP
  • Optical Zoom
    Fixed Lens
