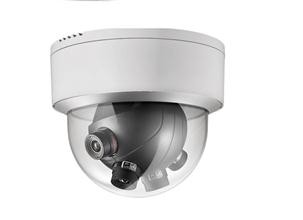

PanoVu series Panoramic Dome Camera

        PanoVu series Panoramic Dome Camera

        WEC
        SKU: WECDS-2CD6986F-H

        • 1/1.8" Progressive Scan CMOS

        • Panoramic camera

        • Up to 7.3MP resolution (4096×1800)

        • 4×5mm fixed lens

        • Ultra-low light

        • Digital WDR
        • Heater & fan optional

        • IP66

            • 50% less
            Market price:$3196.00 save $1598.00
          • $1598.00

          OR

          • 1/1.8" Progressive Scan CMOS

          • Panoramic camera

          • Up to 7.3MP resolution (4096×1800)

          • 4×5mm fixed lens

          • Ultra-low light

          • Digital WDR
          • Heater & fan optional

          • IP66

            Camera
            Image Sensor:1/1.8" Progressive Scan CMOS
            Signal System:PAL/NTSC
            Min. Illumination:0.002 Lux @ (F1.2, AGC ON)
            Shutter time:1/25s ~ 1/100,000s
            Lens:5mm ×4, Pan: 180°, Tilt:78.4°
            Lens Mount:CS
            Adjustment Range:Pan: 0°~360°, tilt: 45°~90°
            Day& Night:IR cut filter with auto switch
            Wide Dynamic Range:Digital WDR
            Digital noise reduction:3D DNR
            Compression Standard
            Video Compression:H.264/MJPEG
            H.264 code profile:Baseline Profile / Main Profile / High Profile
            Video bit rate:32Kbps~16Mbps
            Audio Compression:G.711/G.722.1/G.726/MP2L2
            Audio bit rate:64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
            Dual Stream:Yes
            Max. Image Resolution:4096×1800
            Frame Rate:Mode1:
            Main stream:
            50Hz: 25fps(4096 × 1800, 3840× 1680)
            60Hz: 30fps(4096 × 1800, 3840× 1680)
            Mode2:
            Main stream:
            50Hz: 25fps(2400 × 3840, 1200 × 1920)
            60Hz: 24fps(2400 × 3840),30fps(1200 × 1920)
            Sub Stream:Mode1:
            50Hz: 25fps (704× 320)
            60Hz: 30fps(704× 320)
            Mode2:
            50Hz: 25fps(480 × 768, 320× 512)
            60Hz: 30fps(480 × 768, 320× 512)
            Image Enhancement:BLC/ 3D DNR/ROI/Defog
            Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
            BLC:Support
            Smart Defog:Support
            3D DNR:Support
            ROI:Support
            Picture Overlay:LOGO picture can be overlaid on video with 128x128 24bit bmp format
            Day/Night Switch:Auto/Schedule/Triggered by Alarm In
            Network
            Network Storage:NAS (Support NFS,SMB/CIFS), ANR
            Alarm Trigger:Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
            Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
            General Function:User Authentication, Watermark, IP address filtering
            System Compatibility:ONVIF, ISAPI
            Interface
            Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface
            Alarm:1 input, 1 output (up to DC24V 1A or AC110V 500mA)
            Alarm Input:1
            Alarm Output:1
            On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
            Reset Button:Yes
            General
            Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
            Humidity 95% or less (non-condensing)
            Power Supply:DC12V±10% / PoE (AC24V optional)
            Power Consumption:22W
            Impact Protection:IK10
            Dimensions:Φ195×159 mm
            Weight:2850 g
              • SKU
                WECDS-2CD6986F-H
              • Weight
                6.28 lbs
            • Manufacturer
              WEC
            • Camera Type
              Dome
            • Camera Signal
              IP
            • Camera Resolution
              7.3 Megapixel
            • Optical Zoom
              Fixed Lens
