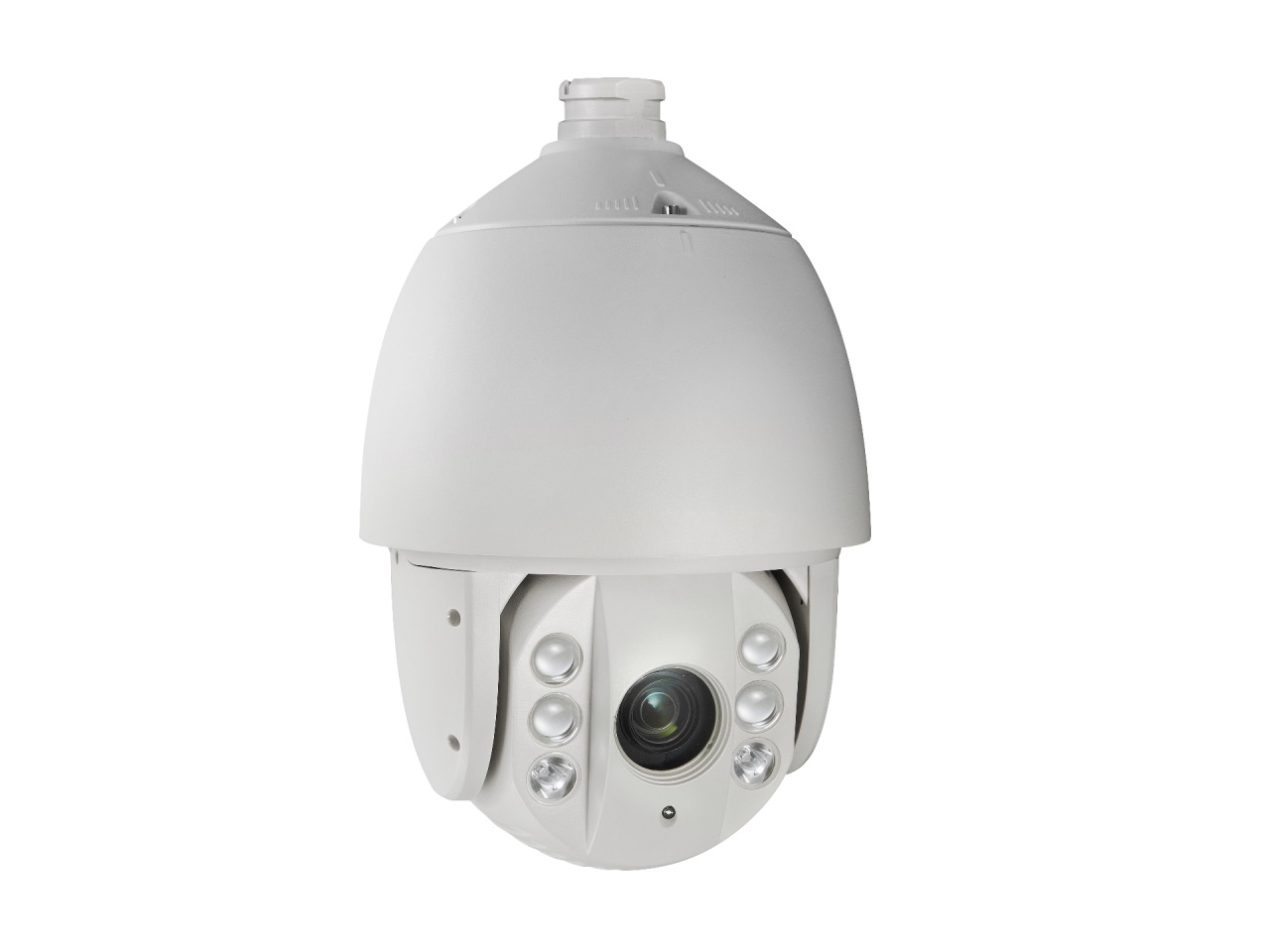

4MP 30X Network IR PTZ Camera
1/1.9" progressive scan CMOS
Up to 2560 × 1440 resolution
Min. illumination:
30× Optical Zoom, 16× Digital Zoom
Defog, EIS, 3D DNR, BLC, HLC, Digital WDR
IR distance up to 150 m
24 VAC & Hi-PoE
Support H.265+/H.265 video compression
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
1/1.9" progressive scan CMOS
Up to 2560 × 1440 resolution
Min. illumination:
30× Optical Zoom, 16× Digital Zoom
Defog, EIS, 3D DNR, BLC, HLC, Digital WDR
IR distance up to 150 m
24 VAC & Hi-PoE
Support H.265+/H.265 video compression
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.9" progressive scan CMOS | |
| Effective Pixels: | 2560(H)×1440(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.002 Lux @(F1.5, AGC ON) 0 Lux with IR | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | DWDR | |
| Shutter Time: | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 8 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5.9 mm to 177 mm, 30× Optical Zoom | |
| Zoom Speed: | Approx. 4.8 s (Optical Lens, Wide-Tele) | |
| Field of View: | 48.8° to 2.3° (Wide-Tele) | |
| Minimum Working Distance: | 10 mm to 1500 mm (Wide-Tele) | |
| Aperture Range: | F1.5 to F3.4 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan Manual Speed: 0.1°-160°/s, Pan Preset Speed: 240°/s | |
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt Manual Speed: 0.1°-120°/s, Tilt Preset Speed: 200°/s | |
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Infrared | ||
|---|---|---|
| IR Distance: | 150m | |
| IR irradiation angle: | Adjustable by zoom | |
| Alarm | ||
|---|---|---|
| Alarm Input: | 2 | |
| Alarm Linkage: | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage | |
| Input & Output | ||
|---|---|---|
| Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% | |
| Audio Output: | 1 Audio output interface Line level, impedance: 600Ω | |
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 2560 × 1440 | |
| Main Stream: | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) | |
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG | |
| ROI encoding: | Support 4 areas with adjustable levels | |
| Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording | |
| Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering | |
| Hik-Connect: | Support | |
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + | |
| General | ||
|---|---|---|
| Language: | English | |
| Power Supply: | 24 VAC & Hi-PoE | |
| Power Consumption: | Max. 40W | |
| Working Temperature/Humidity: | -30 ℃-65℃(-22℉-149℉)(outdoor) 90% or less | |
| Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ220×353.4mm (Φ8.66”×13.91”)(Outdoor) | |
| Weight (approx.): | 4.5kg(9.92Ibs) | |
| Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box | |
