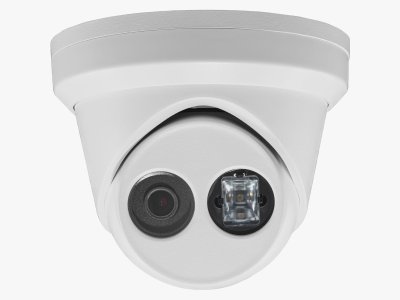

4 MP IR Fixed Turret Network Camera

WEC
SKU: WECDS-2CD2343G0-I/5

• 1/3" Progressive Scan CMOS

 • 2688 ×1520@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment

    • 50% less
    Market price:$360.00 save $180.00
  • $180.00

OR

• 1/3" Progressive Scan CMOS

 • 2688 ×1520@30fps

 • 2.8/4/6/8mm fixed lens

 • Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

 • H.265+, H.265, H.264+, H.264

 • Three streams

 • 120dB WDR

 • 2 Behavior analyses, and face detection

 • BLC/3D DNR/ROI/HLC

 • IP67

 • Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

 • 3-Axis adjustment



Camera
Image Sensor:1/3" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Fixed
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Triple Streams:Yes
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:BLC/3D DNR/ROI/HLC
Image Settings:Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping:No
ROI:1 fixed region for main stream and sub-stream
Day/Night Switch:Day/Night/Auto/Schedule
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof:IP67
IR Range:Up to 30m
Dimensions:Camera: Φ 127.3 × 95.9 mm (Φ 5.0" × 3.4")
Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Weight:Camera: Approx. 610 g (1.3 lb.)
With Package: Approx. 880 g (1.9 lb.)
    • SKU
      WECDS-2CD2343G0-I/5
    • Weight
      1.9 lbs
  • Manufacturer
    WEC
  • Camera Type
    License Plate Camera
  • Camera Signal
    IP
  • Optical Zoom
    Fixed Lens
