How to Connect a WiFi Camera to NVR

Description

This shows you how to connect a wifi camera to NVR.

Prerequisites

• WiFi Camera
• NVR

Video Instructions

Step by Step Instructions

Note: These instructions only apply for WiFi NVRs and Cameras.

1. Connect the NVR and IP Camera directly to your router or modem with a CAT5 cable.

2. Open the ConfigTool and locate your NVR and IP Camera.

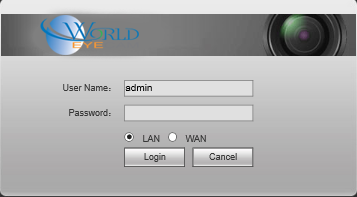

3. Login to both using Internet Explorer.

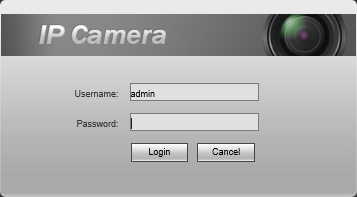

IP camera Login

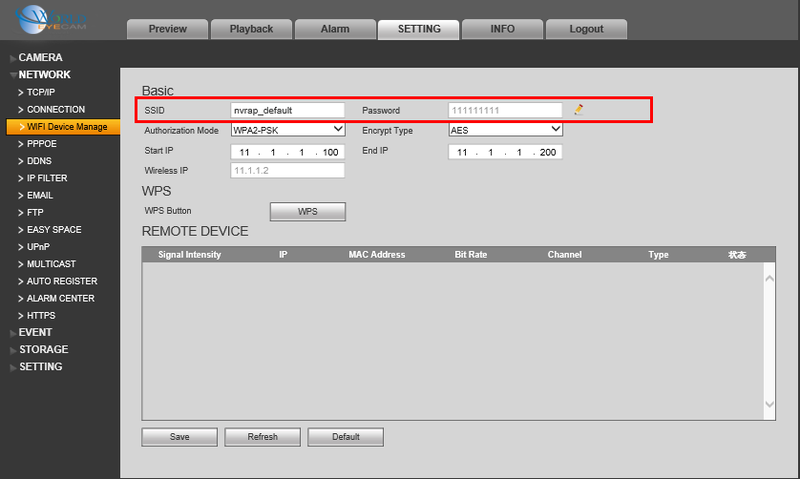

4. On the NVR, go to Settings->Network->WiFi Device Manage

Be sure to note the SSID and Password.

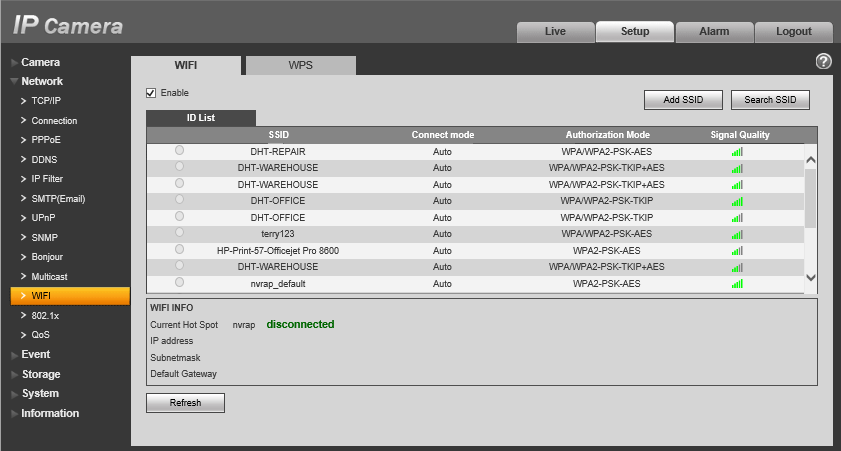

5. On the IP Camera, go to Setup->Network->WiFi

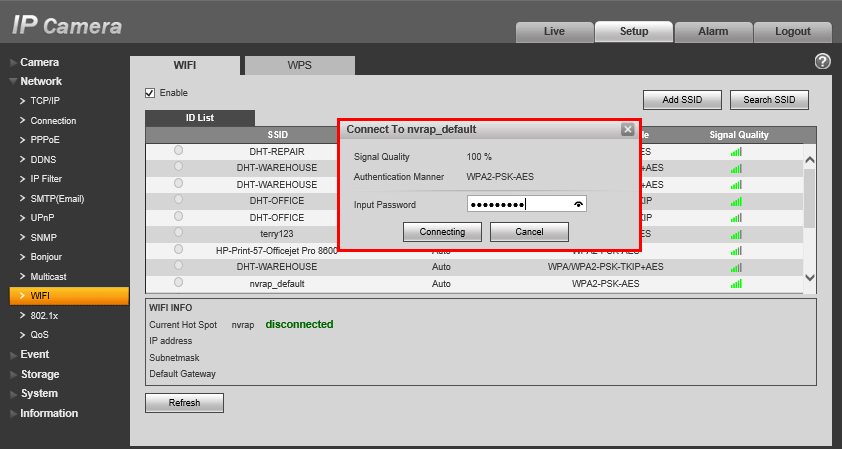

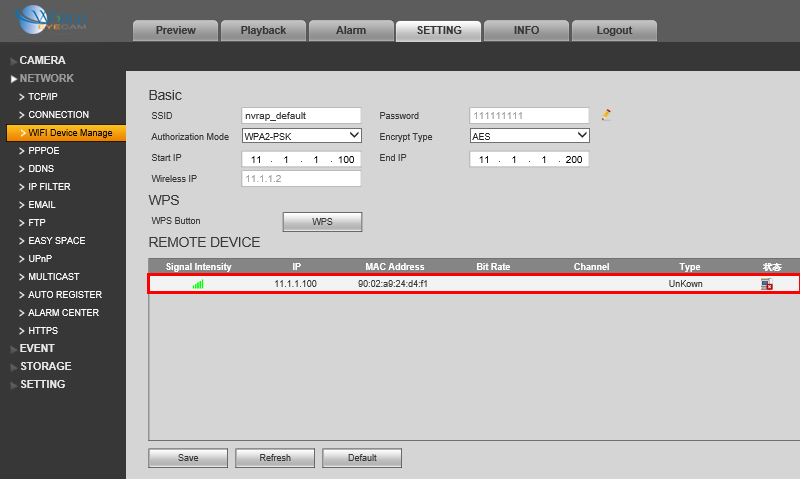

6. Locate your NVR's SSID, and click once.7. Input your NVR's SSID password, and click, "Connecting"8. Go back to the NVR page, go to Settings->Network->WiFi Device Manage

Confirm that the camera is displaying on this page and note the IP address.

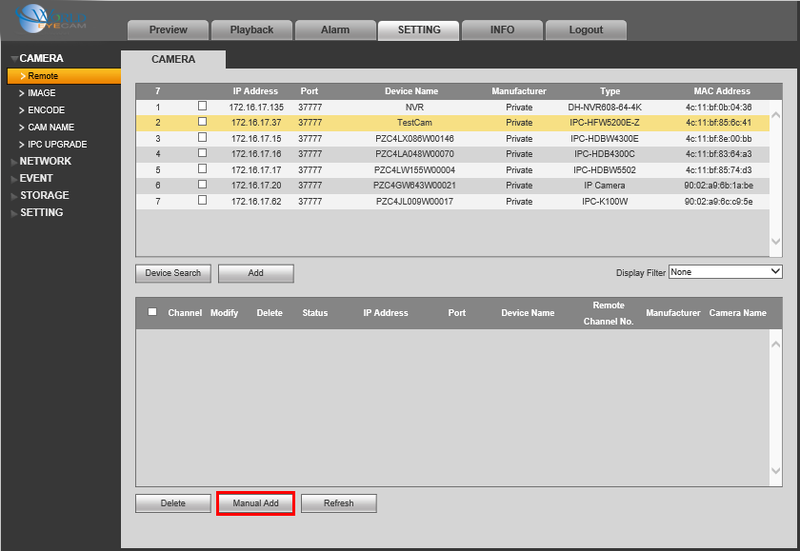

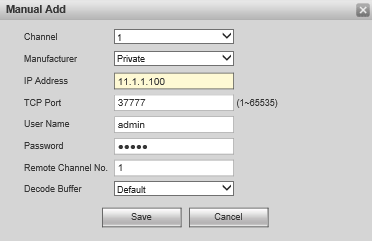

9. On the NVR page, go to Setting->Camera->Remote and click, "Manual Add"10. Input the following:

• Channel: (Any)
• Manufacturer: Private
• IP Address: (Your IP Camera's IP Address)
• TCP Port: 37777
• User Name: admin
• Password: (Your IP Camera's password.) Default is, "admin"
• Remote Channel No. (Any)
• Decode Buffer: Default

11. Hit, "Save"
