ConnectIPCtoHCVR

How to Connect IP Camera to HCVR and Pentabrids

To Connect an IP Camera:

Please Note: This applies to Tribrid HCVR Units and Pentabrids.

Description

This allows IP Cameras to be connected to HCVR and Pentabrids.

Prerequisites

• Computer
• Browser compatible with browser view
• IP camera
• HCVR or Pentabrids

Video Instructions

Step by Step Instructions

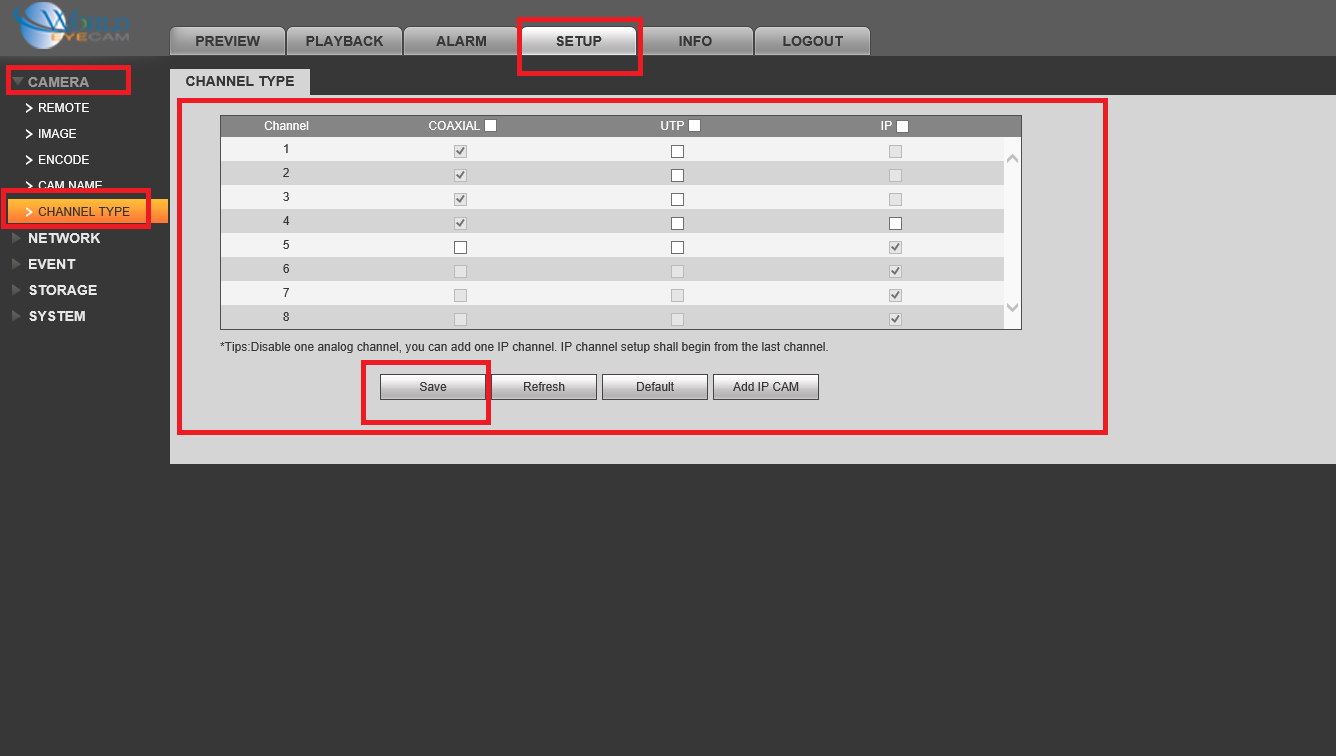

How To Change Channel Type Click on the "Setup Tab" ➞ Camera ➞ Channel Type ➞ Select which Channels are Coaxial, UTP or IP ➞ Click "Save".

1. Log in to a HCVR:

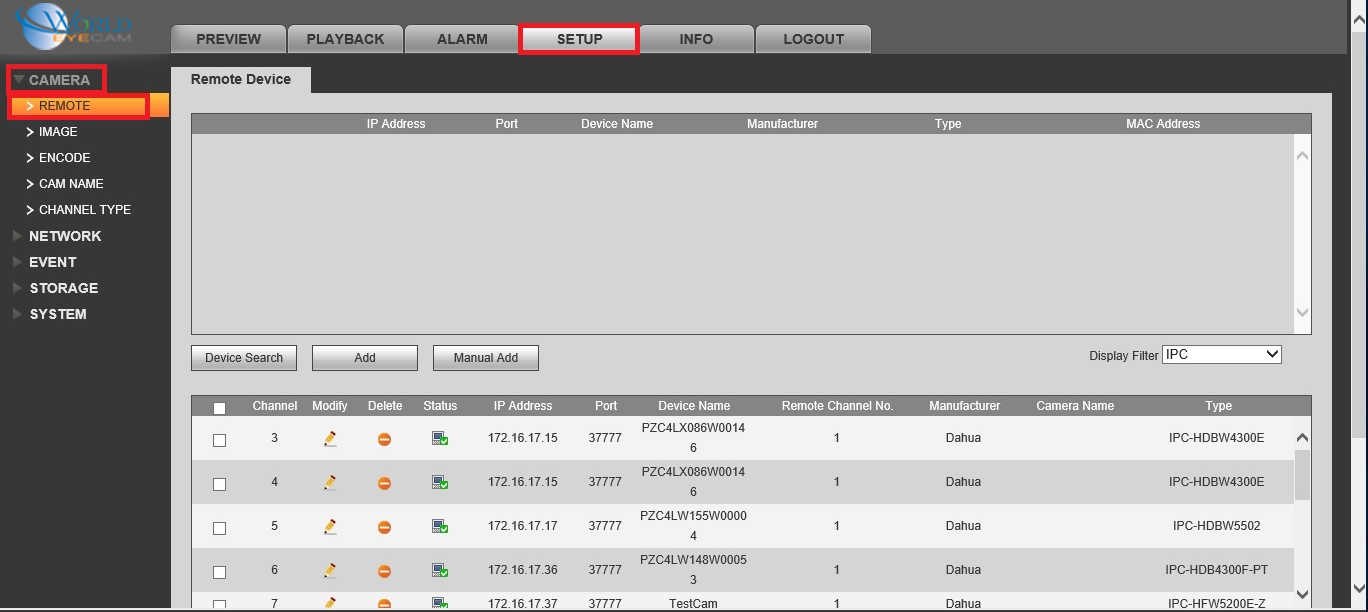

2. Go to setup, click on camera and then remote.3. Click on device search.4. Select the IPC that you want and click on add.5. Go back to the preview and select the IPC and you may see the IPC that you added.

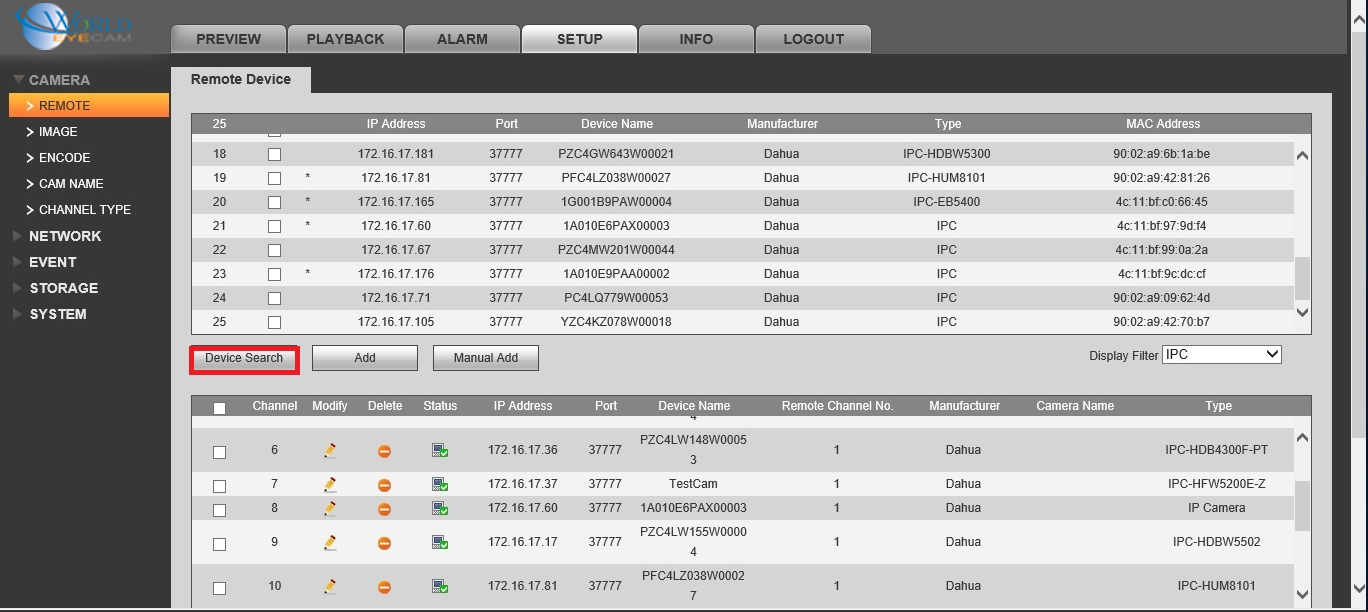

3. Click on device search.

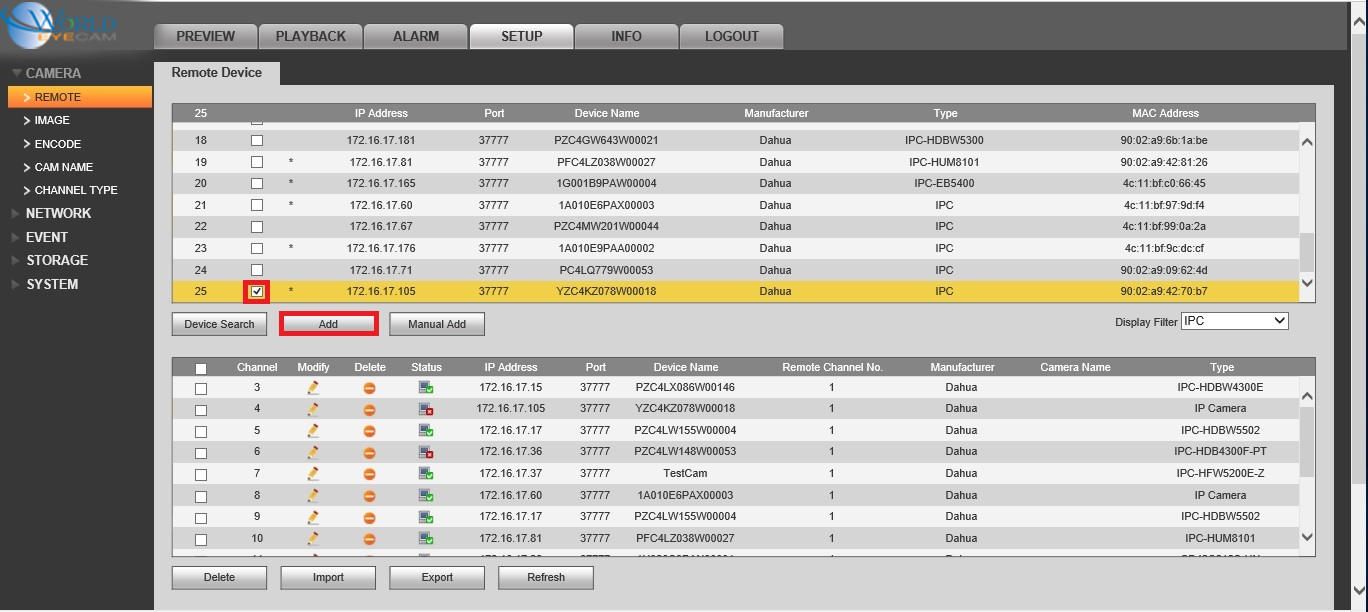

4. Select the IPC that you want and click on add.

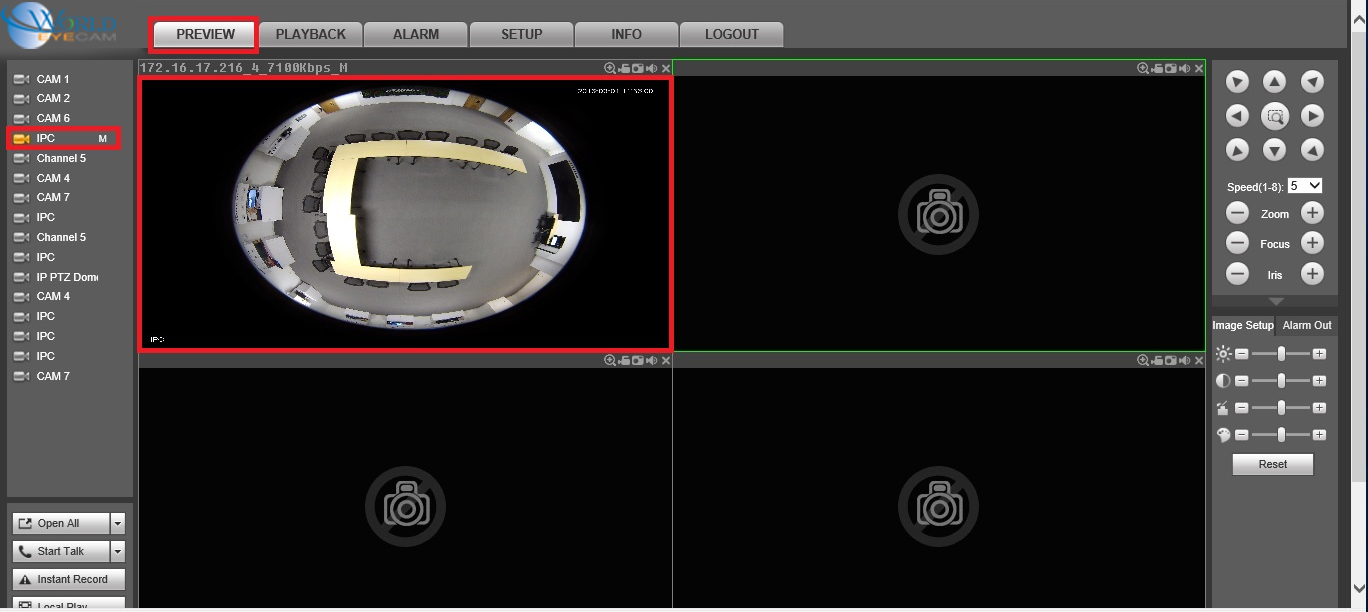

5. Go back to the preview and select the IPC and you may see the IPC that you added
