NVR/Install CD ROM Drive

How to install CD-ROM

Link to Download PDF Manual:  Click Here

General Description

For our new HDD bracket, you can use it for 8 HDDs. And you can also use it for 6 HDDs and 1 burner. In the following, you can see the installation procedure.

Burner Installation

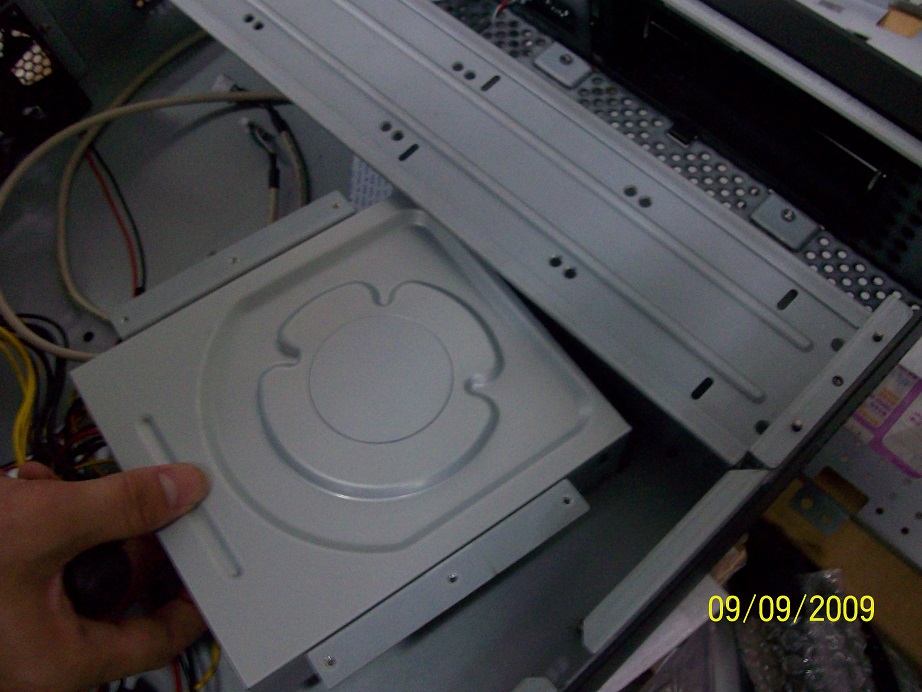

Please check with HDD bracket. You can find the ears of bracket in the accessory box.

After your confirmation, please check with the following installation procedures.

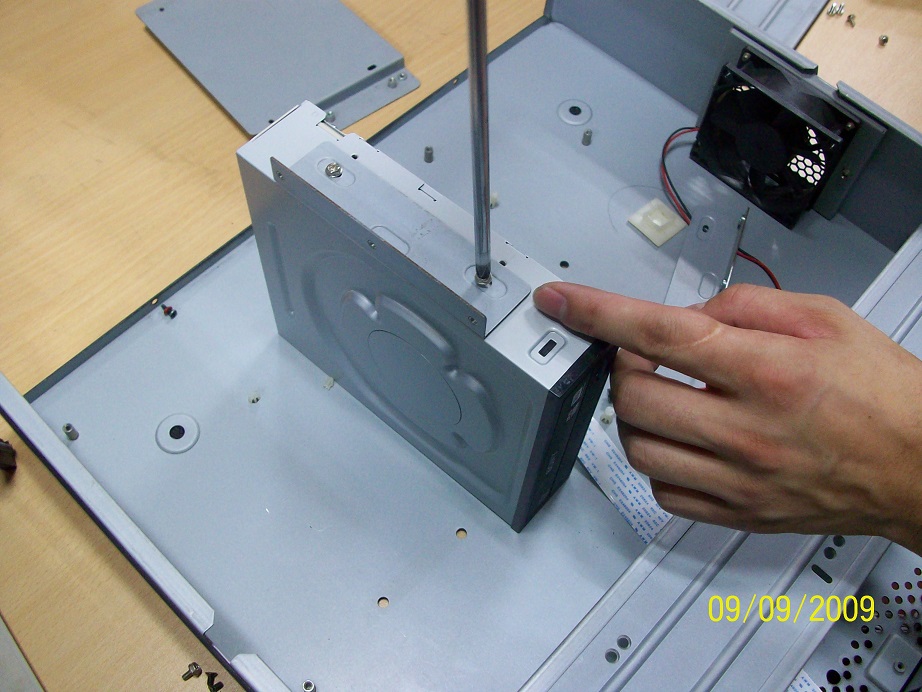

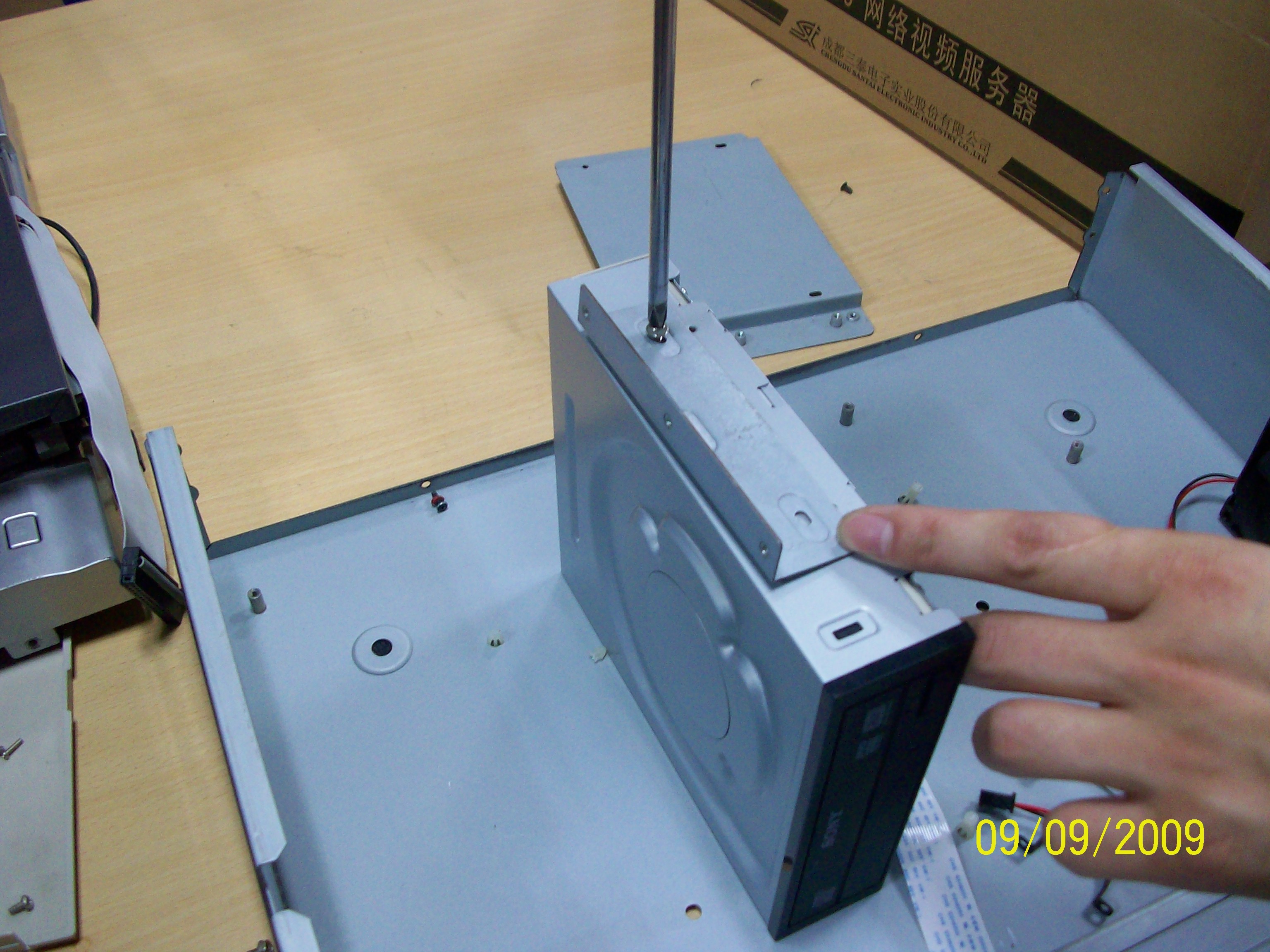

1. First install bracket ears with the burners.

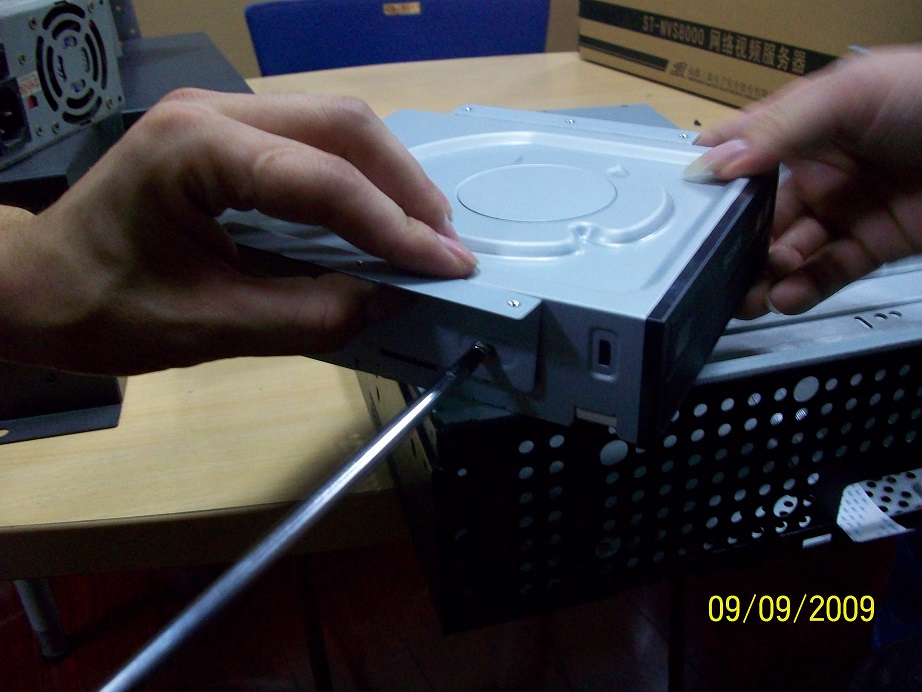

2. Then install the burner on the bottom. Please make sure the bracket direction.

3. After your installation, please check with position. You can move the burner to fit the front panel.

Further Information

If you still have any problems about these functions, please contact with our engineer.
