How to Set the IP to Static on a 5.0 UI IP Camera
IPCamera/Set IP to Static 5.0 UI
How to Set IP Settings to Static on a 5.0 UI IP Camera
Description
This guide will show you how to set the IP settings to static on a ImaxCamPro 5.0 User Interface IP Camera
Prerequisites
- A IMaxCamPro IP Camera with the 5.0 User Interface connected to a network
Step by Step Instructions

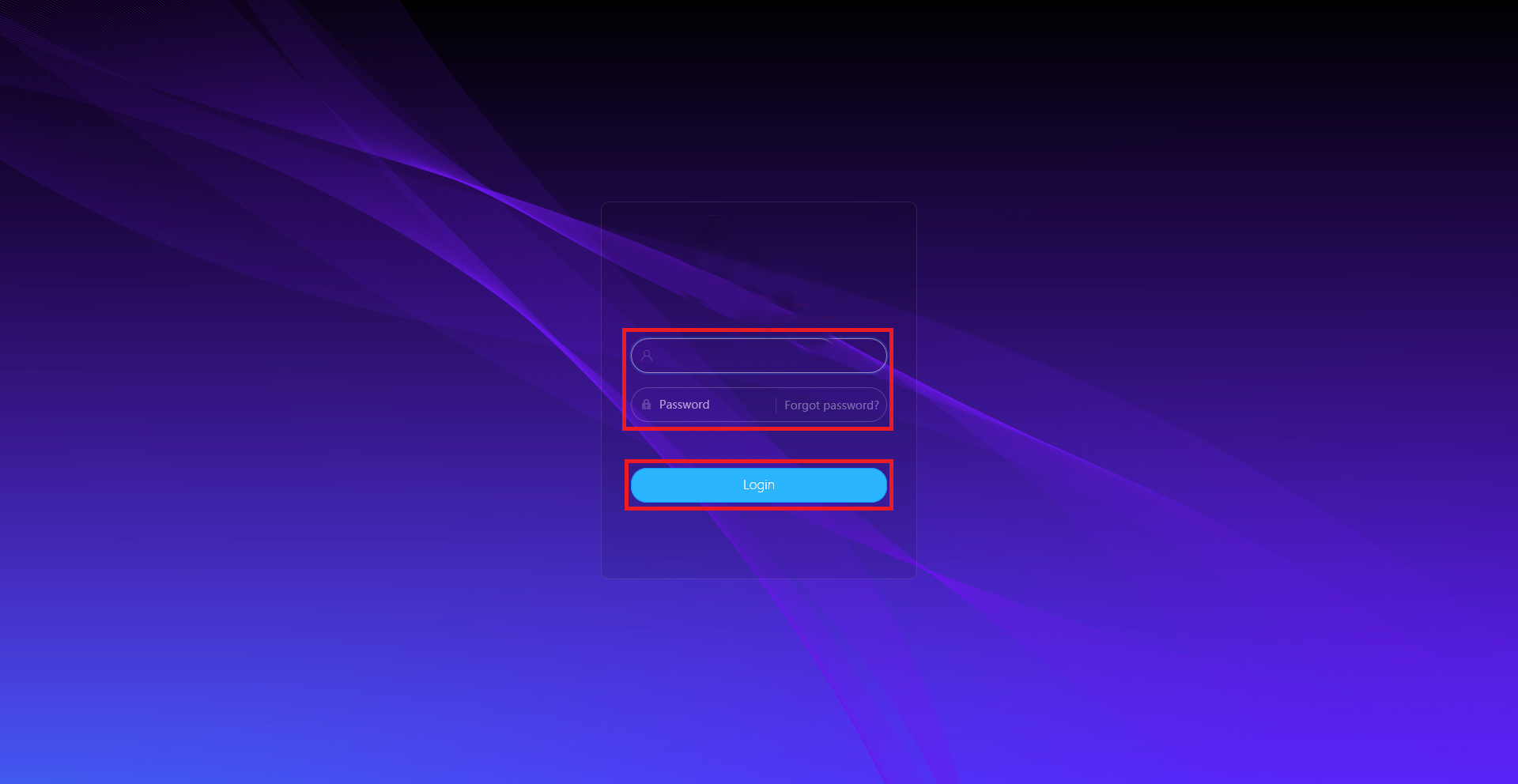

1. Input the camera's IP address into a web browser.
Enter the username and password of the camera into the designated fields.
Click the Login button to log in

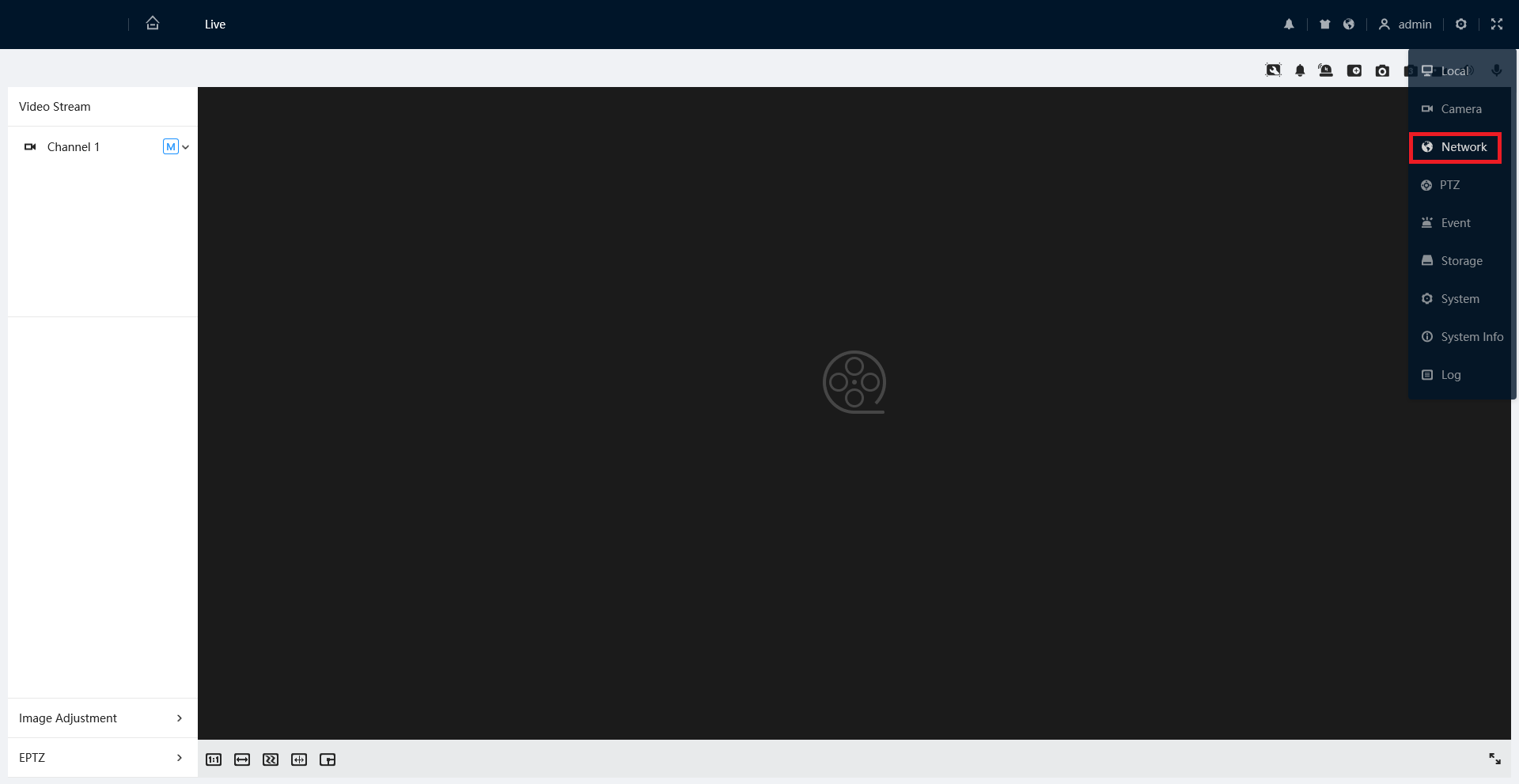

2. Select the Gear icon at the top right.
Then select the Network option from the drop-down list

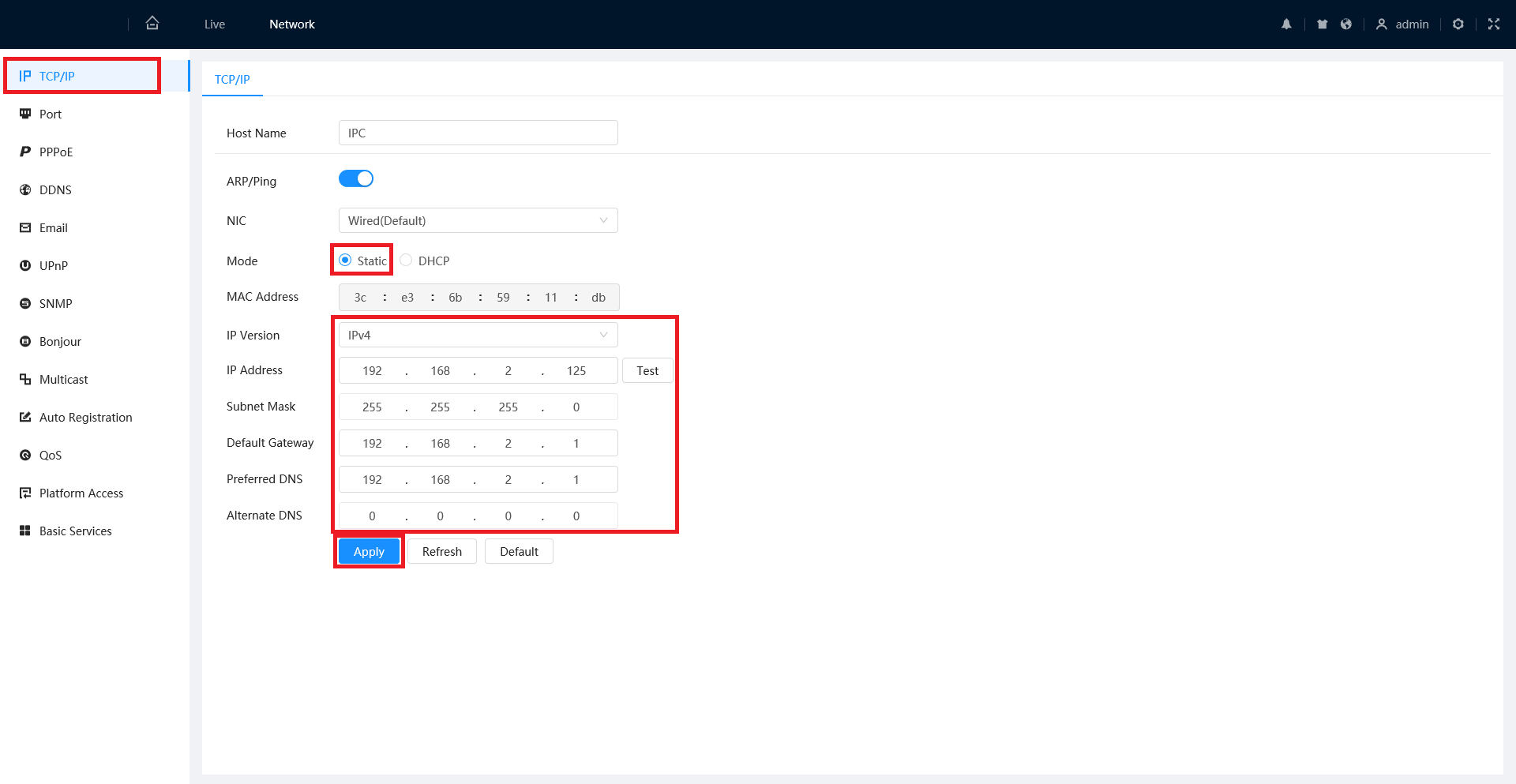

3. Select TCP/IP on the left.
Click on Static next to "Mode".
Then fill in the IP Address, Subnet Mask, Default Gateway, and DNS settings below that. (You can press the "Test" button if you want to see if that IP address is free on your network.)
When you are done adjusting settings, click on Apply at the bottom
