Alarm Out

Description

This feature will allow you to specify a range of time for a Dahua device to record when a physical alarm is triggered.

Alarm output circuit on the NVR is Normally Open by default.

The following can trigger an Alarm Out from a Dahua IP Camera with the appropriate alarm outputs:

• Motion Detection
• Video Tamper
• Scene Change
• Audio Detection
• IVS
• Face Detection
• Abnormality
  • SD-Card
    • No DS-Card
    • SD Card Error
    • Capacity Warning
  • Network
    • Disconnection
    • IP Conflict
  • Illegal Access

The following can trigger an Alarm Out from a Dahua Recorder with the appropriate alarm outputs:

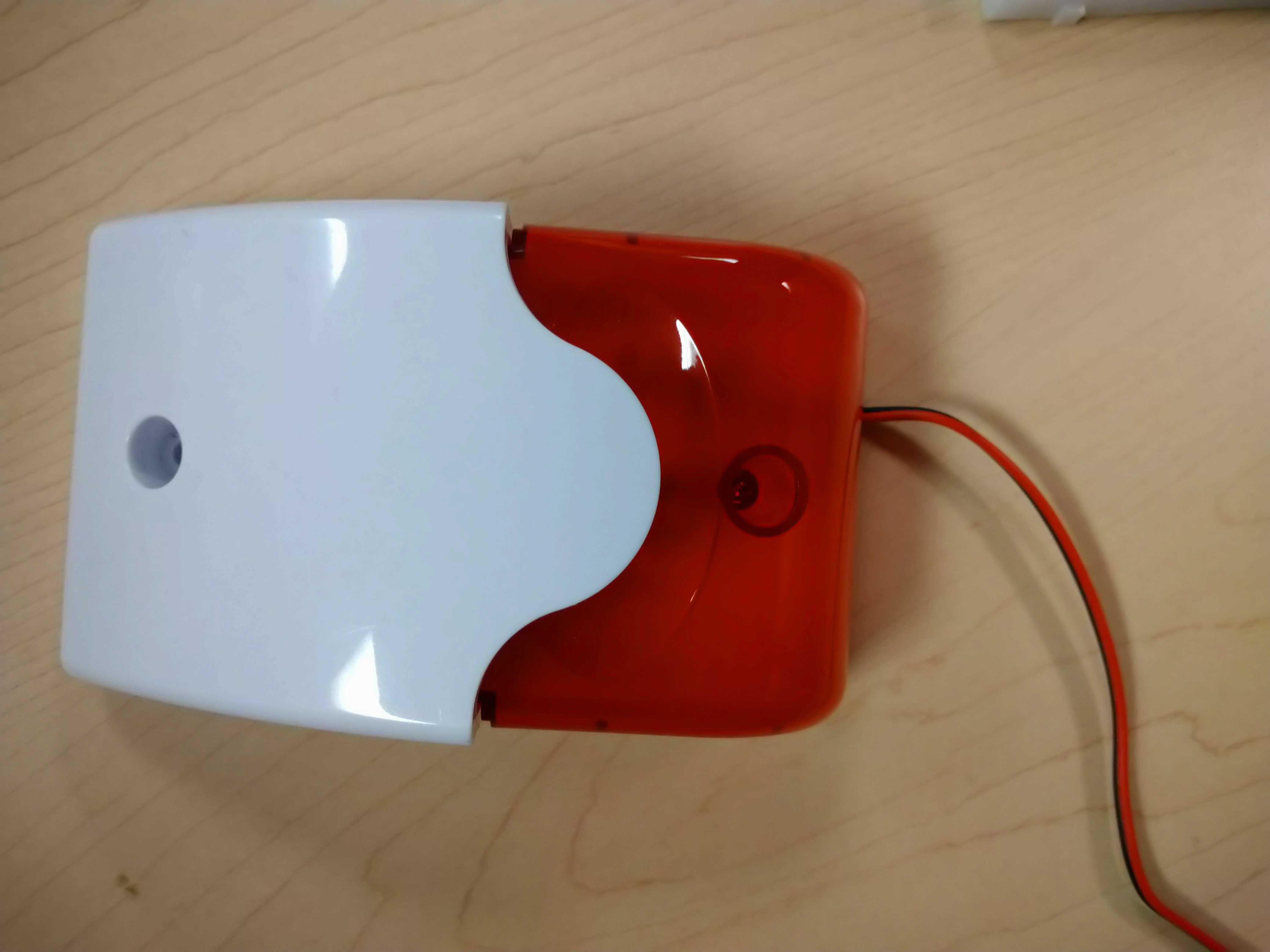

Physical Setup Instructions

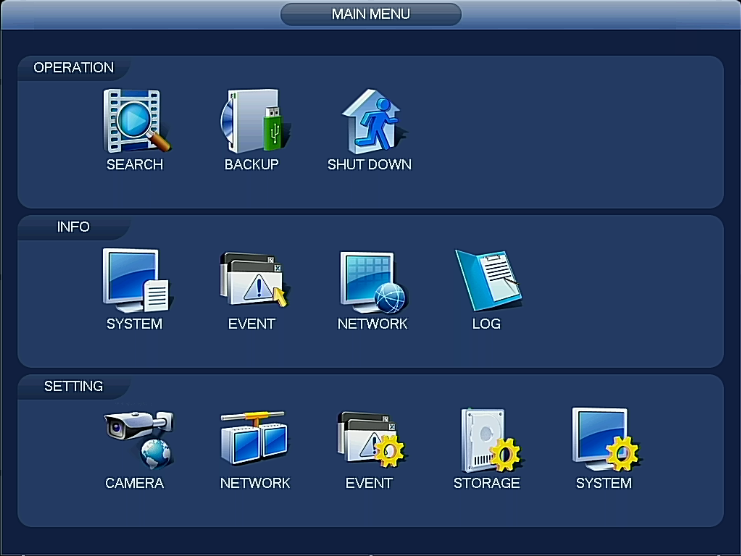

Instructions
