How to Upgrade Firmware via ConfigTool

ConfigTool/Firmware Upgrade via ConfigTool

Firmware Upgrade via ConfigTool

Description

This page will show you how to upgrade the firmware of your iMaxCamPro device via ConfigTool

Note: All devices should be "Factory Reset" once the firmware update is complete.

Prerequisites

iMaxCamPro device(s) with network connection(s)
ConfigTool installed on a local computer
Firmware file for device(s) downloaded to computer - Firmware by Device

Step by Step Instructions

Single Device Upgrade

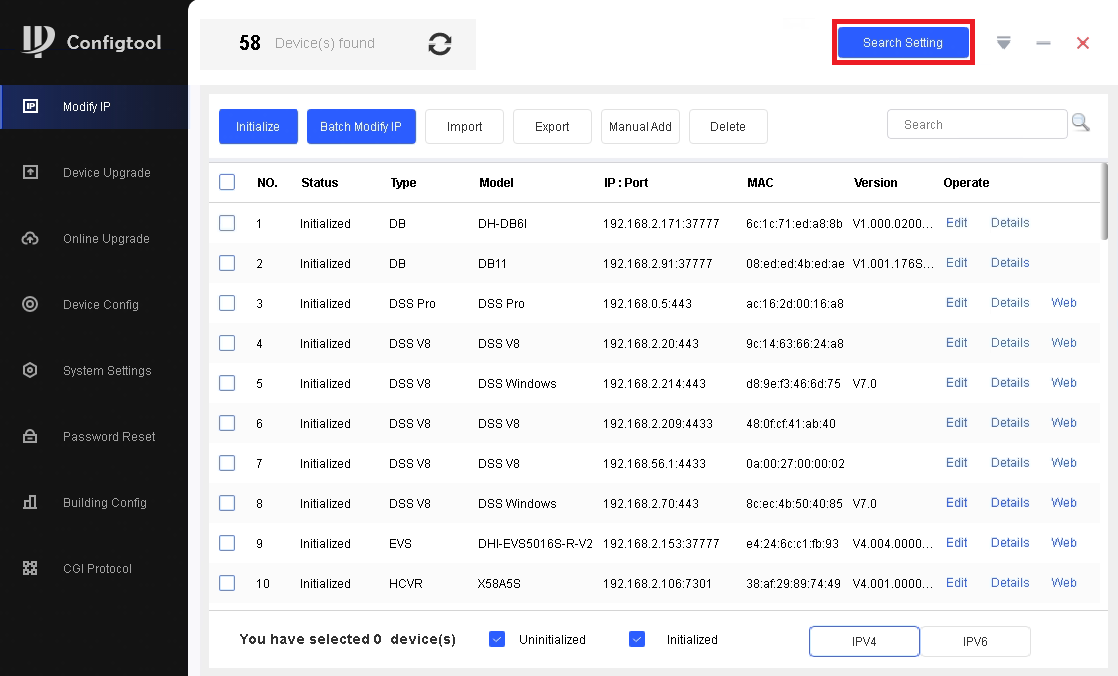

1. Open ConfigTool and click on Search Setting at the top

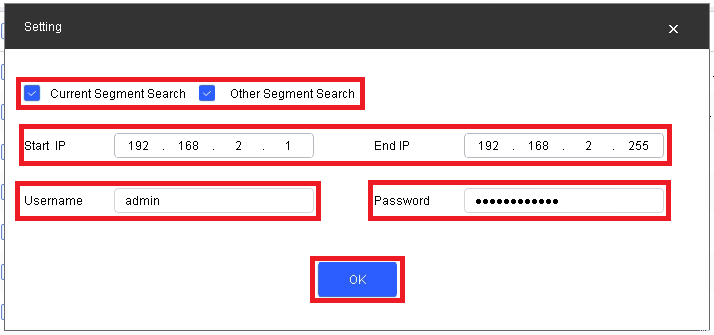

2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the device you are looking for in Start IP and End IP.
Enter the login information for that device in Username and Password.
Then click OK at the bottom

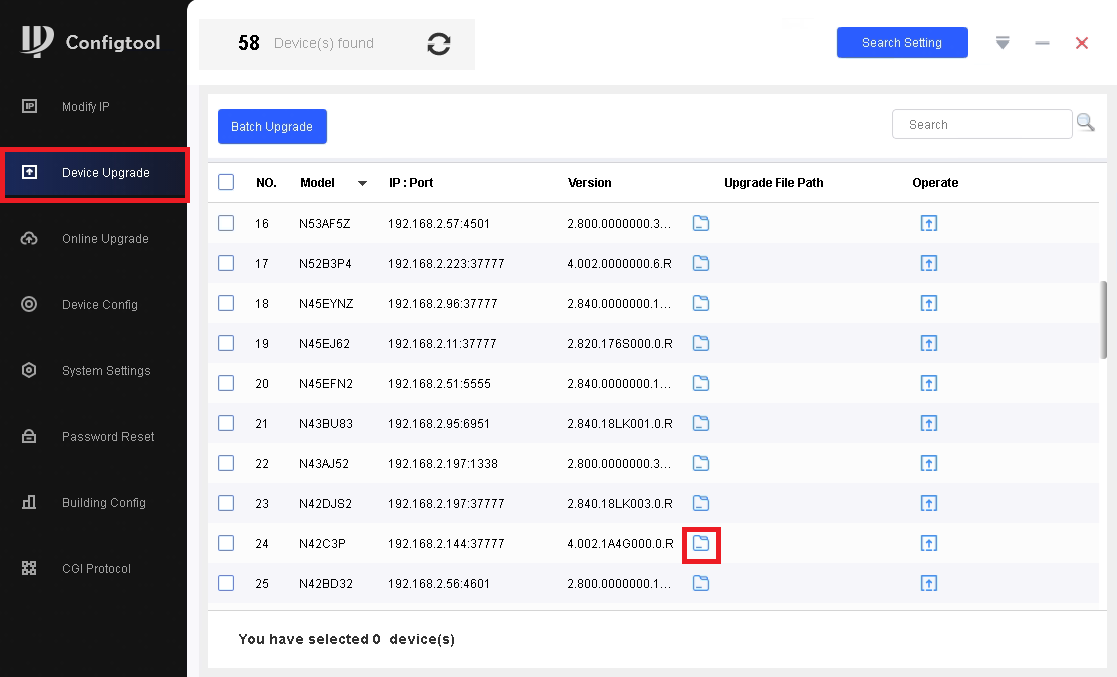

3. Click on Device Upgrade on the left.
Find the device you want to upgrade in the list and click on the Folder icon next to it under the Upgrade File Path column

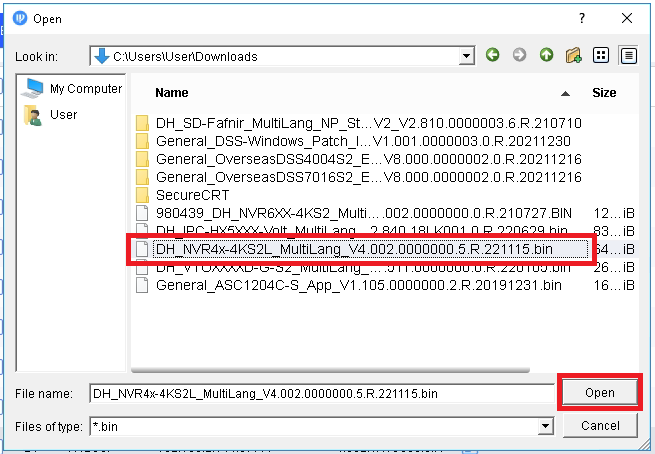

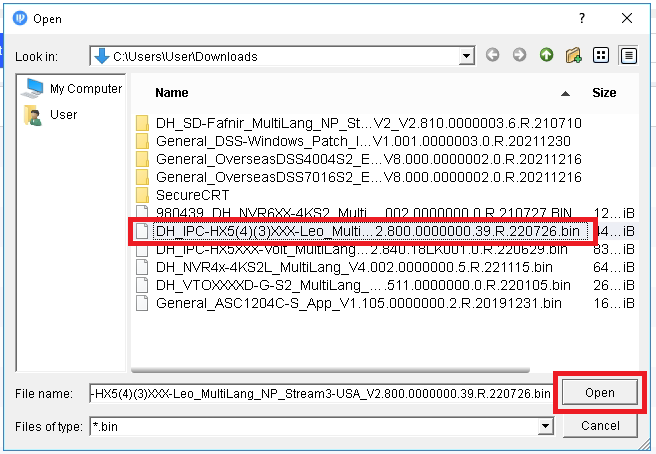

4. Use the file explorer to find the firmware file on your computer and select it.
Then click on Open

5. Verify the file path is listed next to the device in the list.
Then click on the Upgrade icon to the right of the device in the Operate column

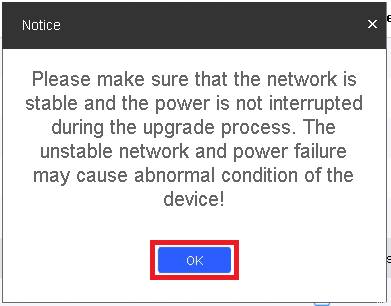

6. Click on OK

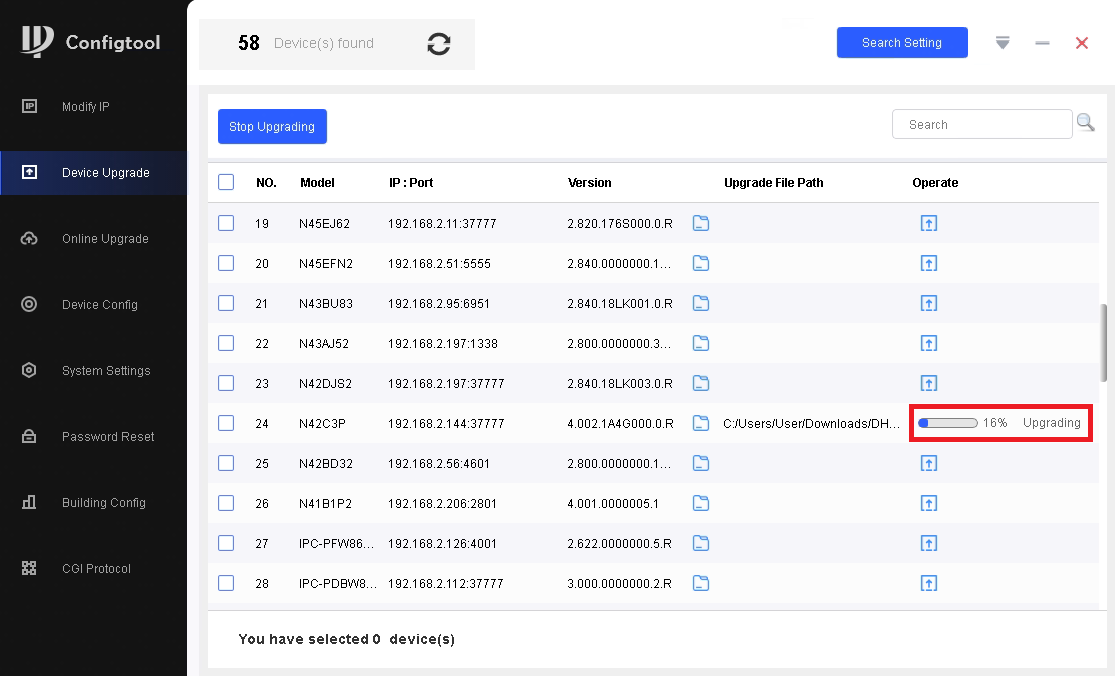

7. The progress bar will fill up as the device is upgraded

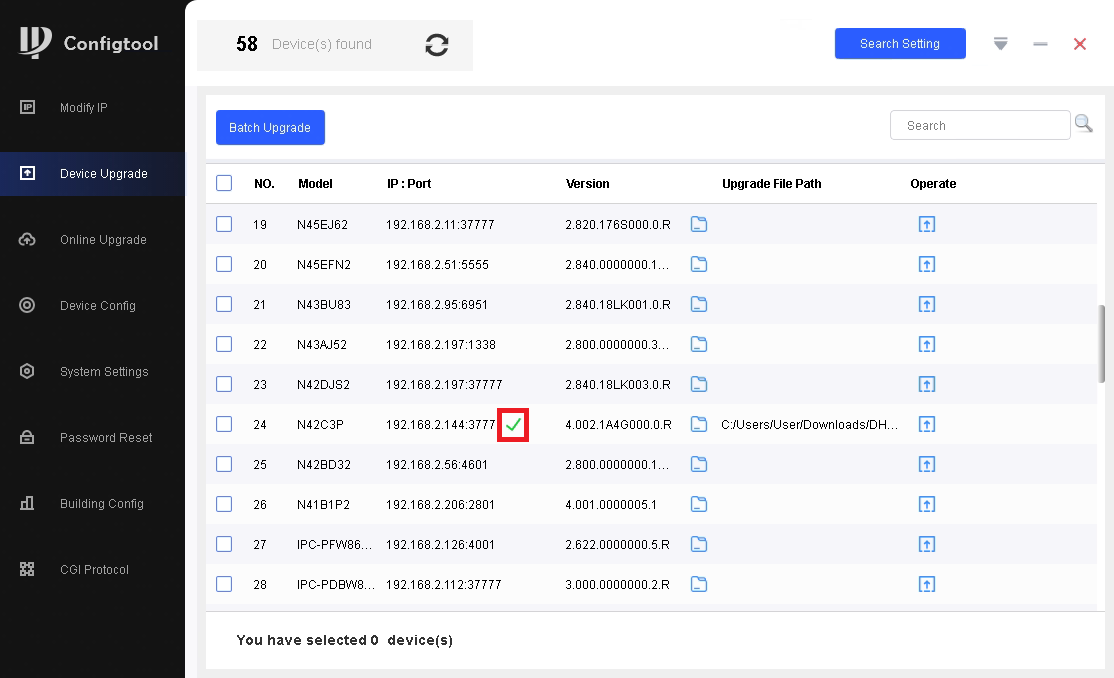

8. Once the device has been successfully upgraded you will see a Green Check Mark next to it in the list

Batch Device Upgrade

1. Open ConfigTool and click on Search Setting at the top

2. Check the boxes for both Current Segment Search and Other Segment Search.
Enter the IP range for the devices you are looking for in Start IP and End IP.
Enter the login information for those devices in Username and Password.
Then click OK at the bottom

3. Click on Device Upgrade on the left.

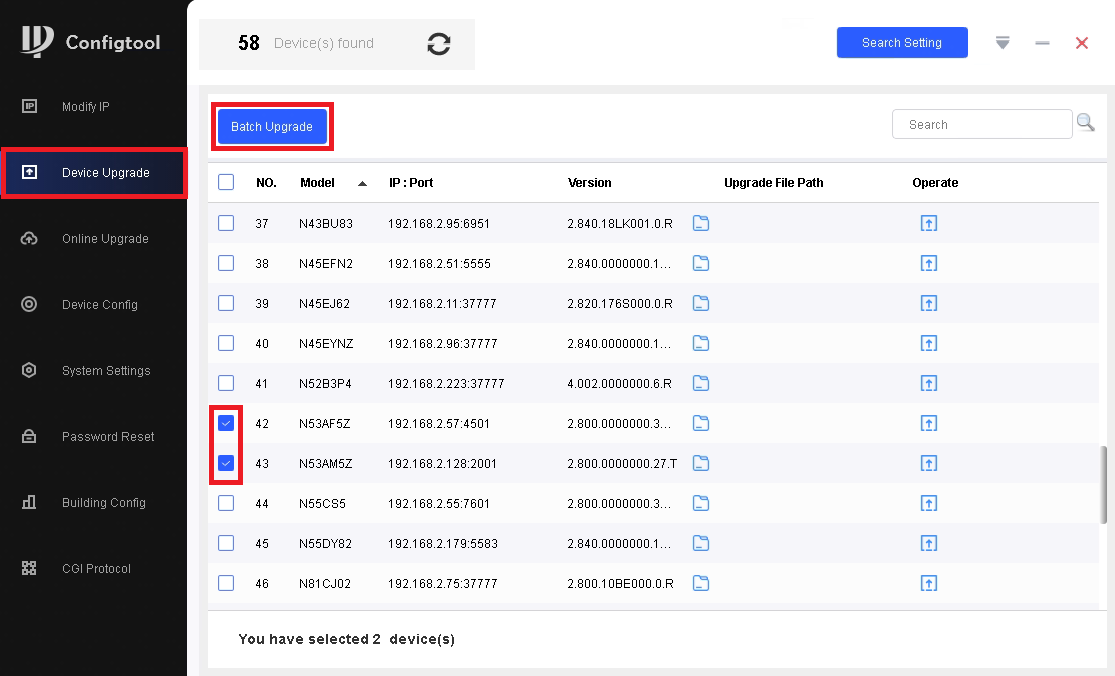

Find the devices you want to upgrade in the list and check the boxes next to them. (Make sure all devices you check require the same firmware.)
Then click on Batch Upgrade at the top
