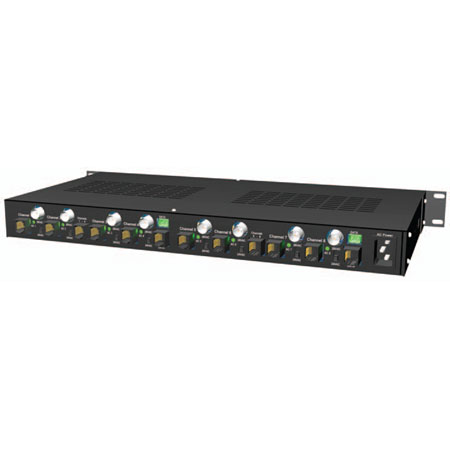

HUBWAY8S Altronix Passive UTP Transceiver Hub w/ Integral Camera Power
SKU: WECHUBWAY8SAltronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation product. Altronix new HubWay8S Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 (or higher) structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19” rack mount chassis which may be wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayA or HubWayD Video Balun/Combiners. An optional HubSat4S Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 (or higher) structured cable back to the HubWay8S. In addition, the HubSat4S provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. The model specifications are model number HUBWAY8S and the Input features are 115VAC 50/60Hz, 2 amp or 230VAC 50/60Hz, 1.25 amp. Primary fuse is rated at 5 amp/250V. The product video - Eight (8) channels of video over twisted pair up to 750 ft. Eight (8) 75 ohm video outputs. The data - RS422/RS485 data inputs. The product power - Individual field selectable 24VAC and/or 28VAC outputs. Unit provides up to 1 amp max. per channel not to exceed a total of 5.5 amp (150VA) maximum current. PTC’s are rated @ 1 amp per channel. Surge suppression. The visual indicators is AC input power indicator and eight (8) individual power LED indicators. The features are illuminated master power disconnect circuit breaker with manual reset. IEC 320 - 3-wire grounded line cord (detachable). Unit can be rack, wall or shelf mounted. 1U EIA 19” rack mounts chassis. The optional accessories are HubSat4S allows transmission of up to four (4) video signals over a single CAT-5 (or higher) structured cable. HubWayA - Video Balun/Combiner for use with 24VAC cameras. HubWayD - video Balun/Combiner for use with 12VDC cameras. Must be a reseller to purchase this product. The Product MADE IN THE U.S.A. and the company is providing lifetime warranty for the product.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Altronix offers a complete line of Safety and Security, Fire, CCTV, Access, Nurse Call, and Automation product. Altronix new HubWay8S Passive UTP Transceiver Hub w/Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 (or higher) structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19” rack mount chassis which may be wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayA or HubWayD Video Balun/Combiners. An optional HubSat4S Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 (or higher) structured cable back to the HubWay8S. In addition, the HubSat4S provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. The model specifications are model number HUBWAY8S and the Input features are 115VAC 50/60Hz, 2 amp or 230VAC 50/60Hz, 1.25 amp. Primary fuse is rated at 5 amp/250V. The product video - Eight (8) channels of video over twisted pair up to 750 ft. Eight (8) 75 ohm video outputs. The data - RS422/RS485 data inputs. The product power - Individual field selectable 24VAC and/or 28VAC outputs. Unit provides up to 1 amp max. per channel not to exceed a total of 5.5 amp (150VA) maximum current. PTC’s are rated @ 1 amp per channel. Surge suppression. The visual indicators is AC input power indicator and eight (8) individual power LED indicators. The features are illuminated master power disconnect circuit breaker with manual reset. IEC 320 - 3-wire grounded line cord (detachable). Unit can be rack, wall or shelf mounted. 1U EIA 19” rack mounts chassis. The optional accessories are HubSat4S allows transmission of up to four (4) video signals over a single CAT-5 (or higher) structured cable. HubWayA - Video Balun/Combiner for use with 24VAC cameras. HubWayD - video Balun/Combiner for use with 12VDC cameras. Must be a reseller to purchase this product. The Product MADE IN THE U.S.A. and the company is providing lifetime warranty for the product. Altronix offers OEM design and manufacturing services to create custom electronics for commercial and industrial applications and The power products and peripherals, feature the quality, reliability and unparalleled customer support that have been associated with Altronix for over 30 years. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency. New additions to our 2015 line include adaptive transmission products that facilitate network connectivity and system expansion, utilizing legacy, as well as state of the art system technology.
