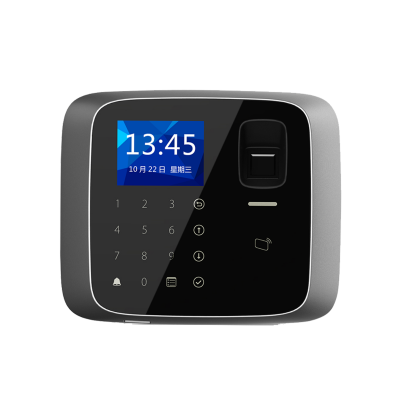

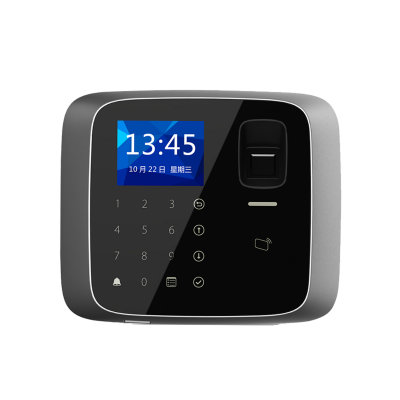

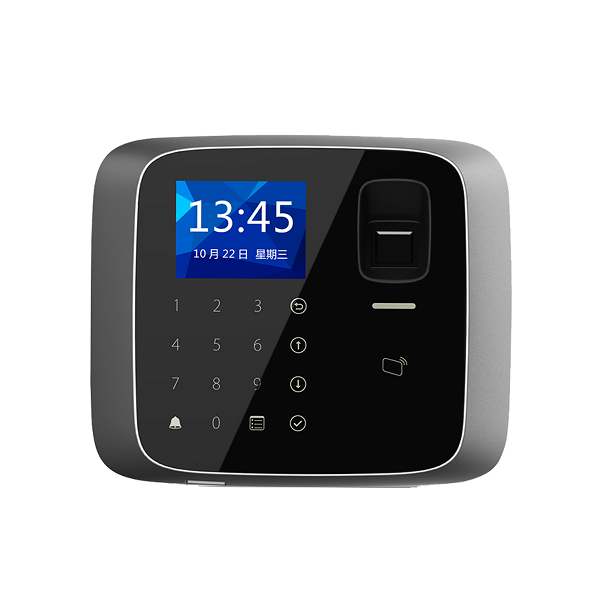

Fingerprint Standalone
> Touch keyboard and LCD display
> Support 30,000 valid cards & 150,000 records
> Support multiple cards(default IC card) (“-D” means ID EM card)
> Support card, password, fingerprint and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-pass back, multi-card open
> Software attendance
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
> Touch keyboard and LCD display
> Support 30,000 valid cards & 150,000 records
> Support multiple cards(default IC card) (“-D” means ID EM card)
> Support card, password, fingerprint and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-pass back, multi-card open
> Software attendance
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
> Support 30,000 valid cards & 150,000 records
> Support multiple cards(default IC card) (“-D” means ID EM card)
> Support card, password, fingerprint and combination
> TCP/IP to PC
> Wiegand or RS-485 interface to reader
> Door time out alarm, intrusion alarm, duress alarm and tamper alarm
> Anti-pass back, multi-card open
> Software attendance
> Support 128 efficient time and holiday schedules
> Watch dog function ensure device free from halting
System | |
Main Processor | 32 Bit |
Memory | 16M |
Input/Output Ports | |
Input | Door sensor x 1, Exit button x 1, Alarm input x 1 |
Output | Relay x 4 (Door lock, Bell, Alarm x 2) |
Card Read | |
Read Format | 13.56MHz(Mifare)/125KHz(“-D” EM, Optional) |
Read Range | 3-8cm (max.) |
Response Time | <0.1s |
Fingerprint Read | |
Response Time | ≤0.5s |
Recognition Time | ≤1.5s |
FAR | ≤0.00004% |
FRR | ≤0.15% |
Capacity | |
Card holders | 30,000 |
Events | 150,000 |
Fingerprint | 3000 |
Function | |
Access control | Anti-pass back, Multi-interlock, Multi-card unlock |
User Management | General, VIP, Guest, Patrol, Black list, Duress |
Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
Schedule Setting | Support 128 groups of schedule, 128 groups of period and 128 groups of holiday period |
Interface | |
To PC | RJ45(10/100M) |
To Reader | Wiegand/ RS485 |
Genreal | |
RTC | Yes |
Voice Prompt | Yes |
Beep Tone | Buzzer |
Keyboard | Sensitive touch keypad with blue backlight |
Power Supply | 9-15DC/200mA |
Working Environment | -30°C-+60°C |
Working Humidity | ≤95% |
Dimension(W×D×H) | 158mm*191mm *32mm |
Weight | 0.7Kg |
ASI1212A(V2)_ASI1212A-D(V2)_Datasheet.pdf
ASI1212A(V2)_ASI1212A-D(V2)_Users_Manual_V1.1.0.pdf
