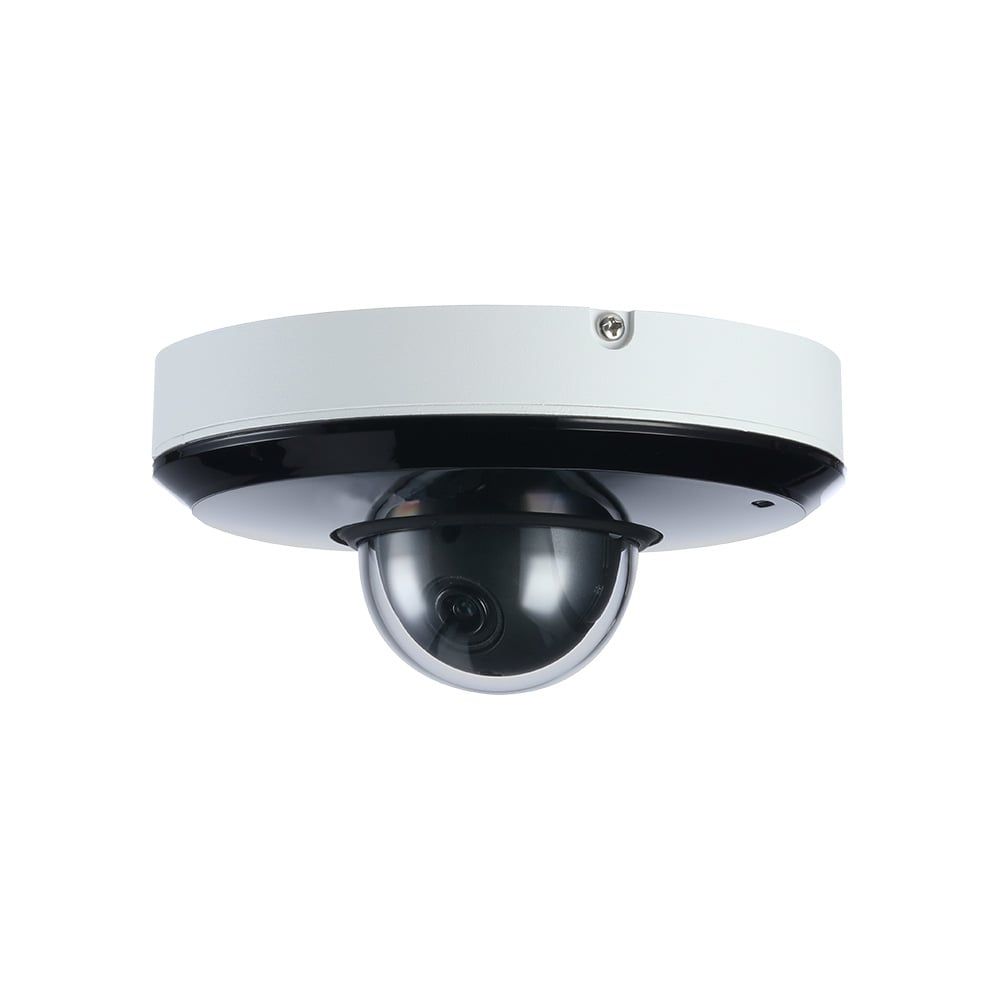

IMX-1AT203G 2MP 3xZOOM Starlight IR PTZ Network Camera CSP-IPPTZ4X-A
        • IMX-1AT203G 2MP 3xZOOM Starlight IR PTZ Network Camera CSP-IPPTZ4X-A
        • IMX-1AT203G 2MP 3xZOOM Starlight IR PTZ Network Camera CSP-IPPTZ4X-A

        IMX-1AT203G 2MP 3xZOOM Starlight IR PTZ Network Camera CSP-IPPTZ4X-A

        iMaxCamPro
        SKU: IMX-1AT203G
          • 35% less
          Market price:$507.50 save $177.50
        • $330.00

        OR

        Specification

        • Matched with particular cameras, beautiful and elegant designed
        • Material SECC & SUS304 Color Silver gray
        • Product Dimensions(L × W × H): 130.4 mm × 170.0 mm × 45.0 mm (5.13" × 6.69" × 1.77")
        • Mast Diameter Φ80–150 mm (Φ3.15"–5.91")
        • Net Weight 1.1 kg (2.43 lb)
        • Load Bearing 10.0 kg (22.05 lb)
        • Operating Temperature –40°C to +60°C (–40°F to +140°F)
        • Operating Humidity <90% (RH)




        Features

        • 1/2.8” 2Megapixel STARVIS™ CMOS
        • Powerful 3x optical zoom
        • Starlight, WDR
        • Max. 25/30fps@1080P
        • IVS
        • IR distance up to 15m
        • IP66

        Image Sensor

        1/2.8” STARVIS™ CMOS

        Image Size

        1920(H) x 1080(V), 2 Megapixels

        RAM/ROM

        512M/128M

        Electronic Shutter

        1/1s~1/30,000s

        Minimum Illumination

        Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)

        S/N Ratio

        > 50dB

        Video Output

        N/A

        Day / Night

        Auto(ICR) / Color / B/W

        BLC Mode

        BLC / HLC / WDR

        White Balance

        Auto, ATW, Indoor, Outdoor, Manual

        Gain Control

        Auto / Manual

        Digital Noise Reduction

        Ultra DNR (2D/3D)

        Privacy Masking

        Up to 24 areas

        Optical Zoom

        3x

        Digital Zoom

        16x

        Electronic Image Stabilization (EIS)

        N/A

        Defog

        Support

        Wide Dynamic Range

        N/A

        DORI Distance

        Detect

        Observe

        Recognize

        Identify

        100.4m(329.4)

        40.2m(131.9ft)

        20.1m(65.9ft)

        10m(32.8ft)

        Focal Length

        2.7mm~8.1mm

        Max. Aperture

        F1.8

        Focus Control

        Auto / Manual

        Angle of View

        H: 105.6° ~ 35.2°

        Close Focus Distance

        100mm~ 1000mm

        Laser Light Control

        NA

        IR LEDs

        3

        IR Distance

        Distance up to 15m (49.2ft)

        IR On/Off Control

        Auto/Manual

        Angle of Laser Light

        NA

        Pan Range

        Pan: 0° ~ 355°

        Pan Speed

        Pan: 0.1° ~70° /s

        Tilt Range

        Tilt: 5° ~ 90°

        Tilt Speed

        Tilt: 0.1° ~30° /s

        Number of Preset

        300

        PTZ Mode

        8 Tour

        Speed Setup

        Human-oriented focal Length/ speed adaptation

        Power Up Action

        Auto restore to previous PTZ and lens status after power failure

        Idle Motion

        Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

        Time Task

        N/A

        Video Compression

        H.265+/H.265/H.264+/H.264

        Video Resolution

        1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240)

        Video Frame Rate

        Main stream: 1080P/720P(1 ~ 25/30fps)
                 Sub stream1: D1/CIF(1 ~ 25/30fps)
                 Sub stream2: 720P/D1/CIF(1 ~ 25/30fps)

        Video Bitrate

        H.265/H.264: 448K ~ 8192Kbps

        Smart Tracking

        Tracking the specified target

        AI Perimeter Protection

        Tripwire, Intrusion, Abandoned/Missing, Face Detection

        Audio Compression

        G.711a/G.711mu/G.726/AAC

        Audio In

        Mic in/Line in

        Audio Out

        Line out

        Ethernet

        RJ-45 (10Base-T/100Base-TX)

        Network Protocol

        IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP,UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP,SMTP,NTP,DHCP,DNS,PPPOE,DDNS,FTP,IP Filter,QoS,Bonjour,802.1x

        Network Interoperability

        ONVIF, PSIA, CGI

        Streaming Method

        Unicast / Multicast

        Network Max. Users

        20 users

        Storage

        NAS (Network Attached Storage), Local PC for instant recording

        Storage Card

        Micro SD card 256GB

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS

        Mobile

        iPhone, Android

        Certifications

        CE: EN55032/EN55024/EN50130-4
         FCC: Part15 subpartB,ANSI C63.4- 2014
         UL: UL60950-1+CAN/CSA C22.2,No.60950-1

        RS485

        N/A

        Power Supply

        DC 12V/1.5A, PoE(802.3af)

        Power Consumption

        7.8W, 10.5W (IR on)

        Operating Temperature

        -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

        Ingress Protection

        IP66

        Dimensions

        128mm x 63mm

        Weight

        Net Weight 0.49kg(1.08lb) Gross Weight 0.73kg(1.6lb)






          • SKU
            IMX-1AT203G
          • Weight
            1.27 lbs
        • Manufacturer
          iMaxCamPro
        • Camera Type
          PTZ
        • Camera Signal
          IP
        • Remote Login Support
          No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
