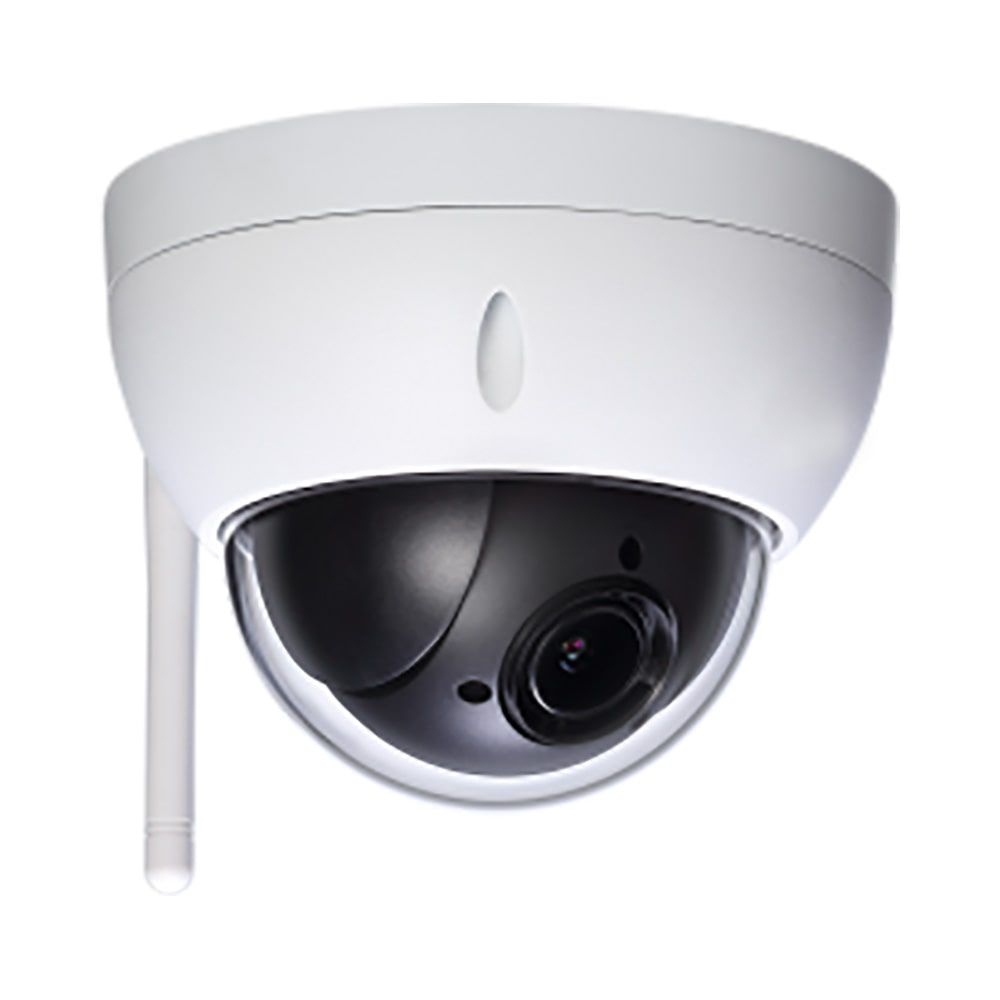

IMX-22T204G-W 2MP 4x PTZ Wi-Fi Network Security Camera

iMaxCamPro
SKU: IMX-22T204G-W
    • 43% less
    Market price:$618.30 save $268.30
  • $350.00

OR

Features

  • · 1/2.7” 2Megapixel CMOS
  • · Powerful 4x optical zoom
  • · Support Triple-streams encoding
  • · WDR, Day/Night(ICR), Ultra DNR
  • · Max. 25/30fps@1080P
  • · IVS
  • · Support Wifi
  • · IP66, IK10

Image Sensor

1/2.7” CMOS

Image Size

1920(H) x 1080(V),

RAM/ROM

256M/128M

Electronic Shutter

1/1s~1/30,000s

Minimum Illumination

Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6

S/N Ratio

More than 50dB

Smart IR

Support

Focal Length

2.7mm~11mm

Angle of View

H: 112.5° ~ 30°

Max. Aperture

F1.6

Optical Zoom

4x

Close Focus Distance

100mm~ 1000mm

DORI Distance

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

120m(394ft)

48m(157ft)

24m(79ft)

12m(39ft)

Pan / Tilt / Rotation

Pan: 0° ~ 355°; Tilt: 0° ~ 90°

Video Compression

H.264+/H.264/MJPEG

Streaming Capability

3 streams

Video Resolution

1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)

Video Frame Rate

Main stream: 1080P/720P/D1 (1 ~ 25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)

Video Bitrate

CBR/VBR

Day / Night

Auto(ICR) / Color / B/W

Wide Dynamic Range

120dB

BLC Mode

Yes

HLC

Yes

White Balance

Auto(ICR) / Color / B/W

Gain Control

Auto/Manual

Digital Noise Reduction

Ultra DNR (2D/3D)

Motion Detection

Support

Region of Interest

Support

Defog

Yes

Digital Zoom

16x

Flip

180°

Privacy Masking

Up to 24 areas

General Function

IVS: Tripwire, Intrusion, Abandoned /Missing, Face Detection

Ethernet

RJ-45 (10Base-T/100Base-TX)

Network Protocol

IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,
 ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
 DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Network Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Network Max. Users

20

Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB

Storage Card

Micro SD, up to 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Mobile

iPhone, Android

Certifications

CE: EN55032/EN55024/EN50130-4
 FCC: Part15 subpartB,ANSI C63.4- 2014
 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Power Supply

DC 12V/1.5A

Power Consumption

10W

Operating Temperature

-30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection

IP66

Dimensions

Φ122.8 (mm) x 95.9 (mm)

Weight

Net Weight 0.66kg(1.46lb) Gross Weight 0.71kg(1.57lb)




    • SKU
      IMX-22T204G-W
    • Weight
      1.27 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
