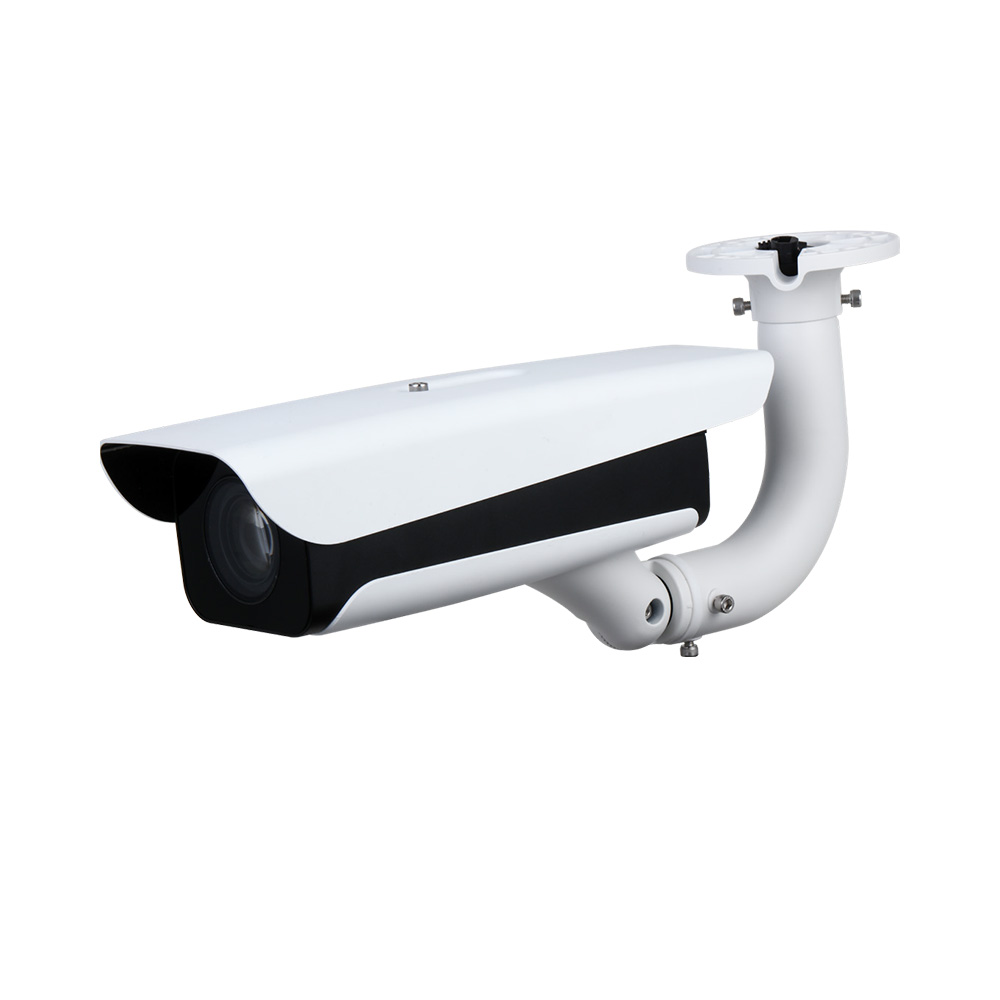

IMX-LPR237-6M-IRLZF1050-B License Plate Security Camera 2MP
Features
- Vehicle Detection: Vehicle capture rate ≥99%
- Vehicle Recognition: Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without plate. Vehicle recognition rate ≥90%
- Illuminator: 6 IR illuminators (brightness adjustable)
- Video Encoding: H.264B/H.264M/H.264H/H.265/MJPEG
- Storage: 1 built-in TF card port.up to 64G
- Max IR Distance: 98ft
- recognition rate ≥90%
- Alarm Input: 3
- Alarm Output: 3
- Audio Input: 1
- Audio Out: 1
LICENSE PLATE RECOGNITION TECHNOLOGY
What is License Plate Recognition and why is it Important?
- -License Plate Recognition detects and recognizes vehicle license plates.
- -Parking lot management, or simple monitoring of entrance and exit ways for vehicles has become increasingly complex in today’s world due to high levels of traffic.
- -ENS License Plate Recognition technology provides an effective solution for a wide range of applications, including commercial real-estate, retail, educational institutions, gated communities, factory, gaming and retail environments.
License Plate Recognition can solve several challenges:
- -Protection of people and property
- -Control of vehicle entrance and exit
- -High costs due to physical security and guardhouses
- -Remote live video for identity verification
- -Remote gate open processes at entranceways
- -Set “authorized” entrant improves ease of management
License Plate Recognition Camera:
- -Alarm notifications are sent when unauthorized vehicles are detected.
- -Camera can detect vehicles and will automatically capture the license plate in real-time. This allows for a comparison between the license plate and the predefined list. Once the comparison is conducted, an action will take place:
- -License plate is recognized, authorizing entry and triggering a gate to open.
- -OR License plate is not recognized, not allowing entry.
Automatic License Plate Recognition and Recording in Real-Time
Effective Record Retention
Efficient Parking Management with Vehicle Access Control
| Image Sensor | 1/1.8'' CMOS |
|---|---|
| Image Size | 1920 × 1080 (OSD black strip excluded) |
| Electronic Shutter | 1/50–1/10000, auto or manual |
| Minimum Illumination | Illuminator: 6 IR illuminators (brightness adjustable) |
| IR LEDs | 6 |
| Smart IR | Support |
| IR Distance | 30m (98ft) |
| Focal Length | 10mm–50mm (0.39''–1.97'') |
| Video Compression | H.265/H.264M/H.264H/H.264B/MJPEG |
| Video Resolution | Main stream: 1080P (1920 × 1080) / 720P (1280 × 720) Sub stream: 720P (1280 × 720) / D1 (704 × 576, 704 × 480) / CIF (352 × 288, 352 × 240) |
| Video Frame Rate | PAL: Main stream (1920× 1080@25fps, 1280 × 720@25fps), sub stream: (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps) NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps) |
| Video Bitrate | H.264B: 32Kbps–32768Kbps H.264M: 32Kbps–32768Kbps H.264H: 32Kbps–32768Kbps H.265: 32Kbps–32768Kbps MJPEG: 512Kbps–65536Kbps |
| Wide Dynamic Range | 96dB |
| White Balance | Full auto; auto color temperature range; customized color temperature |
| Digital Noise Reduction | 3DNR |
| Audio In | 1-channel RCA port |
| Audio Out | 1-channel RCA port |
| Alarm In | Alarm Input 3, optocoupler input (switch quantity) |
| Alarm Out | 3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriers |
| General Function | Video Metadata: Yes Intelligent Track Frame Intelligent frame display. Supports displaying vehicle plate and vehicle path |
| Intelligent Identification | Vehicle Detection: Vehicle capture rate ≥99% |
| VCA Detection | Vehicle Recognition: Supports recognizing vehicle type, vehicle logo, vehicle color, license plate, and vehicle without the plate. Vehicle recognition rate ≥90% |
| Ethernet | 1 Ethernet Port 1 100/1000M Ethernet port (RJ45) |
| Storage | 1 built-in TF card port. Kingston 16G, 32G & 64G; Manufactuer 16G, 32G & 64G; SanDisk 16G, 32G & 64G |
| Storage Card | Micro SD, up to 64GB |
| Mobile | iPhone, Android |
| Certifications | 47 CFR FCC Part 15 SubpartB, Class B EN 55032:2015, Class B EN61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010+A1:2015 EN55035:2017 EN 50130-4:2011+A1:2014 |
| RS485 | 2 |
| Power Supply | 12V DC, 24V AC, PoE+ |
| Power Consumption | < 20W |
| Operating Temperature | Working Temperature −30°C to +65°C (−22°F to +149 °F) Working Humidity 10%–90% (no condensation) |
| Ingress Protection | IP67 |
| Dimensions | 370.4mm×124.7mm×105.7mm (14.58''×4.91''×4.16'') |
| Weight | Net Weight 1.7kg (3.75lb) Gross Weight 2.5kg (5.51lb) |
