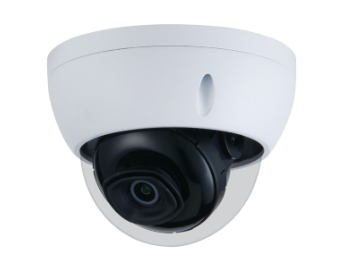

4MP Lite AI IR Fixed focal Dome Network Camera

        4MP Lite AI IR Fixed focal Dome Network Camera

        iMaxCamPro
        SKU: WECIIPC-HDBW3441E-AS

        > 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
        > Outputs max. 4MP (2688 × 1520)@30 fps
        > H.265 codec, high compression rate, low bit rate
        > Built-in IR LED, max. IR distance: 50 m
        > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
        > Intelligent detection: Intrusion, tripwire
        > Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
        > Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
        > 12V DC/POE power support
        > IP67, IK10 protection
        > SMD

        > without Logo,English firmware
        >100% original products manufactured by IMAXCAMPRO

          • 50% less
          Market price:$297.00 save $148.50
        • $148.50

        OR

        > 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
        > Outputs max. 4MP (2688 × 1520)@30 fps
        > H.265 codec, high compression rate, low bit rate
        > Built-in IR LED, max. IR distance: 50 m
        > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
        > Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
        > Intelligent detection: Intrusion, tripwire
        > Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
        > Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
        > 12V DC/POE power support
        > IP67, IK10 protection
        > SMD

        > without Logo,English firmware
        >100% original products manufactured by IMAXCAMPRO

        Camera

        Image Sensor

        1/2.7”4Megapixel progressive CMOS

        Effective Pixels

        2688 (H) ×1520 (V)

        ROM

        128 MB

        RAM

        512 MB

        Scanning System

        Progressive

        Electronic Shutter Speed

        Auto/Manual 1/3 s–1/100000 s

        Min. Illumination

        0.005 Lux@F1.6

        IR Distance

        50 m (164.0 ft)

        IR On/Off Control

        Auto/Manual

        IR LEDs Number

        3 (IR LEDs)

        Pan/Tilt/Rotation Range

        Horizontal: 0°–355°; vertical: 0°–65°; rotation: 0°–355°

        Lens

        Lens Type

        Fixed focal

        Mount Type

        M12

        Focal Length

        2.8 mm; 3.6 mm; 6 mm

        Max. Aperture

        F1.6

        Field of View

        2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
        3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100°
        6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°

        Iris Type

        Fixed aperture

        Close Focus Distance

        2.8 mm: 0.9 m (3.0 ft)
        3.6 mm: 1.6 m (5.3 ft)
        6 mm: 3.2 m (10.5 ft)

        DORI Distance

        Lens

        Detect

        Observe

        Recognize

        Identify

        2.8mm

        56.0 m

        (183.7 ft)

        22.4 m

        (73.5 ft)

        11.2 m

        (36.8 ft)

        5.6 m

        (18.4 ft)

        3.6mm

        80.0 m

        (262.5 ft)

        32.0 m

        (105.0 ft)

        16.0 m

        (52.5 ft)

        8.0 m

        (26.3 ft)

        6mm

        120.0 m (393.7 ft)

        48.0 m

        (157.5 ft)

        24.0 m

        (78.7 ft)

        12.0 m (39.4ft)

        Professional, Intelligent

        Perimeter Protection

        Tripwire; intrusion (Recognition of human and vehicle)

        Intelligent Search

        Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

        Video

        Video Compression

        H.265; H.264; H.264H; H.264B; MJPEG

        Smart Codec

        Yes

        Video Frame Rate

        Main stream (2688 × 1520@1–25/30 fps)
        sub stream (704 × 576@1–25/30 fps)
        third stream (1280 × 720@1–25/30 fps)

        Stream Capability

        3 streams

        Resolution

        4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

        Bit Rate Control

        CBR/VBR

        Video Bit Rate

        H.264: 3 Kbps–8192 Kbps
        H.265: 3 Kbps–8192 Kbps

        Day/Night

        Auto(ICR)/Color/B/W

        BLC

        Yes

        HLC

        Yes

        WDR

        120 dB

        White Balance

        Auto/natural/street lamp/outdoor/manual/regional custom

        Gain Control

        Auto/Manual

        Noise Reduction

        3D DNR

        Motion Detection

        OFF/ON (4 areas, rectangular)

        Region of Interest(RoI)

        Yes (4 areas)

        Smart IR

        Yes

        Image Rotation

        0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.)

        Mirror

        Yes

        Privacy Masking

        4 areas

        Audio

        Audio Compression

        G.711a; G.711Mu; G726; AAC

        Network

        Network

        RJ-45 (10/100 Base-T)

        Protocol

        IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;
        RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

        Interoperability

        ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

        Scene Self-adaptation

        Yes

        User/Host

        20 (Total bandwidth: 64 M)

        Edge Storage

        FTP; SFTP; Micro SD Card (support max. 256 G); Imaxcampro Cloud; NAS

        Browser

        IE: IE8, IE9, IE11

        Chrome

        Firefox

        Management Software

        Smart PSS, DSS, DMSS

        Mobile Phone

        IOS; Android

        Certification

        Certifications

        CE-LVD: EN60950-1
        CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
        FCC: 47 CFR FCC Part 15, Subpart B
        UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

        Port

        Audio Input

        1-channel (RCA port)

        Audio Output

        1-channel (RCA port)

        Alarm Input

        1 channel in: 5mA 3V–5V DC

        Alarm Output

        1 channel out: 300mA 12V DC

        Power

        Power Supply

        12V DC/PoE (802.3af)

        Power Consumption

        <7.3W

        Environment

        Operating Conditions

        -40°C to +60°C (-40°F to +140°F)/less than≤95%

        Strorage Conditions

        -40°C to +60°C (-40°F to +140°F)

        Ingress Protection

        IP67; IK10

        Structure

        Casing

        Metal + Plastic

        Dimensions

        81 mm × Φ109.9 mm (3.2" × Φ4.3")

        Net Weight

        378 g (0.8 lb)

        Gross Weight

        523 g (1.2 lb)



          • SKU
            WECIIPC-HDBW3441E-AS
          • Weight
            1.2 lbs
        • Manufacturer
          iMaxCamPro
        • Shipping Lead Time
          Ships Same Day
