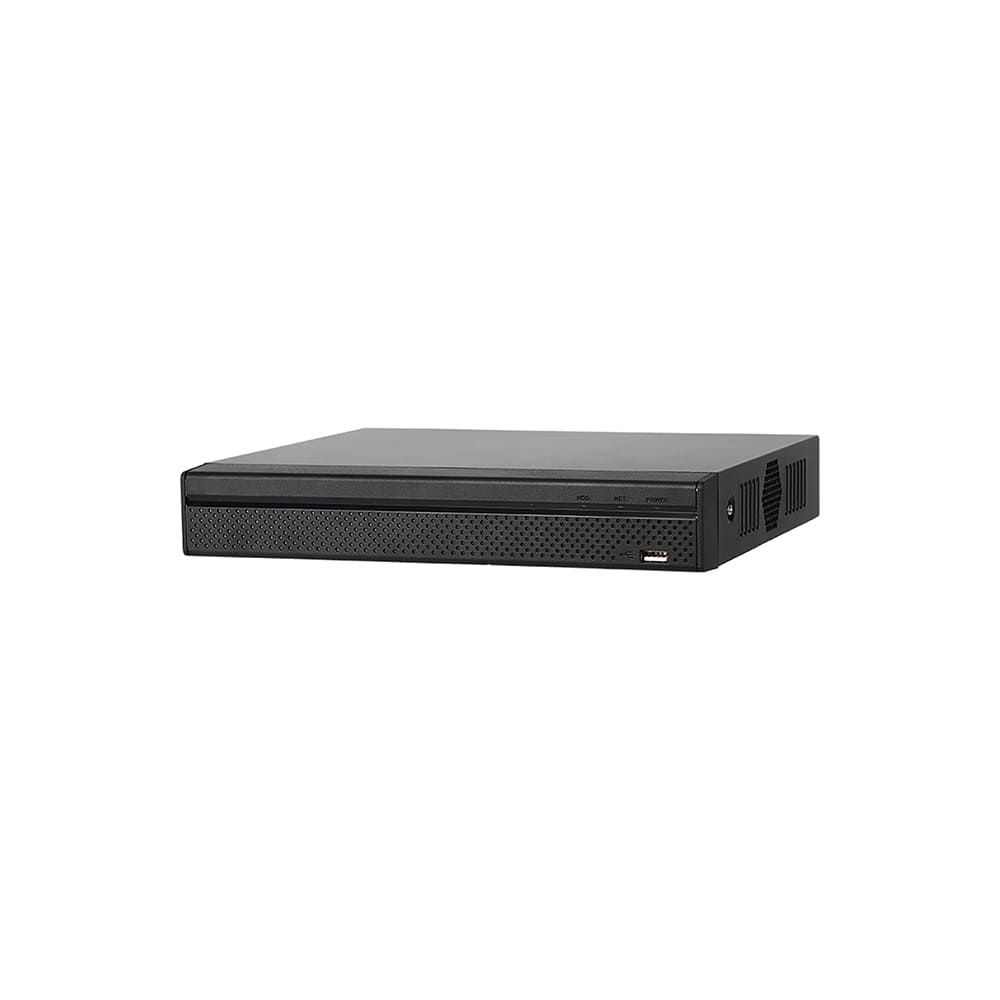

iMaxCamPro NVR301HS-04/P-4KS2 | 4 Channel Compact 1U 4PoE 4K&H.265 Lite Network Recorder MNR8041X-4

iMaxCamPro
SKU: WEC301HS-04/P-4KS2

4 Channel Compact 1U 4PoE 4K&H.265 Lite Network Video Recorder, H.265/H.264, Two-way talk 1-in/1-out, 30fps@4K, 1 HDMI, 1 VGA, 4CH playback, 1 RJ-45, 4 PoE ports, 1 SATA, 2 USB ports, DC48V/1.5A

Features

  • H.265/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 4PoE ports
  • Support ANR technology to enhance the storage reliability when the network breaks down
    • 24% less
    Market price:$315.00 save $77.00
  • $238.00

OR

4 Channel Compact 1U 4PoE 4K&H.265 Lite Network Video Recorder, H.265/H.264, Two-way talk 1-in/1-out, 30fps@4K, 1 HDMI, 1 VGA, 4CH playback, 1 RJ-45, 4 PoE ports, 1 SATA, 2 USB ports, DC48V/1.5A

Features

  • H.265/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • HDMI/VGA simultaneous video output
  • Support IPC UPnP, 4PoE ports
  • Support ANR technology to enhance the storage reliability when the network breaks down
More Information
System CompressionH.265/ H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Output

1 HDMI, 1 VGA

Video ResolutionHDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720
IP Camera Input4CH
Display Split4/8 Channel
Recording Resolution8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
Recording RateN/A
Bit Rate16Kbps ~ 20Mbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio In1CH
Audio Out1CH
2 Way Audio1 Channel Input, 1 Channel Output, RCA
Alarm InN/A
Alarm OutN/A
Trigger EventsRecording, PTZ, Tour, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm Relay OutputN/A
Playback Channels1/4
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network
PerformanceMax 12 face pictures /sec processing 2 channel video stream face recognition 8 channel picture stream face recognition ( with FD camera)
Stranger ModeDetect strangers' faces(not in device's face database). Similarity threshold can be set manually.
AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries®ions and state can be added to each face picture.
Database ApplicationEach database can be applied to video channels independently.
Network Interface1 RJ-45 Port (10/100Mbps)
PoE Ports4 Ports(IEEE802.3at/af)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, SNMP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Network Max. Users128 users
MobileiPhone, Android
USB2 ports (1 Rear USB2.0, 1 Front USB2.0)
RS485N/A
RS232N/A
Internal HDD1 SATA III Port, Up to 6 TB capacity for each HDD
e-SATAN/A
Power SupplyDC48V/1.5A
Power ConsumptionNVR: <7.5W (Without HDD) PoE: Max 25.5W for single port, 50W in total
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
DimensionsCompact 1U, 260mm×224.9mm×47.6mm (10.2" x 8.9" x 1.9")
WeightNet Weight: 0.8kg (1.76 lb) (without HDD) Gross Weight: 1.6kg(3.53 lb)(without HDD)
    • SKU
      WEC301HS-04/P-4KS2
    • Weight
      3.75 lbs
  • Manufacturer
    iMaxCamPro
  • Number of Channels
    4 Channels
  • Recorder Type
    NVR
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
