How To Setup Intrusion Detection

Description

This article will show you how to setup the Intrusion IVS feature on a supported device

Prerequisites

  • Supported device with Intrusion feature

Video Instructions

Step by Step Instructions

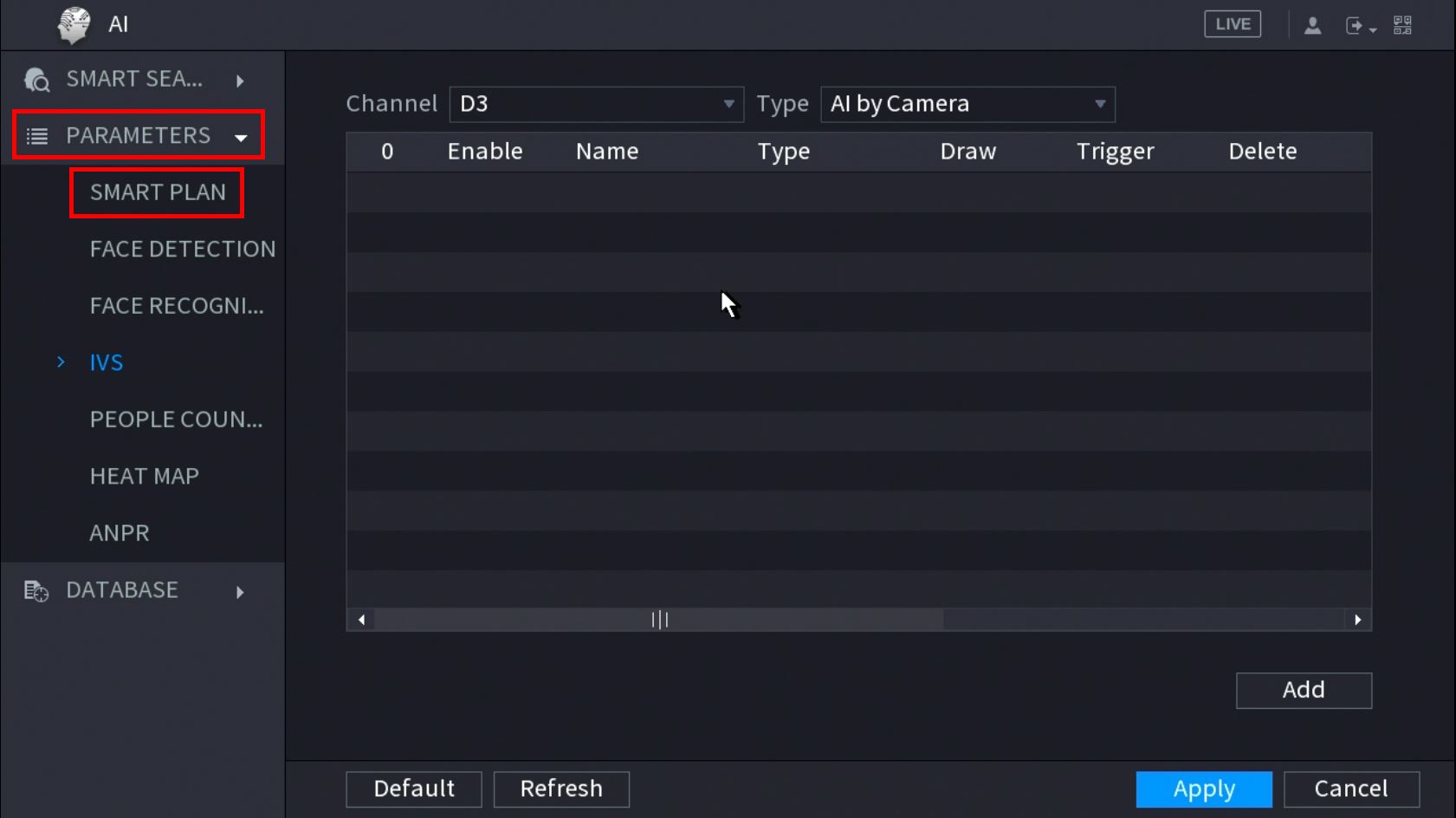

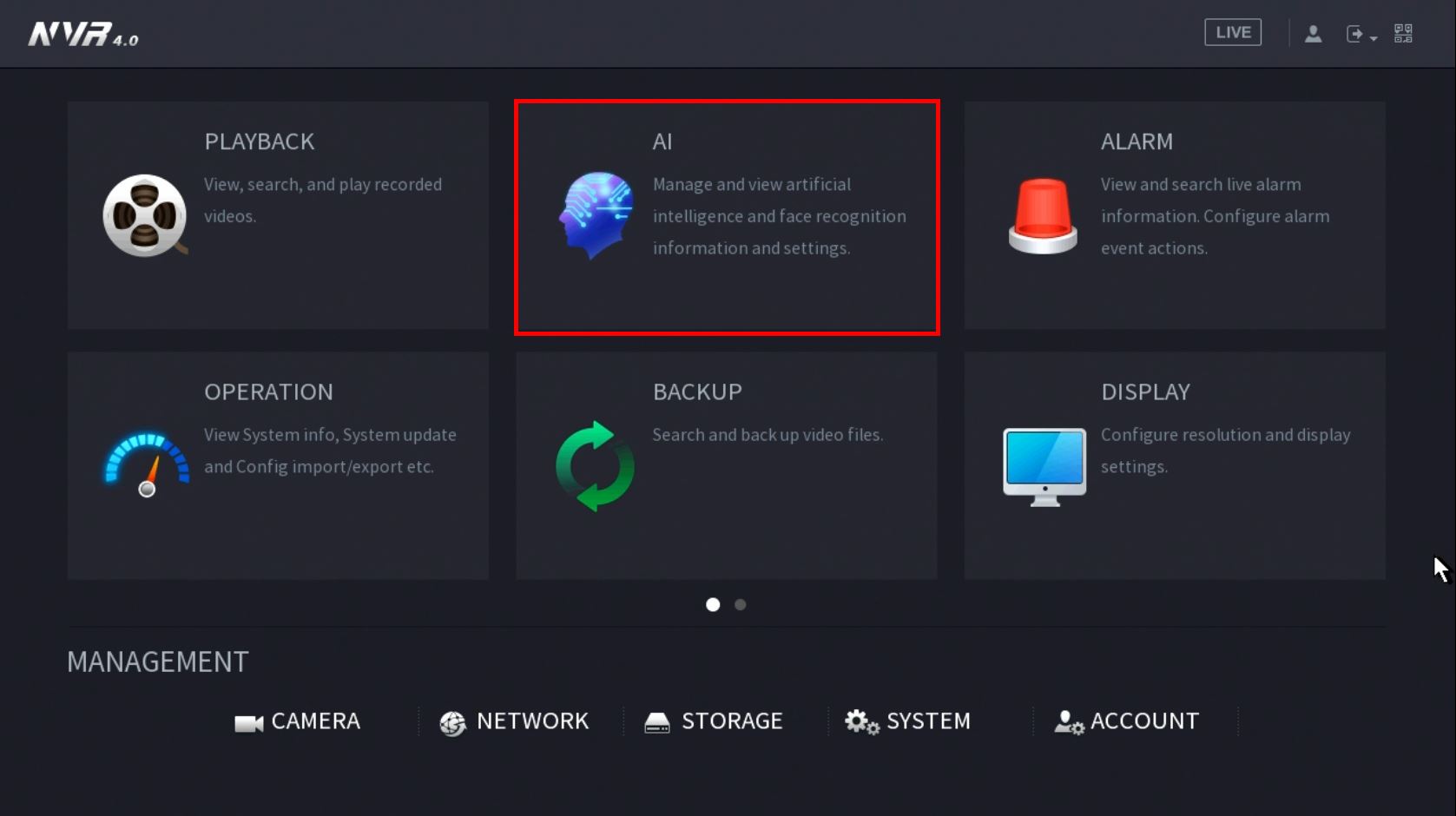

1. From the Main Menu click AI2. Click Parameters > Smart Plan

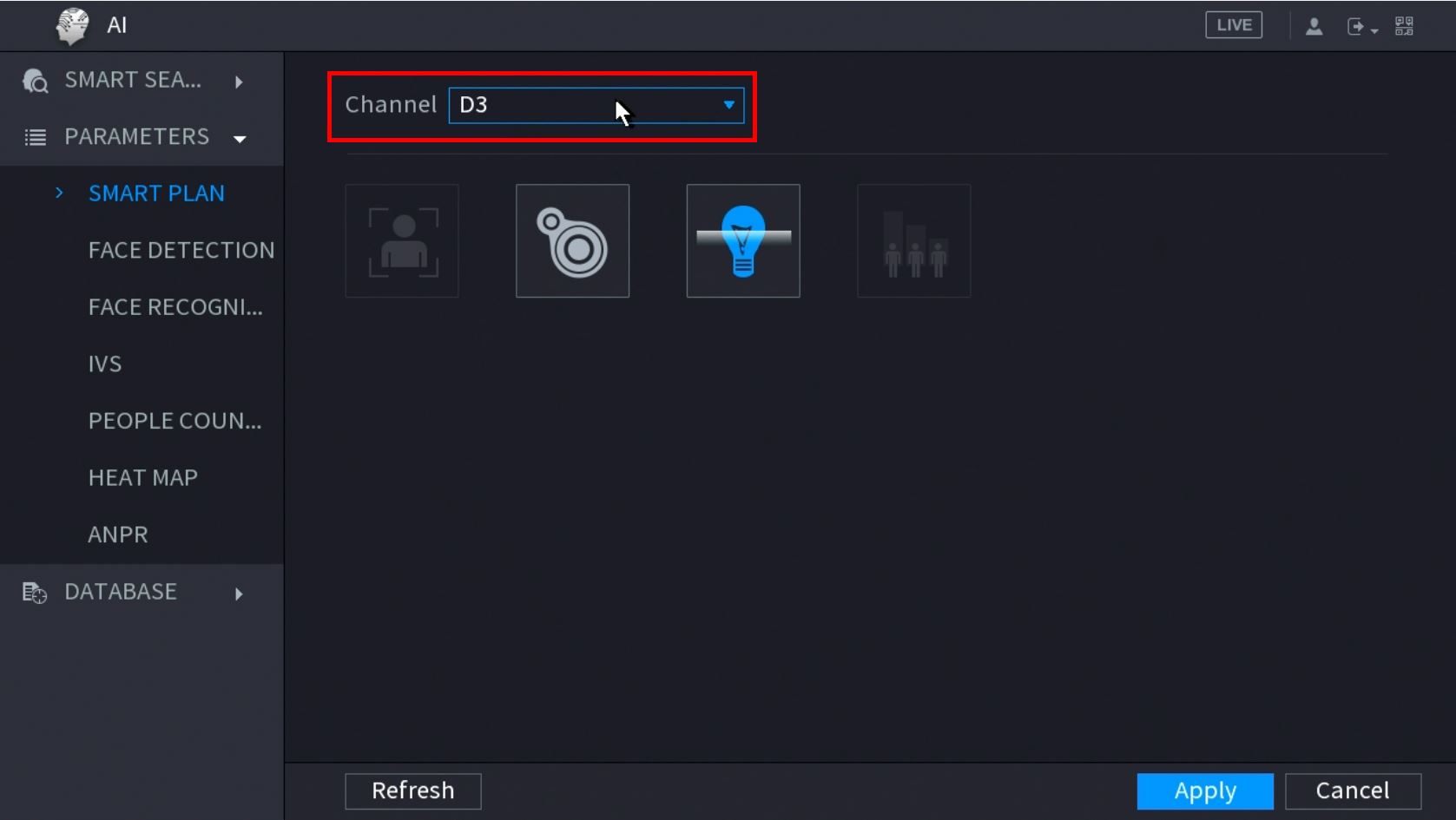

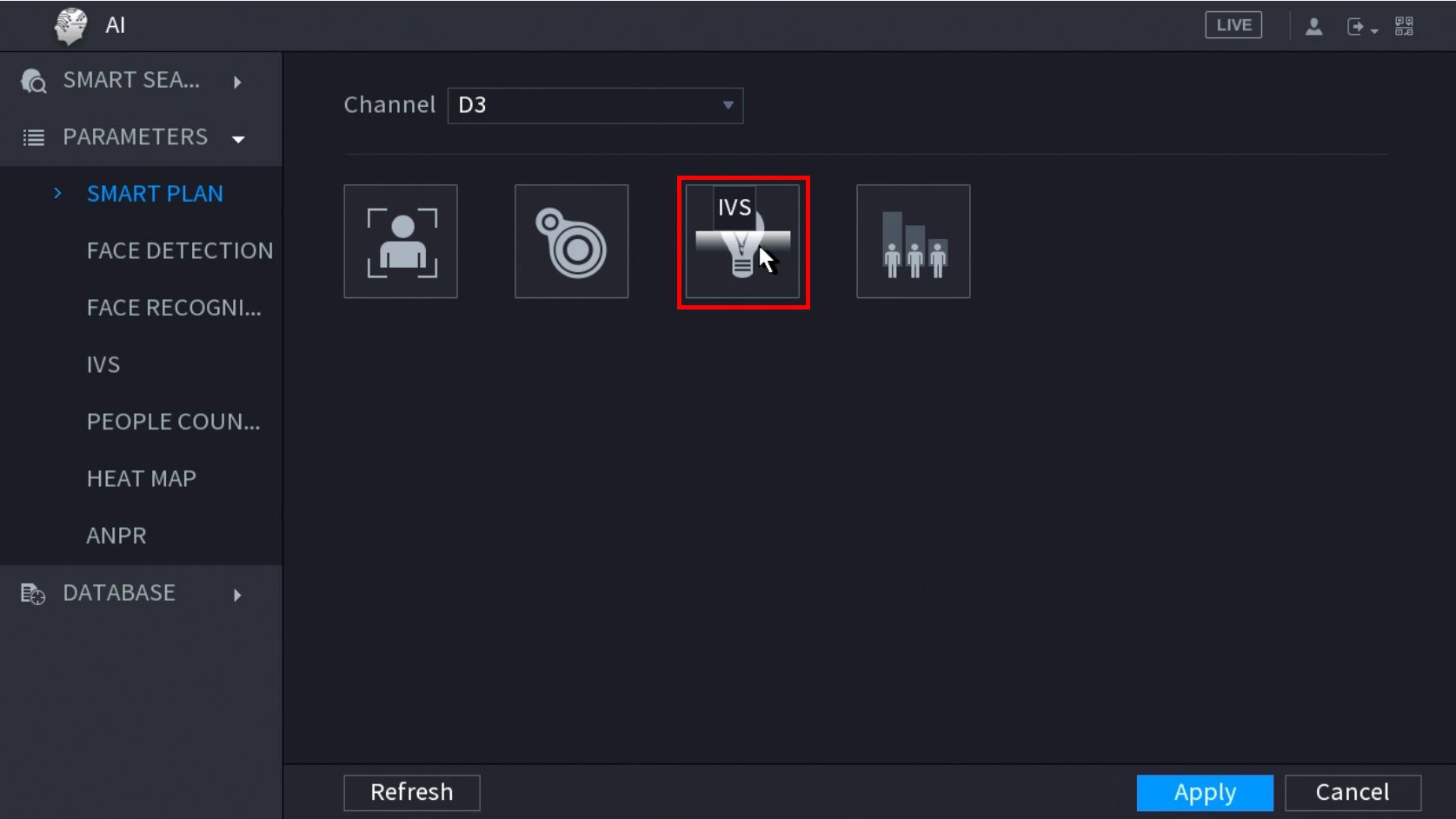

3. Use the drop down box to select the Channel 4. Click the IVS icon to enable. The icon will highlight when selected.

Click Apply

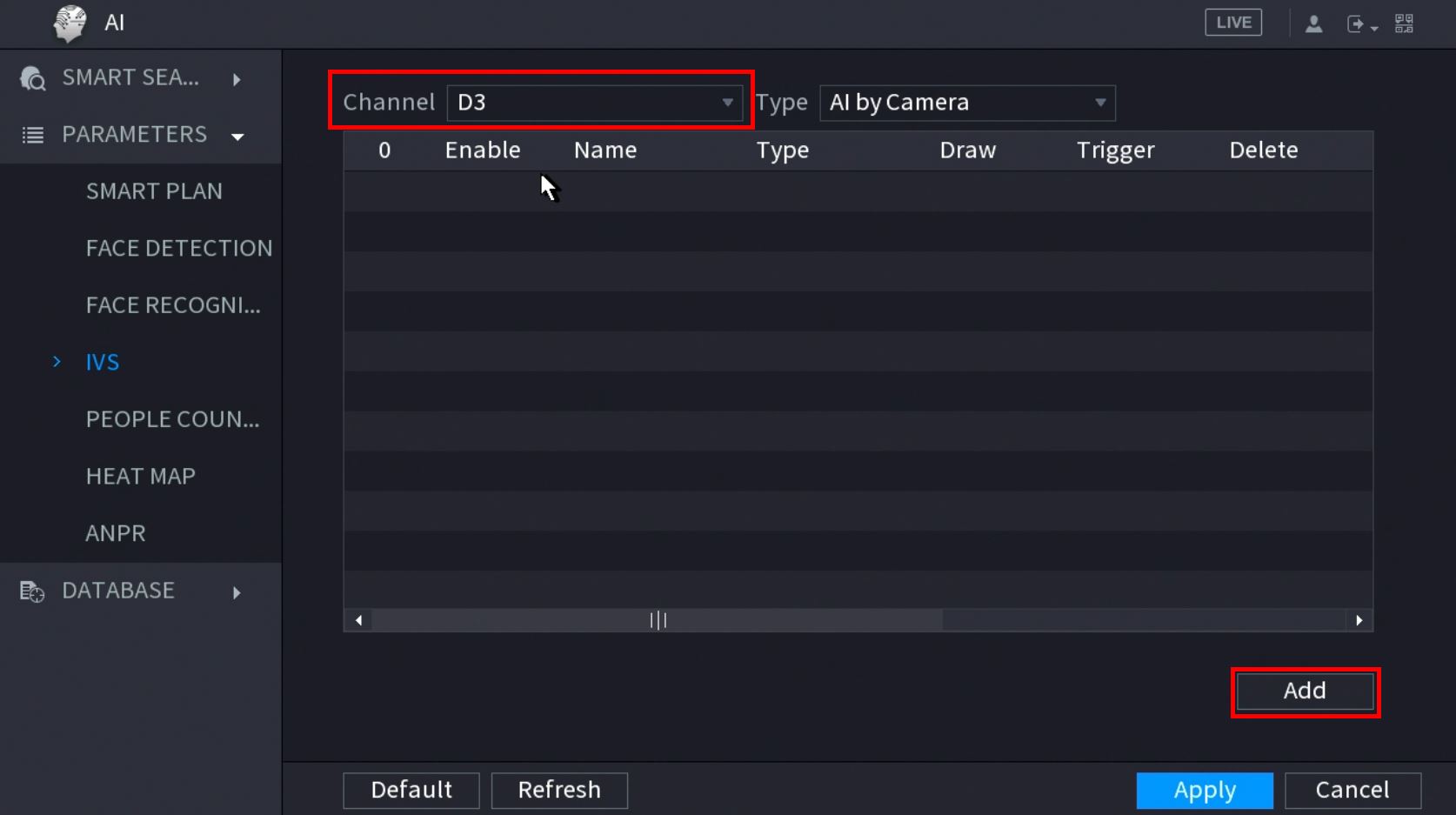

5. Click Parameters > IVS 6. Use the drop-down box to select the Channel

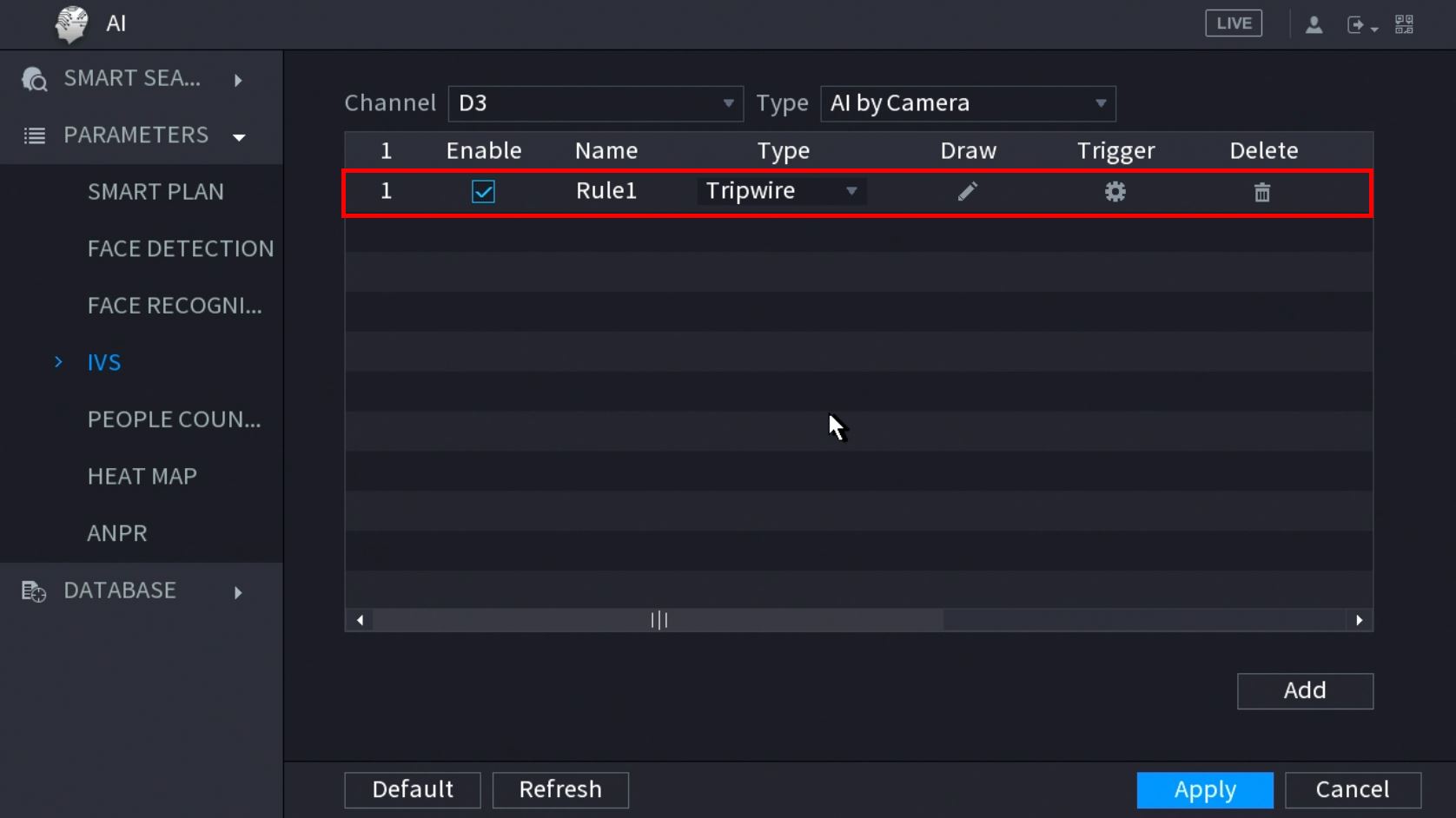

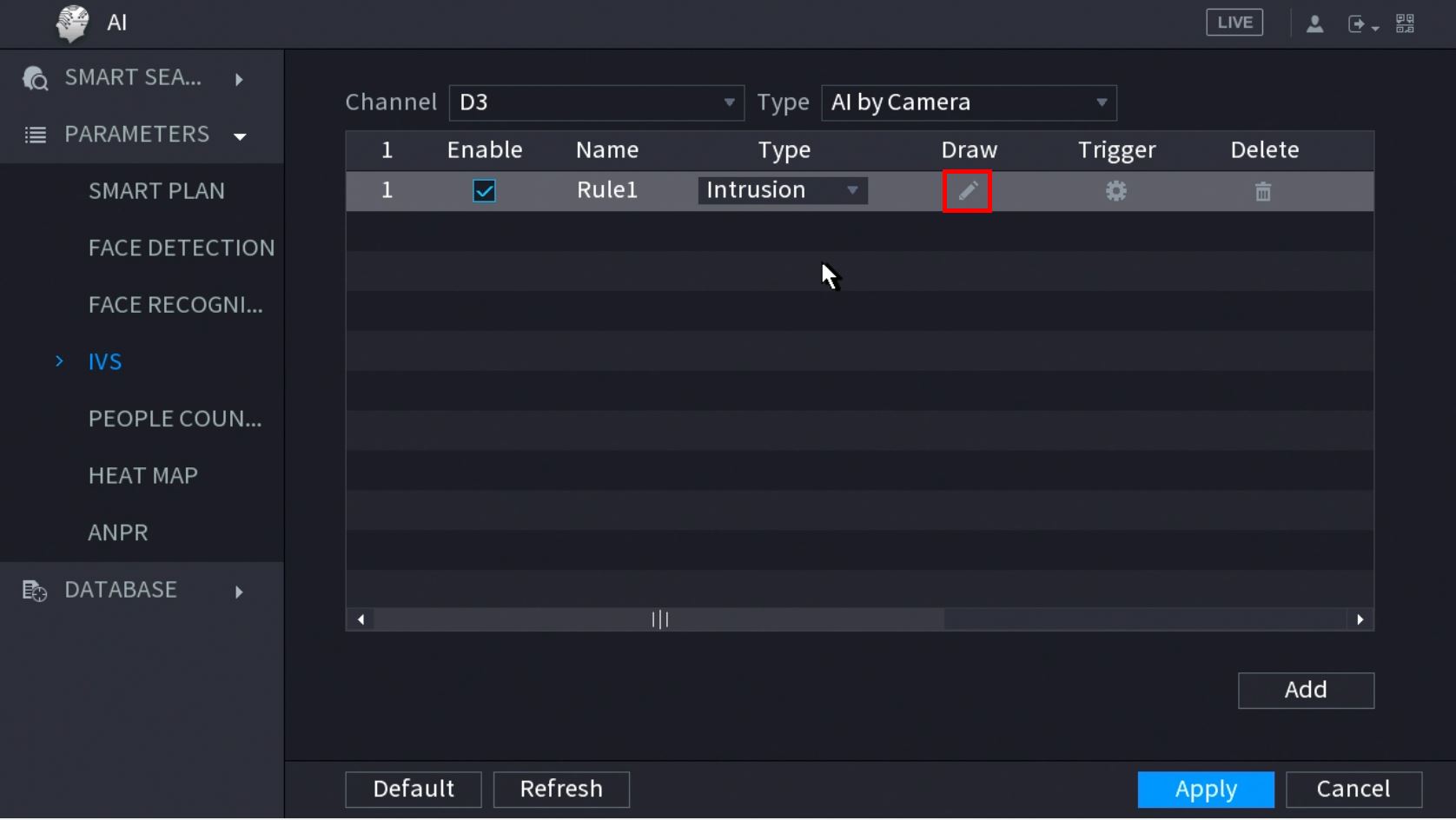

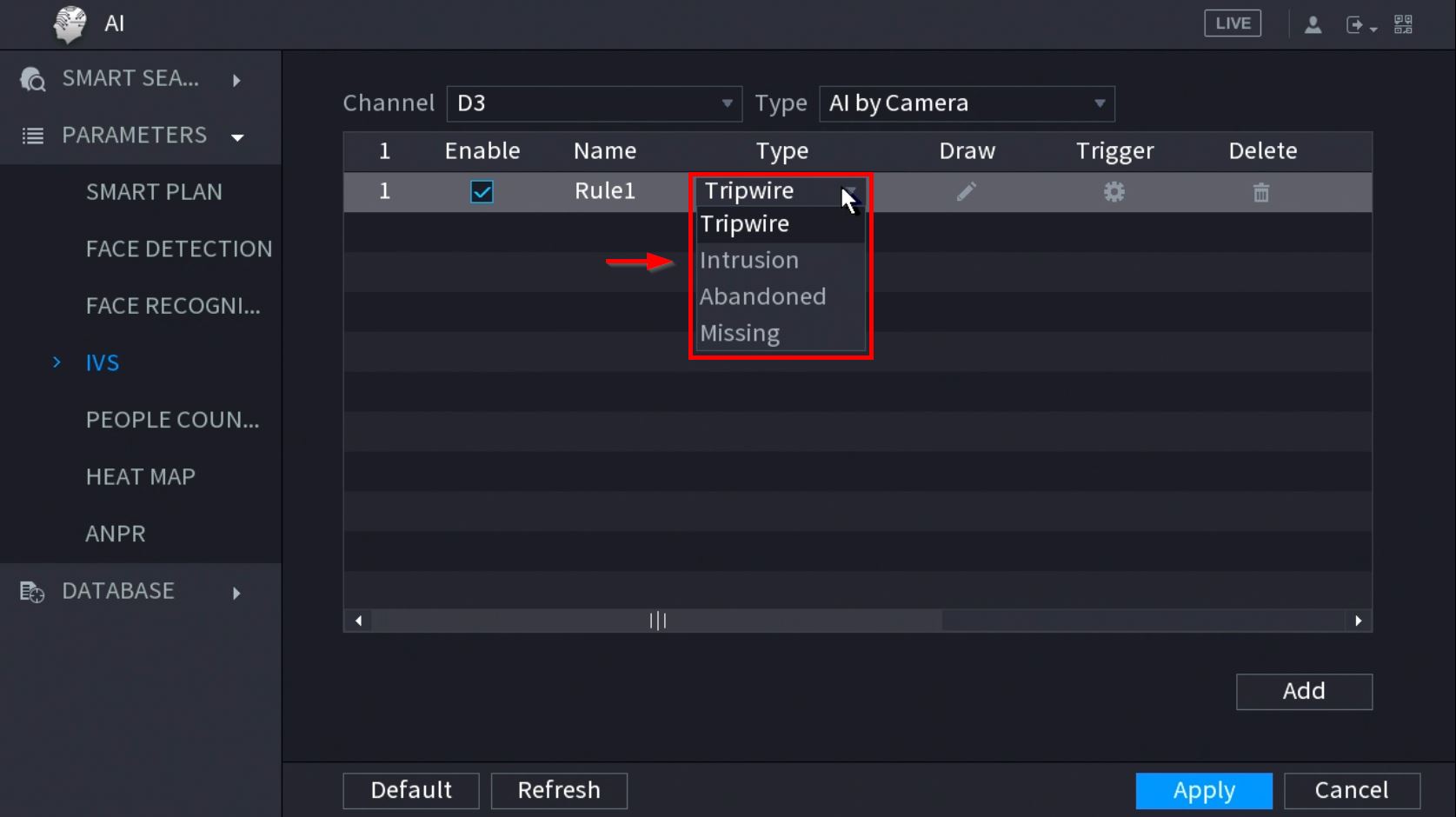

Then click Add in the lower right side of the screen to Add an IVS rule8. The created rule will appear in the list 9. Use the dropdown box to change the Rule Type to "Intrusion" 10. Click the Pencil icon to draw the Intrusion rule 11. The Channel will fullscreen.

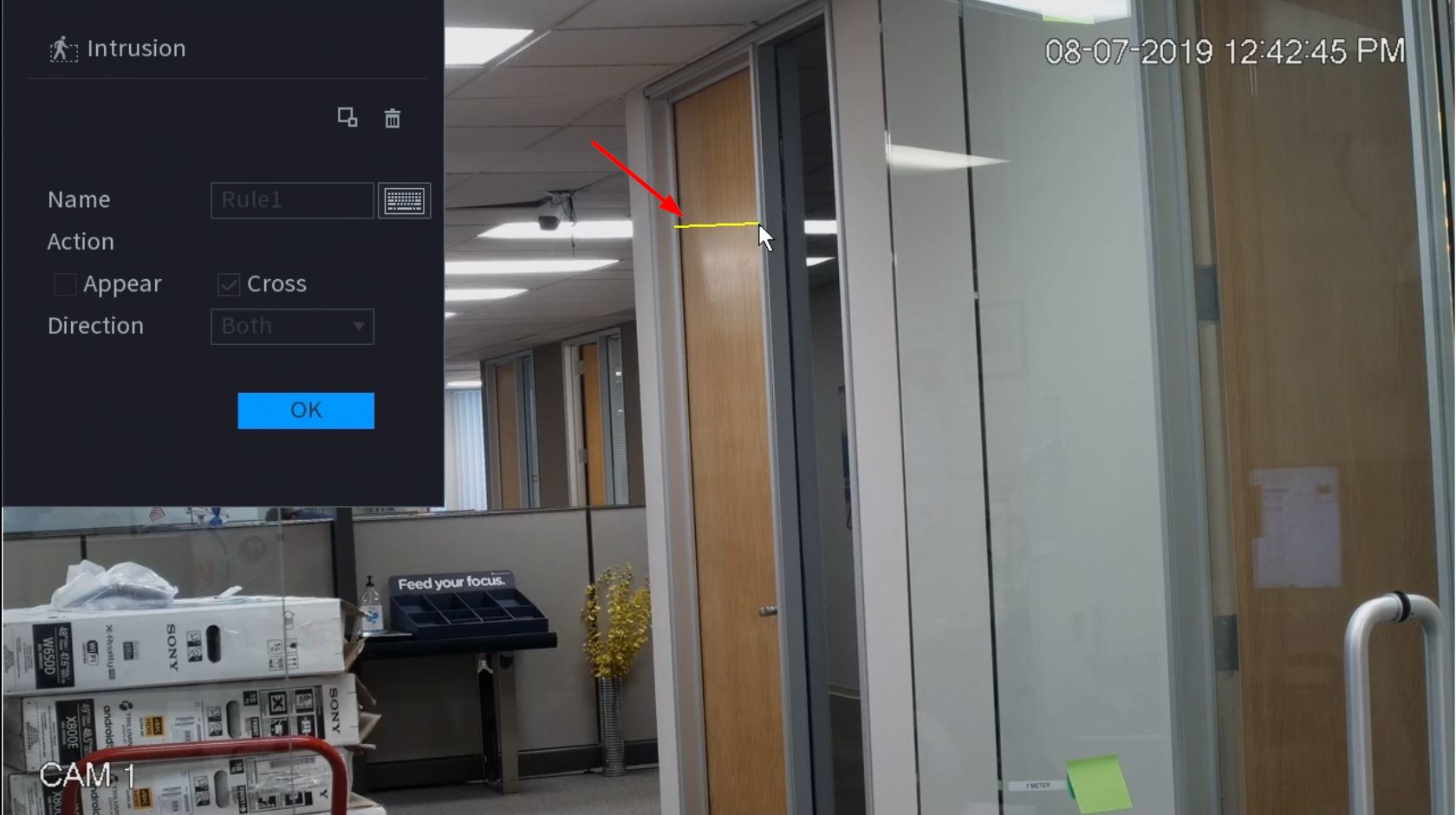

Left click anywhere inside the video frame to begin drawing the detection area for the Intrusion.Right click to end drawing. 12. You can use the Intrusion menu that appears for additional rule settings:

  • Name: A name can be applied to the rule
  • Action
    • Appear
    • Cross
  • Direction

Click Tripwire Setup - NewGUI - Target Filter.jpg icon to set the Target Filter (maximum and minimum size size for Objects to follow rule)

Click Tripwire Setup - NewGUI - Trash Icon.jpg icon to clear the current rule

Once the Intrusion rule settings have been created click OK

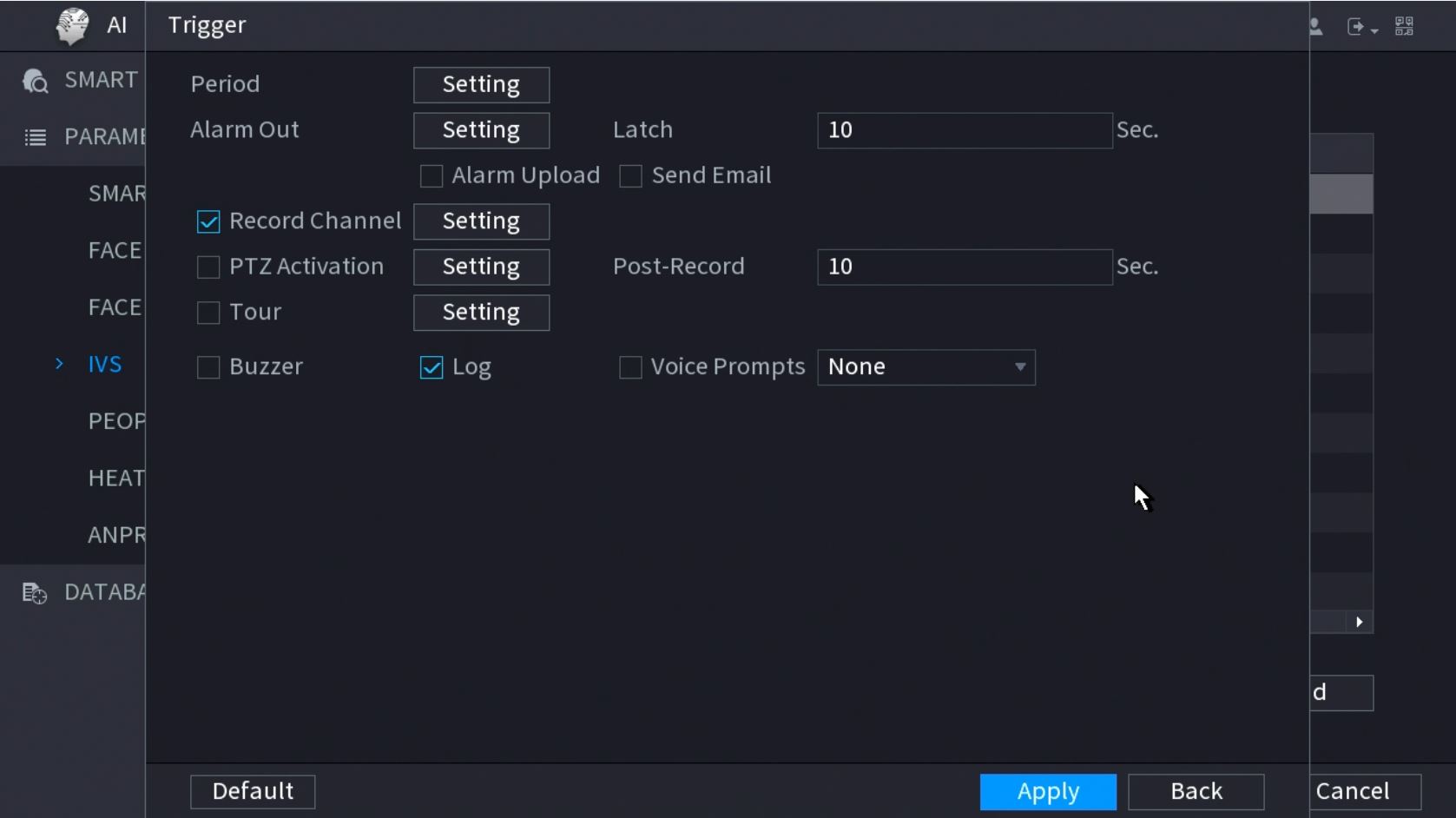

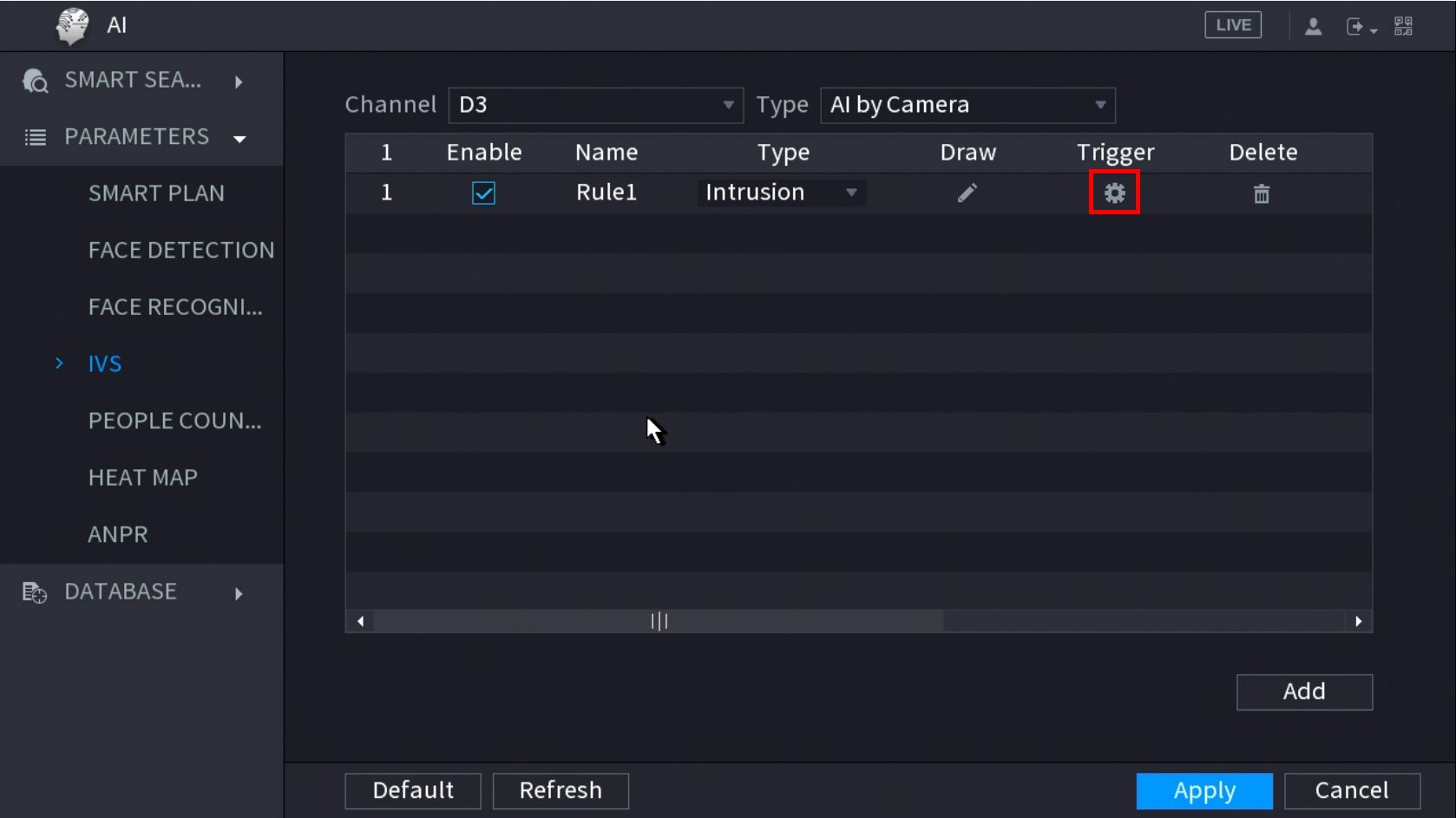

13. Click the Tripwire Setup - NewGUI - Trigger.jpg icon to set the Trigger settings when the IVS Missing Object rule is engaged.14. The Trigger menu will appear Once the trigger rule settings have been created click Apply, then click Back to return to the previous menu

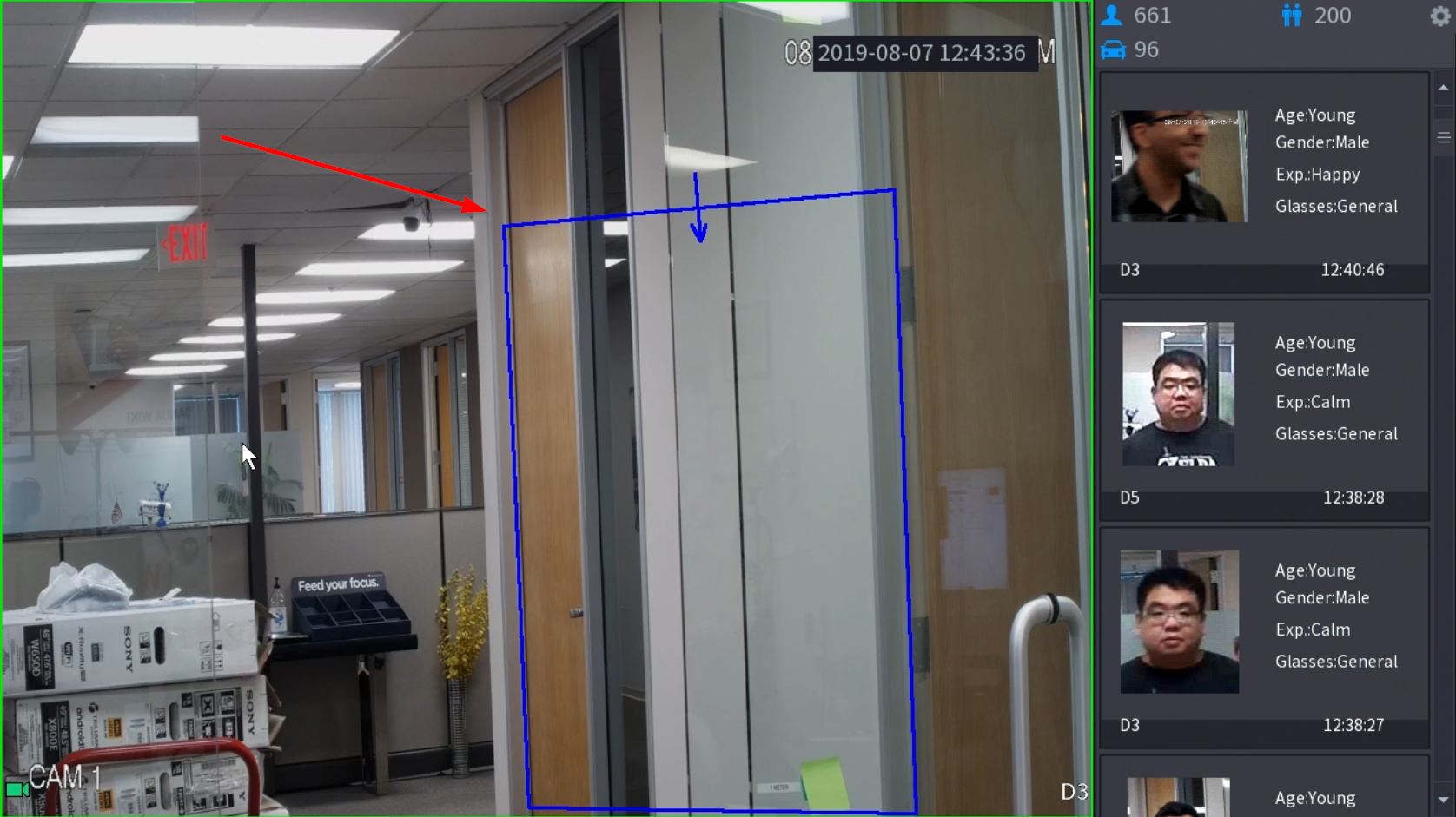

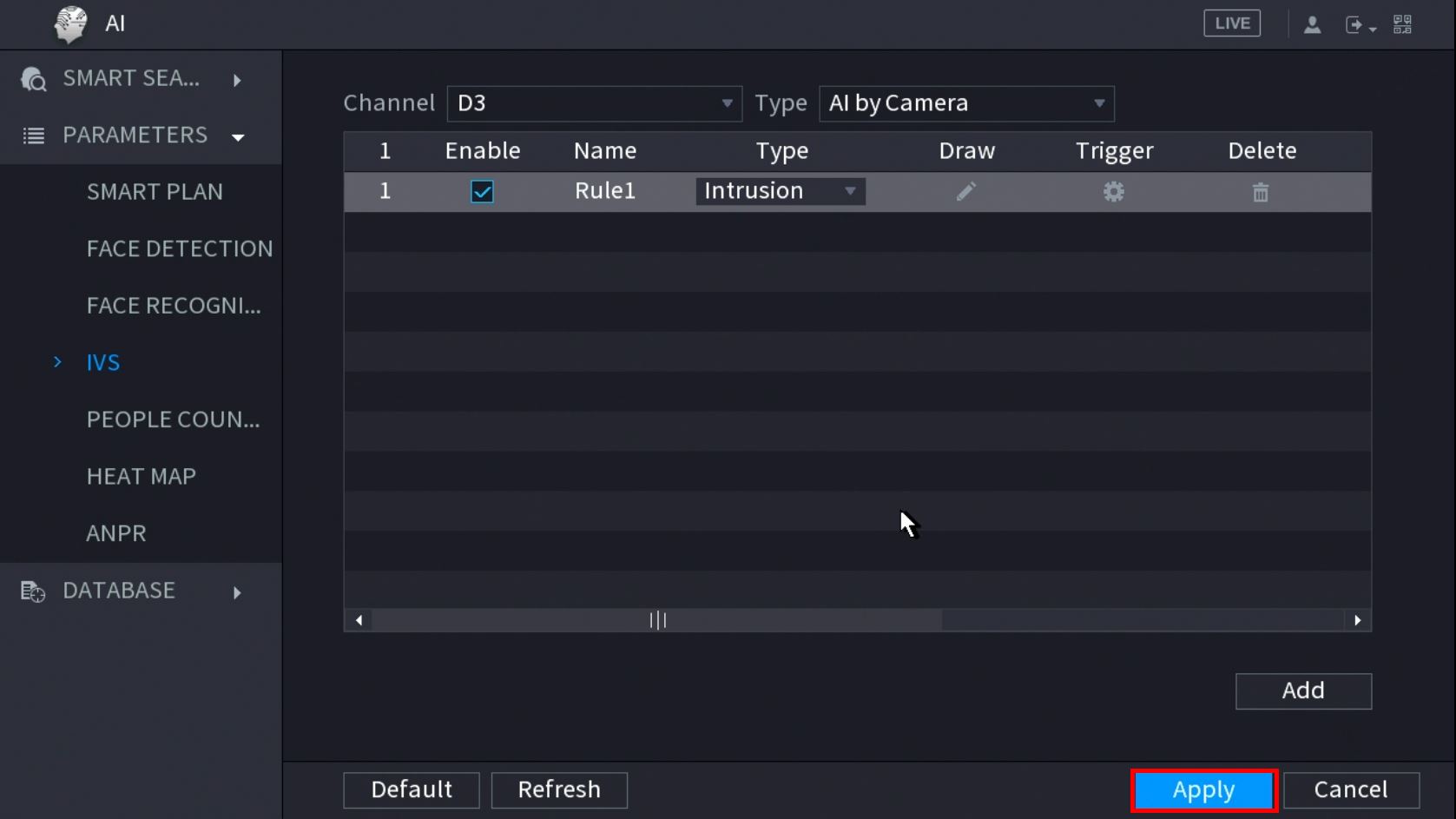

15. Once all Missing Object settings have been configured, Click Apply in the lower right of the screen to save all change16. The created Intrusion rule is now programmed
