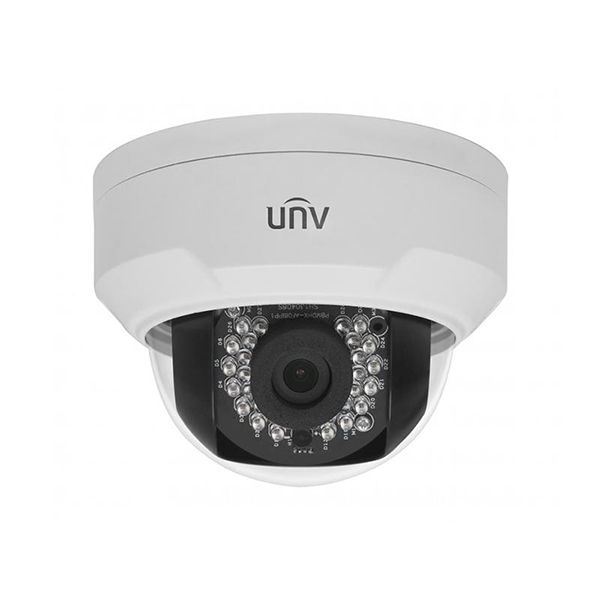

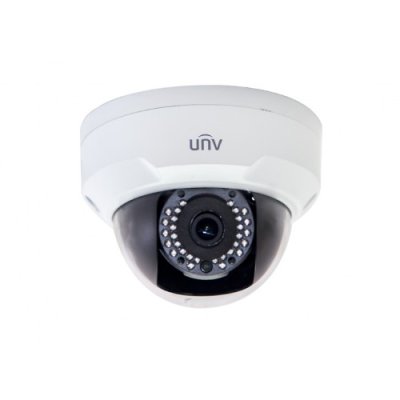

IPC322ER3-DUVPF28B - UNV Uniview - 2 MP Starlight IP Dome Camera 2.8mm Fixed Lens
This is a 4 megapixel resolution IP Dome camera. It has an 3.6mm or lens. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It is small and discreet but durable, with an IP66 rating.
This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It is 4 megapixels and is fixed with optional lens size of 2.8mm or 3.6mm. With Infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has "Smart IR" which will adjust based on the situation to give you an optimal image.
The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet(1to 2Mbs). The camera is wide dynamic range and very efficient for monitoring.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Log-in or REGISTER HERE to view EXCLUSIVE pricing.
This Uniview 2MP Starlight Network IR Dome Camera is a smart functioning security camera. It is 2 megapixels and is fixed with lens size of 2.8mm . With Starlight and Infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This dome security camera is ONVIF compliant. It’s durable with IP67 and IK10 rating. It also has "Smart IR" which will adjust based on the situation to give you an optimal image.
Product Features
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 3D DNR (Digital Noise Reduction)
- Starlight Color Nightvision
Compression
- Ultra 265, H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- 4 KV surge protection designed for network interface
- IP67 & IK10
STARLIGHT
Uniview 1080P starlight camera provides crisp color image even under 0.002 Lux (F1.2) low light condition.
Ability to produce clear colored image even in star light condition and without any supplementary lighting. As the definition of camera improves, the sensor area corresponds to single pixel reduces, making low light imaging, especially low light color imaging, more and more difficulty
Long-Range POE - 928 ft.
Even though the camera’s location is hundreds of feet away from NVR, you can still easily connect cameras directly to NVR for both power supply and video streaming because UNV NVR supports up to 928 Ft long rang PoE. It helps to make your store under protection 24/7 with only a few steps during installation.
Cloud Upgrade
If your camera is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.
Bring up the main menu on your Uniview NVR by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the camera and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the camera will automatically reboot.
Wide Temperature Range
Uniview' s cameras can function well under -40 ℃ ～ 70 ℃ , adapting to all harsh environment condition.
U.265 Compression
By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.
Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.
UNV Customer System Kit Builder
Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.
| SPECIFICATIONS | |
| Model | IPC322ER3-DUVPF28-B |
| Camera: | |
| Sensor | 1/2.9” progressive scan, 2 megapixel, CMOS |
| Lens | 2.8mm@F2(Angle of view(H): 105.2°) 3.6mm@F2(Angle of view(H): 72.0°) 6mm@F2(Angle of view(H): 42.0°) |
| AWB(Auto white balance) | Auto/manual |
| Shutter | Auto/Manual, shutter time: 1/6 s ~1/100000 s |
| Minimum Illumination | Colour: 0.002 Lux (F1.6, AGC ON) 0 Lux with IR on |
| Noise Reduction | 2D/3D |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Gain Control | Auto/manual |
| IR | Up to 30m (98 ft) IR range |
| Video | |
| Max. Resolution | 1920 × 1080 |
| Compression | Ultra 265/H.265/H.264/MJPEG |
| Frame Rate | 2MP (1920×1080): Max. 30 fps; 720p (1280×720): Max. 30 fps |
| Video Streaming | Triple |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| Motion Detection | Up to 2 areas |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Exception Detection | Audio detection |
| Storage | |
| Edge Storage | Micro SD, up to 128GB |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Interface | |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC, or PoE (IEEE802.3 af) |
| Dimensions (Ø x H) Power consumption: Max 5.5 W | Φ126 x 94mm (Φ5.0” x 3.7”) |
| Weight | 0.33kg (0.73lb) |
| Working Environment | -35℃~60℃ (-31℉ ~ 140℉), Humidity ≤ 95% RH (non-condensing) |
| Vandal Resistant | IK10 |
| Ingress Protection | IP67 |
Data sheet of IPC324ER3-DVPF28(36)(60)
Camera Installation Guide-V1.00
Network Cameras User Manual-V2.03
