- 32% less
Uniview 4 Channels 2MP Camera Kit WECU301-04LB-P4/4
Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 2MP resolution recording
1 SATA HDD, up to 10 TB
Support cloud upgrade
IPC2122LR3-PF40-D
Day/night functionality
SmartIR ,up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Triple streams
IP66
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews

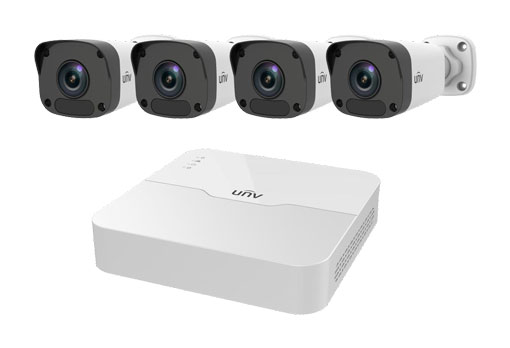

The Uniview 4 Channels 2MP Camera Kit WECU301-04LB-P4/4 is a comprehensive surveillance solution that includes everything you need to set up a small video surveillance system. The kit includes a Uniview NVR301-04LB-P4 Network Video Recorder and four Uniview IPC2122LR3-PF40-D 2MP Bullet IP Cameras.
The NVR included in the kit is a four-channel network video recorder that supports up to 8MP recording resolution and three compression technologies, including Uniview's proprietary Ultra 265, H.265, and H.264. The NVR has one SATA port, which allows for the connection of a hard drive for storing recorded footage. The NVR also supports Power over Ethernet (PoE), which means that it can power compatible IP cameras directly from the NVR without the need for a separate power source.
The kit also includes four Uniview IPC2122LR3-PF40-D 2MP Bullet IP Cameras. These cameras feature a 2-megapixel resolution and support infrared night vision, making them suitable for both day and night surveillance. The cameras are also weather-resistant, which means they can be used in outdoor environments.
The NVR included in the kit has a user-friendly web-based interface that allows for easy configuration and management of the device from any web browser. Additionally, it has a mobile app that allows users to view live and recorded video footage from their smartphones or tablets.
Overall, the Uniview 4 Channels 2MP Camera Kit WECU301-04LB-P4/4 is a reliable and feature-packed surveillance solution that is suitable for small to medium-sized surveillance systems. Its support for three compression technologies, high recording resolution, and PoE make it a versatile and powerful choice for a range of applications. The weather-resistant cameras included in the kit also make it suitable for outdoor surveillance applications.
NVR301-04LB-P4
Support Ultra 265/H.265/H.264 video formats
4-channel input
Plug & Play with 4 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 2MP resolution recording
1 SATA HDD, up to 10 TB
Support cloud upgrade
IPC2122LR3-PF40-D
Day/night functionality
SmartIR ,up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Triple streams
IP66
| Model | NVR301-04LB-P4 |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback | 4-ch |
| Corridor Mode Screen | 3/4/5 |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/ Playback | 1080p/960p/720p/D1/2CIF/CIF |
| Capability | 4 x 1080p@20, 4 x 720p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | up to 10TB for each disk |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel：2 x USB2.0 |
| PoE | |
| Interface | 4 independent 100 Mbps PoE network interfaces |
| Max Power | Max 30W for single port Max 54W in total ( 13.5W for each) |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 48V DC Power Consumption: ≤5 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 205mm × 205mm × 42mm(8.1" × 8.1" × 1.7") |
| Weight ( without HDD ) | 0.64kg ( 1.41lb ) |
| Model | IPC2122LR3-PF40-D |
| Camera | |
| Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS |
| Lens | 4.0mm@F1.8 |
| Angle of View(H) | 86.5° |
| Shutter | Auto/Manual, 1/6~1/100000 s |
| Minimum Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
| Digital noise reduction | 2D/3D DNR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| S/N | >52dB |
| IR Range | Up to 30m (98 ft) IR range |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265,H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream:720P (1280×720): Max. 30 fps; Third Stream: 4CIF (704×576): Max.30 fps |
| HLC | Supported |
| BLC | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 8 areas |
| ROI | Up to 2areas |
| Motion Detection | Up to 4 areas |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP |
| Compatible Integration | ONVIF(Profile S), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%,PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (L × W × H) | 162.9 × 62.4 ×62.7 mm (6.4” × 2.5” × 2.5”) |
| Weight | 0.25kg (0.55lb) |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing) |
| Ingress Protection | IP66 |
| Carton | NVR301-04LB-P4*1/ IPC2122LR3-PF40-D*4 |
| Dimensions(W×D×H) | 340mm× 232mm ×361mm (13.4" × 9.13" ×14.21") |
| Weight | 3.4kg (7.50lb) |
- ManufacturerUniview
- Camera TypeBullet
- Camera SignalIP
- Camera Resolution2 Megapixel
- Lens Size4.0mm@F1.8
- Shipping Lead TimeShips Same Day
- Infrared Distance30m (98 ft)
- Number of Channels4 Channels
- Recorder TypeNVR (with 4 POE Ports)
- HDD Storage1TB SATA HDD, 2TB SATA HDD, 3TB SATA HDD, 4TB SATA HDD, 6TB SATA HDD, 8TB SATA HDD, 10TB SATA HDD, I have my own SATA HDD
- Network Cable4 pcs. 100 Feet CAT6 Cable, 4 pcs. 50 Feet CAT6 Cable, 4 pcs. 150 Feet CAT6 Cable, 4 pcs. 200 Feet CAT6 Cable, 4 pcs. 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool + 1 pack RJ45 Modular Plugs + Crimping Tool, CAT6 Network Cable 1000 Feet Non UL, Black + 1 pack RJ45 Modular Plugs + Crimping Tool, I have my own network cables
