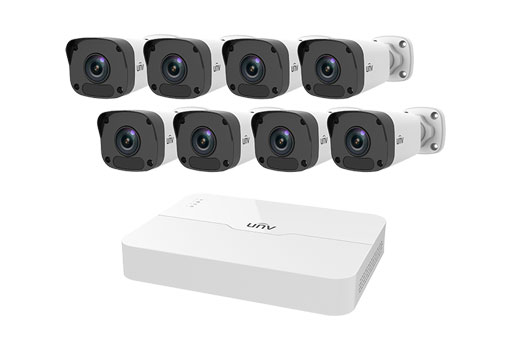

KIT/301-08LB-P8/8*2122LR3-PF40M-D

Uniview
SKU: SKU5

NVR301-08LB-P8

 Support Ultra 265/H.265/H.264 video formats

 8-channel input

 Plug & Play with 8 independent PoE network interfaces

 Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

 Support 1-ch HDMI, 1-ch VGA

 HDMI and VGA simultaneous output

 Up to 2MP resolution recording

 1 SATA HDD, up to 10 TB

 Support cloud upgrade

IPC2122LR3-PF40M-D

 Day/night functionality

 Smart IR ,up to 30 m (98 ft) IR distance

 Optical glass window with higher light transmittance

 IR anti-reflection window to increase the infrared transmittance

 2D/3D DNR (Digital Noise Reduction)

 Triple streams

 IP67

    • 49% less
    Market price:$5096.00 save $2498.00
  • $2598.00

OR

NVR301-08LB-P8

 Support Ultra 265/H.265/H.264 video formats

 8-channel input

 Plug & Play with 8 independent PoE network interfaces

 Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

 Support 1-ch HDMI, 1-ch VGA

 HDMI and VGA simultaneous output

 Up to 2MP resolution recording

 1 SATA HDD, up to 10 TB

 Support cloud upgrade

IPC2122LR3-PF40M-D

 Day/night functionality

 Smart IR ,up to 30 m (98 ft) IR distance

 Optical glass window with higher light transmittance

 IR anti-reflection window to increase the infrared transmittance

 2D/3D DNR (Digital Noise Reduction)

 Triple streams

 IP67

  • ModelNVR301-08LB-P8
    Video/Audio Input
    IP Video Input8-ch
    Network
    Incoming Bandwidth40Mbps
    Outgoing Bandwidth40Mbps
    Remote Users128
    ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
    Video/Audio Output
    HDMI/VGA OutputHDMI:
    1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
    VGA:
    1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
    Recording Resolution1080p/960p/720p/D1/2CIF/CIF
    Synchronous Playback8-ch
    Corridor Mode Screen3/4/5/7/9
    Decoding
    Decoding formatUltra 265/H.265/H.264
    Liveview/
    Playback
    1080p/960p/720p/D1/2CIF/CIF
    Capability4 x 1080p@20, 4 x 720p@30
    Hard Disk
    SATA1 SATA interface
    Capacityup to 10TB for each disk
    External Interface
    Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
    USB InterfaceRear panel:2 x USB2.0
    PoE
    Interface8 independent 100 Mbps PoE network interfaces
    Max PowerMax 30W for single port
    Max 108W in total ( 13.5W for each)
    Supported StandardIEEE 802.3at, IEEE 802.3af
    General
    Power Supply52V DC
    Power Consumption: ≤9 W( without HDD )
    Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
    Dimensions(W×D×H)270mm × 205mm × 42mm(10.6"×8.1"×1.7")
    Weight ( without HDD )0.98kg ( 2.16lb )
    ModelIPC2122LR3-PF40M-D
    Camera
    Sensor1/2.7", 2.0 megapixel, progressive scan, CMOS
    Lens4.0mm@F1.8
    Angle of View(H)86.5°
    ShutterAuto/Manual, 1/6~1/100000 s
    Minimum IlluminationColour: 0.02 Lux (F1.8, AGC ON)
    0 Lux with IR on
    Digital noise reduction2D/3D DNR
    Day/NightIR-cut filter with auto switch (ICR)
    S/N>52dB
    IR RangeUp to 30m (98 ft) IR range
    WDRDWDR
    Video
    Video CompressionUltra 265,H.265, H.264, MJPEG
    H.264 code profileBaseline profile, Main Profile, High Profile
    Frame RateMain Stream:2MP (1920×1080): Max. 30 fps;
    Sub Stream:720P (1280×720): Max. 30 fps;
    Third Stream: 4CIF (704×576): Max.30 fps
    HLCSupported
    BLCSupported
    OSDUp to 4 OSDs
    Privacy MaskUp to 8 areas
    ROIUp to 2areas
    Motion DetectionUp to 4 areas
    Network
    ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP
    Compatible IntegrationONVIF(Profile S), API
    Interface
    Network1 RJ45 10M/100M Base-TX Ethernet
    General
    Power12 V DC±25%, PoE (IEEE802.3 af)
    Power consumption: Max 5.5W
    Dimensions (L × W × H)162.9 × 62.4 ×62.7 mm (6.4” × 2.5” × 2.5”)
    Weight0.34kg (0.75 lb)
    Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
    Ingress ProtectionIP67
    Reset ButtonSupported
    CartonNVR301-08LB-P8*1/ IPC2122LR3-PF40M-D*8
    Dimensions(W×D×H)340mm × 232mm ×571mm (13.4"× 9.13" ×14.21")
    Weight3.4kg (7.50lb)



Datasheet



    • SKU
      SKU5
    • Weight
      7.5 lbs
  • Manufacturer
    Uniview
