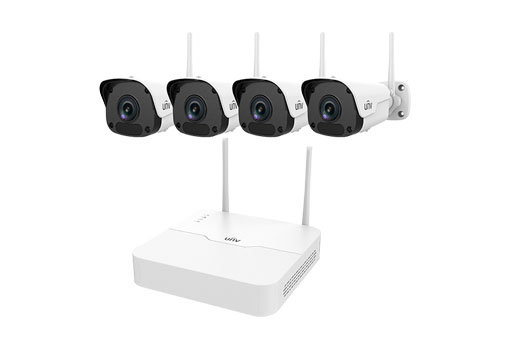

KIT/NVR301-04LB-W/4*2122SR3-F40W-D
SKU: WEC/NVR301-04LB-W/4*2122SR3-F40WNVR301-04LB-W
Support 2.4GHz , Support two-antenna to strengthen the WiFi signal
Embedded WiFi Module with high-performance and high stability
Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
Support Ultra 265/H.265/H.264 video formats
4-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA synchronous outputs provided
Up to 1080p resolution recording
1 SATA HDD, Up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
IPC2122SR3-F40W-D
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Ultra 265,H.265, H.264, MJPEG
Triple streams
9:16 corridor format
ONVIF Conformance
Wide temperature range: -30°C ~ +55°C (-22°F ~ 131°F)
Wide voltage range of ±25%
IP66
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
NVR301-04LB-W
Support 2.4GHz , Support two-antenna to strengthen the WiFi signal
Embedded WiFi Module with high-performance and high stability
Support CCMP encryption and WPA2-PSK authentication, Support IP cameras with WiFi in access
Support Ultra 265/H.265/H.264 video formats
4-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA synchronous outputs provided
Up to 1080p resolution recording
1 SATA HDD, Up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
IPC2122SR3-F40W-D
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Ultra 265,H.265, H.264, MJPEG
Triple streams
9:16 corridor format
ONVIF Conformance
Wide temperature range: -30°C ~ +55°C (-22°F ~ 131°F)
Wide voltage range of ±25%
IP66
Model | NVR301-04LB-W | |||||||
Video/Audio Input | ||||||||
IP Video Input | 4-ch | |||||||
Network | ||||||||
Incoming Bandwidth | 40Mbps | |||||||
Outgoing Bandwidth | 40Mbps | |||||||
Remote Users | 128 | |||||||
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||||||
Video/Audio Output | ||||||||
HDMI/VGA Output | HDMI: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | |||||||
Recording Resolution | 1080p/960p/720p/D1/2CIF/CIF | |||||||
Audio Output | 1-ch, RCA | |||||||
Synchronous Playback | 4-ch | |||||||
Corridor Mode Screen | 3/4 | |||||||
Decoding | ||||||||
Decoding format | Ultra 265/H.265/H.264 | |||||||
Live view/ Playback | 1080p/960p/720p/D1/2CIF/CIF | |||||||
Capability | 4 x 1080P@20, 4 x 720P@30 | |||||||
Hard Disk | ||||||||
SATA | 1 SATA interface | |||||||
Capacity | Up to 10TB for each HDD | |||||||
External Interface | ||||||||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |||||||
USB Interface | Rear panel:2 x USB2.0 | |||||||
Wi-Fi | ||||||||
Frequency | 2.4GHz | |||||||
Transmission Rate | 150Mbps | |||||||
Wireless Standards | IEEE 802.11b/g/n | |||||||
Wireless Range | 280m(open environment) | |||||||
General | ||||||||
Power Supply | 12V DC Power Consumption: ≤9W( without HDD ) | |||||||
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | |||||||
Dimensions(W×D×H) | 205mm ×228mm ×47mm (8.1" × 9.0"×1.9") | |||||||
Weight ( without HDD ) | ≤ 0.98Kg(2.16lb) | |||||||
Model | IPC2122SR3-F40W-D | |||||||
Sensor | 1/2.7", 2.0 megapixel, progressive scan, CMOS | |||||||
Lens | 4.0mm@F2.0 | |||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
4mm | 60 | 24 | 12 | 6 | ||||
Angle of view(H) | 86.5° | |||||||
Angle of View (V) | 44.1° | |||||||
Angle of View (O) | 106.4° | |||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
Shutter | Auto/Manual, 1/6~1/100000 s | |||||||
Minimum Illumination | Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
S/N | >52dB | |||||||
IR Range | Up to 30m (98 ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | DWDR | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps | |||||||
9:16 Corridor Mode | Supported | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Storage | ||||||||
Edge Storage | Micro SD, up to 256 GB | |||||||
Network Storage | ANR | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP | |||||||
Compatible Integration | ONVIF(Profile S, Profile G), API | |||||||
Wi-Fi | ||||||||
Wireless Standards | IEEE802.11b/g/n | |||||||
Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||||
Channel Bandwidth | 20MHz Support | |||||||
Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM | |||||||
Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |||||||
Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm | |||||||
Receive Sensitivity | 802.11b: -90dBm @ 11Mbps (Typical) 802.11g: -75dBm @ 54Mpbs (Typical) 802.11n: -74dBm (Typical) | |||||||
Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | |||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
General | ||||||||
Power | 12 V DC(+/-25%) | |||||||
Power consumption: Max 6.4 W | ||||||||
Dimensions (L × W × H) | 157.3 × 63 ×62.4 mm (6.2” × 2.5” × 2.5”) | |||||||
Weight | 0.45 kg (0.99 lb) | |||||||
Working Environment | -30°C ~ +55°C (-22°F ~ 131°F), Humidity ≤ 95% RH(non-condensing) | |||||||
Ingress Protection | IP66 | |||||||
Reset Button | Supported |
