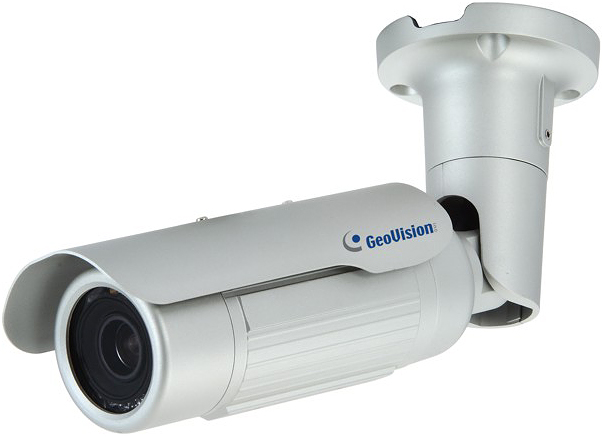

GV-IP LPR 5R - 1.3MP IP LPR Camera 5 meter, Motorized Lens (3~9mm) w/o Adaptor
Ideal for parking lot installation, the GV-IP LPR Camera 5R is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 60 km/hr (37 mph) or less.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Ideal for parking lot installation, the GV-IP LPR Camera 5R is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 60 km/hr (37 mph) or less. With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures from as low as -10°C (14°F) up to 50°C (122°F).
Features:
- Model No. GV-LPR 5R
- Ordering Part No. 610-HLPRCM5-000
- SKU 84-LPRPT-001
- 1.3 megapixel B/W progressive scan CMOS
- Motorized varifocal lens for remote focus / zoom adjustment
- Dual streams from MJPEG or H.264
- Up to 30 fps at 1280 x 1024
- Recognition for reflective License Plate only
- Maximum Speed 60 km/h (37 mph)
- Ingress protection (IP67)
- Vandal resistance (IK10 for metal casing)
- Built-in 12 IR LEDs
- Built-in fan
- Defog
- Motion detection
- Privacy mask
- Text Overlay
- IP address filtering
- Power supplied through PoE (IEEE 802.3 at)
- Supports iPhone, iPad, Android & 3GPP
- ONVIF (Profile S) conformant
- 31 languages on Web interface
Operation
| Camera GV-IP LPR 5R | ||
| Image Sensor | 1/3” progressive scan CMOS | |
| Picture Elements | 1280 (H) x 1024 (V) | |
| Shutter Speed | Automatic, Manual (1/5 ~ 1/8000 sec) | |
| White Balance | Automatic, Manual (2800K ~ 8500K) | |
| S/N Ratio | 50 dB | |
| Max. Speed | 60 km/h (37 mph) | |
| Lens | ||
| Megapixel | Yes | |
| Lens Type | Motorized varifocal lens | |
| Focal Length | 3~9 mm | |
| Maximum Aperture | F/1.2 | |
| Mount | Ø 14 mm | |
| Image Format | 1/2.7" | |
| Operation | Focus | Auto Focus |
| Zoom | 3X Optical Zoom | |
| Iris | DC Drive | |
| IR LED Quantity | 12 IR LEDs | |
| Max. IR Distance | 5 m (16.4 ft.) | |
| Video Compression | H.264, MJPEG | |
| Video Streaming | Dual streams from H.264 and MJPEG | |
| Frame Rate | 30 fps at 1280 x 1024 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes). | |
| Image Setting | Brightness,Contrast,Sharpness,Gamma,Image Orientation,Shutter Speed,Defog,Zoom,Focus,Change | |
| Audio Compression | N/A | |
| Two-way Audio | N/A | |
| Sensor Input | N/A | |
| Alarm Output | N/A | |
| Video Resolution | ||
| Main Stream | 4:3 | 1280 x 960, 640 x 480, 320 x 240 |
| 16:9 | 1280 x 720, 640 x 360, 448 x 252 | |
| 5:4 | 1280 x 1024, 640 x 512, 320 x 256 | |
| Sub Stream | 4:3 | 640 x 480, 320 x 240 |
| 16:9 | 640 x 360, 448 x 252 | |
| 5:4 | 640 x 512, 320 x 256 | |
| Network | ||
| Interface | 10/100 Base-T Ethernet, RJ-45 connector | |
| Protocol | HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S) | |
| Mechanical | ||
| Temperature Detector | Yes | |
| Camera Angle Adjustment | Pan | 0° ~ 360° |
| Tilt | 90° ~ 180° | |
| Rotate | 0° ~ 360° | |
| Connectors | Power | PoE |
| Ethernet | RJ-45 | |
| Audio | N/A | |
| Digital I/O | N/A | |
| General | ||
| Environment Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) | |
| Humidity | 10% to 90% (no condensation) | |
| Power Source | PoE (IEEE 802.3at) | |
| Max. Power Consumption | 16.6 W | |
| Camera Angle Adjustment | Camera Body | 289.02 x 87.75 x 148.95 mm (11.4” x 3.45” x 5.86”) |
| Cable Length | 1 m (3.28 ft.) | |
| Weight | 1.4 kg (3.08 lb) | |
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 for metal casing | |
| Fan | Constantly On | |
| Regulatory | CE, FCC, C-Tick, RoHS compliant | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3at Power over Ethernet / PD | |
| PoE Power Supply Type | End-Span | |
| PoE Power Output | Per Port 48V DC, 345mA. Max. 16.6 watts | |
| Web Interface | ||
| Installation Management | Web-based configuration | |
| Maintenance | Firmware upgrade through Web Browser or Utility | |
| Access from Web Browser | Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ | |
| Language | Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish | |
| Applications | ||
| Network Storage | GV-NVR, GV-System, GV-Backup Center, GV-Recording Server | |
| Smart Device Access | GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch GV-Eye HD for iPad | |
| Live Viewing | IE, GV-MultiView | |
| CMS Server support | GV-Control Center, GV-Center V2, GV-VSM | |
| Software License(using with supplied GV-LPR Capture Dongle) | ||
| Free License | Yes | |
| Maximum License | GV-ASManager 4.0: 1 channel GV-ASManager 4.1: 8 channels | |
| Increment for Each License | N/A | |
| Dongle Type | External | |
Note:
1. GV-IP LPR Camera 5R comes with a free GV-LPR software, and the supplied GV-LPT Capture DOngle will need to be inserted to run the software (LPR Plugin). Since the free GV-LPR Software is a Trial Edition, it can only capture the license plate images and does not support the license plate recognition function.
2. Specifications are subject to change without notice.
GV-IP LPR Cam 5R Specifications Sheet
