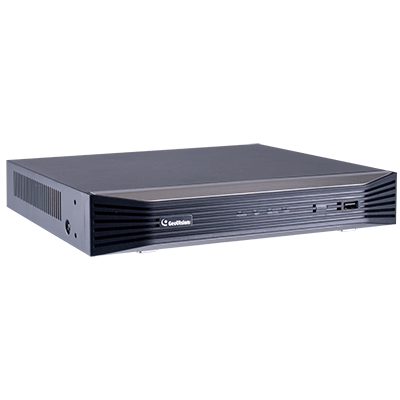

Geovision GV-SNVR0812 8 Channel at 4K (2160p) NVR 48Mbps Max Throughput w/ Built-in 8 Port PoE - No HDD
The GV-SNVR0812 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV-IP devices for network surveillance. GV-SNVR0812 has 8 built-in PoE+ (IEEE 802.3at) ports, functioning to carry network and power to the connected IP devices. Featuring up to 4K resolution video output, GV-SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to import or export system settings, update firmware, save snapshot files as well as back up video in AVI format.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
The GV-SNVR0812 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 8 channels of GV-IP devices for network surveillance. GV-SNVR0812 has 8 built-in PoE+ (IEEE 802.3at) ports, functioning to carry network and power to the connected IP devices. Featuring up to 4K resolution video output, GV-SNVR0812 eliminates the need of a separate PC to view and play back videos. Its USB ports allow you to insert USB flash drive to import or export system settings, update firmware, save snapshot files as well as back up video in AVI format.
Features:
- Model Number: GV-SNVR0812
- Manufacturer SKU Number: 84-SNR0812-001U
- Sales Part Number: 801-SNVR-0812
- 8-Channel video recording
- Up to 3840 x 2160 resolution for each channel
- Dual streams support
- 8-Port PoE+ (IEEE 802.3at) for camera connection
- 4K (HDMI) / 1080P (HDMI/VGA) video output
- Two‐way audio
- 1 SATA HDD drawer (3.5") for up to 10 TB storage
Specifications
System
- OS - Embedded Linux
- No. of Drive Bay - 1 (3.5" HDD) Up to 10TB
- Power Source - Input: AC 100 ~ 240V, 50 ~ 60 Hz Output: DC 52V, 1.8A, Max. 100W PoE: Max. 100W
- Connectors
- Megabit Ethernet - port for WAN, RJ‐45 10/100 Mbps, 8 ports for LAN, RJ‐45 10/100 Mbps, PoE+ (IEEE 802.3at)
- Video Output - 4K (HDMI) / 1080p (HDMI / VGA)
- Audio - 1‐Ch, RCA (2.0 Vp‐p, 1 k Ω)
- USB 2.0 - Front: USB 2.0 Port x 1; Rear: USB 2.0 Port x 2
- I/O - 4 Inputs, 1 Output
- LED Indicator - 4 LEDs: Power, Network, HDD Fail, HDD Activity
- PoE - 8 LEDs for each port
- Operating Temperature - 32F ~ 122F
- Humidity - 0% ~ 90% RH (non‐condensing)
- Dimensions (L x W x H) - 10.24" x 9.45" x 1.73"
- Net Weight - 2.47 lb
- Regulatory - FCC, CE, BSMI, LVD, RoHS compliant
Video and Audio
- Video Compression - H.264, H.265
- Video Stream - Dual streams from H.264, H265
- Video Output - 4K / 1080p (HDMI / VGA)
- Display Division - 1 / 4 / 6 / 8 / 9
- Audio Compression - G.711
- Audio Support - Yes
- Two‐Way Audio - Yes
Supported Video Resolution
- 4:3 - Main Stream: 2560 x 2048, 2560 x 1920, 2048 x 1536, 2048 x 1520, 1600 x 1200, 640 x 480, 320 x 240, Sub Stream: 1024 x 768, 960 x 720, 640 x 480, 320 x 240
- 16 : 9 (Default) - 3840 x 2160, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252, Sub Stream: 1280 x 720, 640 x 360, 448 x 252
- 5:4 - Main Stream: 1280 x 1024, 640 x 512, 320 x 256, Sub Stream: 1280 x 1024, 640 x 512, 320 x 256, 640 x 512, 320 x 256, 320 x 256
- 20 : 19™ ™ (Fisheye Camera Only) - Main Stream: 2176 x 2048, 2048 x 1944, 1792 x 1696, 1440 x 1376, 1280 x 1200, Sub Stream: 640 x 608
Operation
- Recording Bandwidth - Max. 48 Mbps for 8 channels
- Recording Mode - Round the clock / Motion Detection / Schedule Recording / Alarm‐triggered Recording
- Pre Recording - 1 ~ 10 sec.
- Post Recording - 30 sec
- Instant Playback - 3 min.
- Backup Type - USB storage device of FAT32 format
Management
- Language - Czech / English / French / German / Hungarian / Italian / Japanese / Portuguese / Russian / Slovakian / Slovenian / Spanish / Traditional Chinese
- Firmware upgrade - Upgrade through OSD or GV‐IP Device Utility
Network
- Network Type - LAN, WAN, Internet
- Protocol - DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP
System Monitoring and Recovery
- Power Restoration - Automatic restart after power outage
- Monitoring - Software Watchdog
Remote Viewing
- Live View - Max. 8 channels connection
- Monitoring Environment - Brower IE browser, SNVR Viewer for non‐IE browsers, Mobile app
- Smart Device Access - GV‐Eye for iOS and Android
- Access from Web Browser - Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ
- ManufacturerGeovision
- Shipping Lead TimeShips within 1 to 12 Hours
- WarrantyGeoVision Direct Warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
