How To Setup Missing Object

Description

This article will show you how to setup the Missing Object IVS feature on a supported device

Prerequisites

• Supported device with Missing Object feature

Video Instructions

Step by Step Instructions

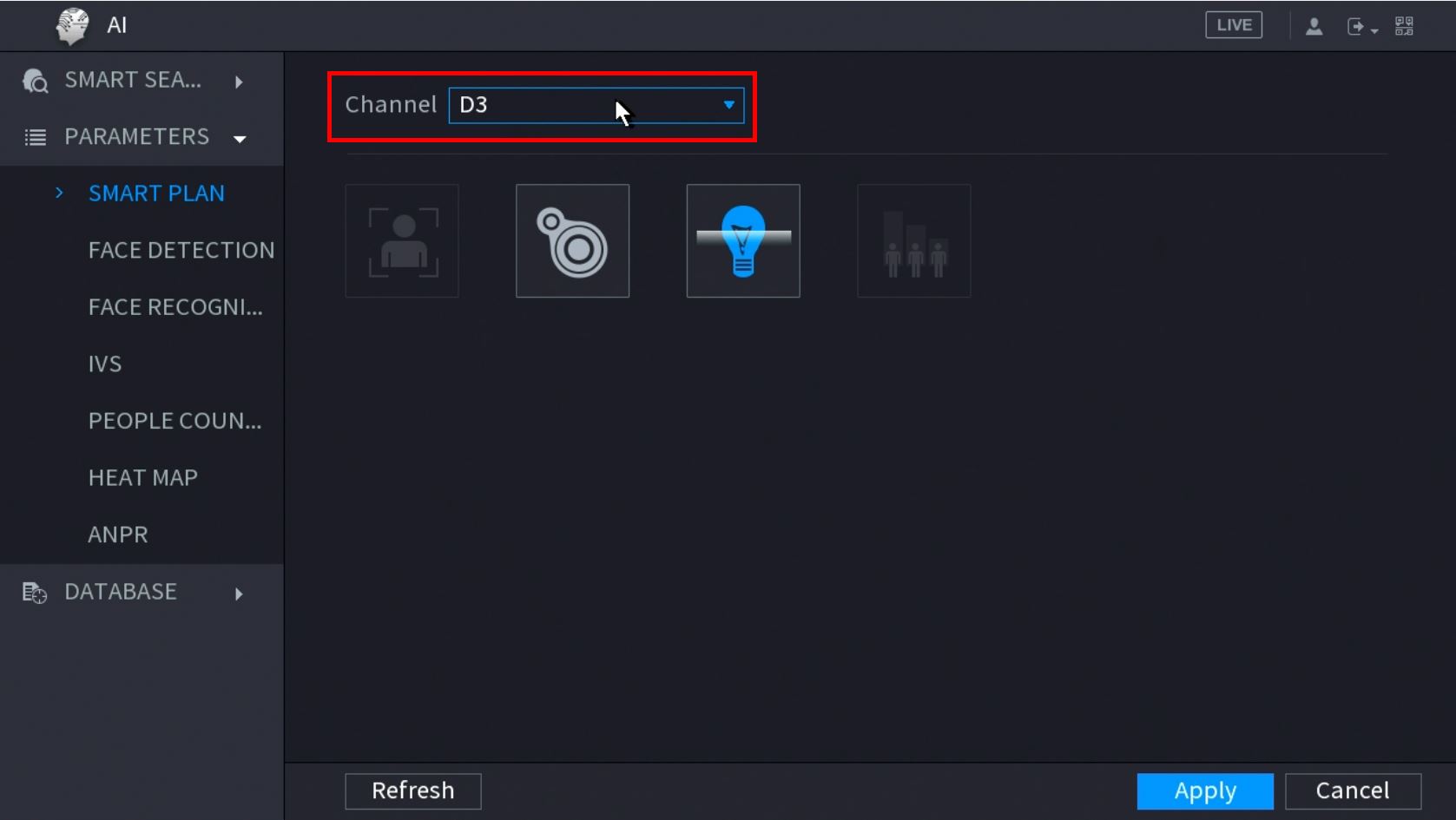

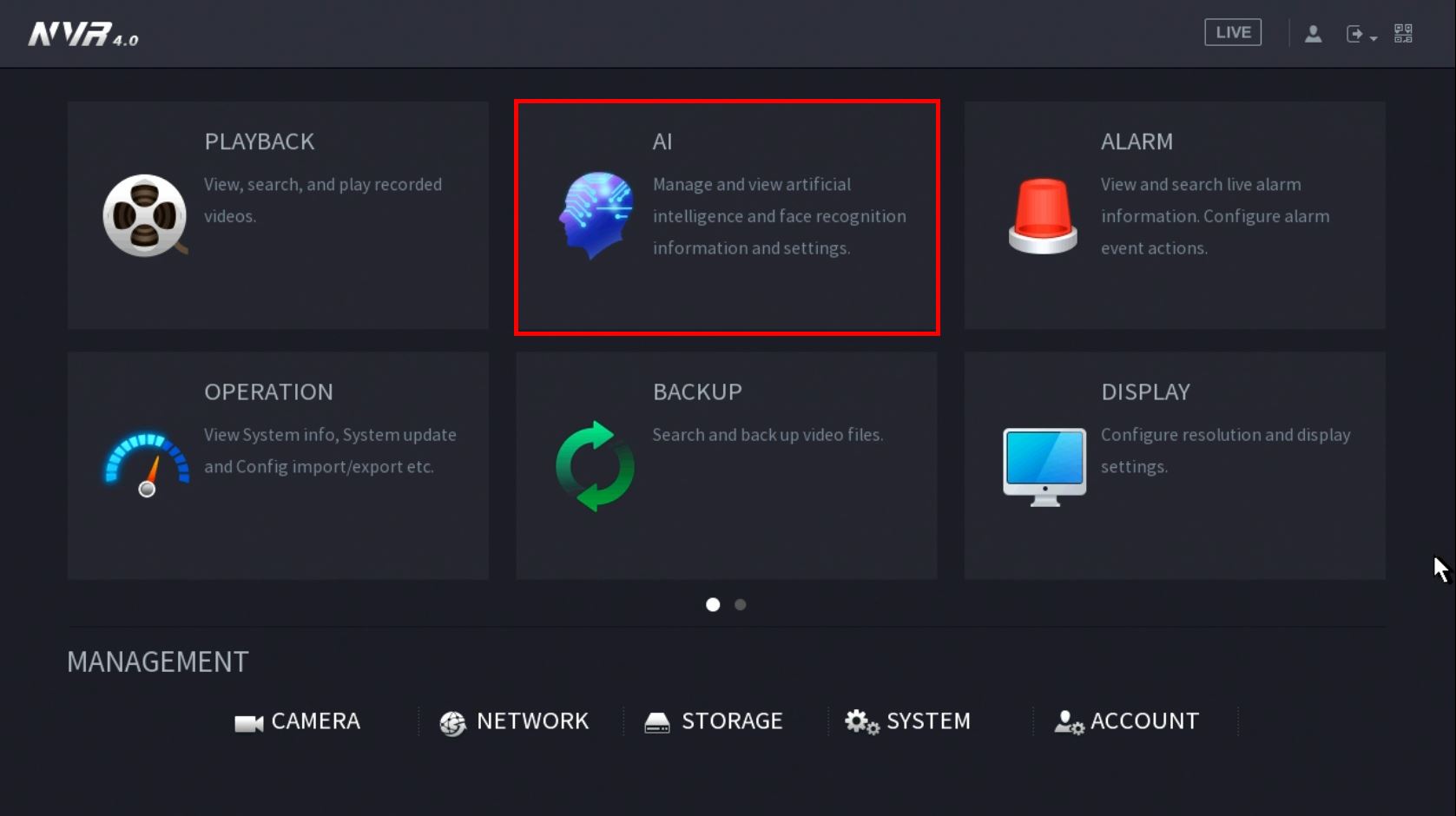

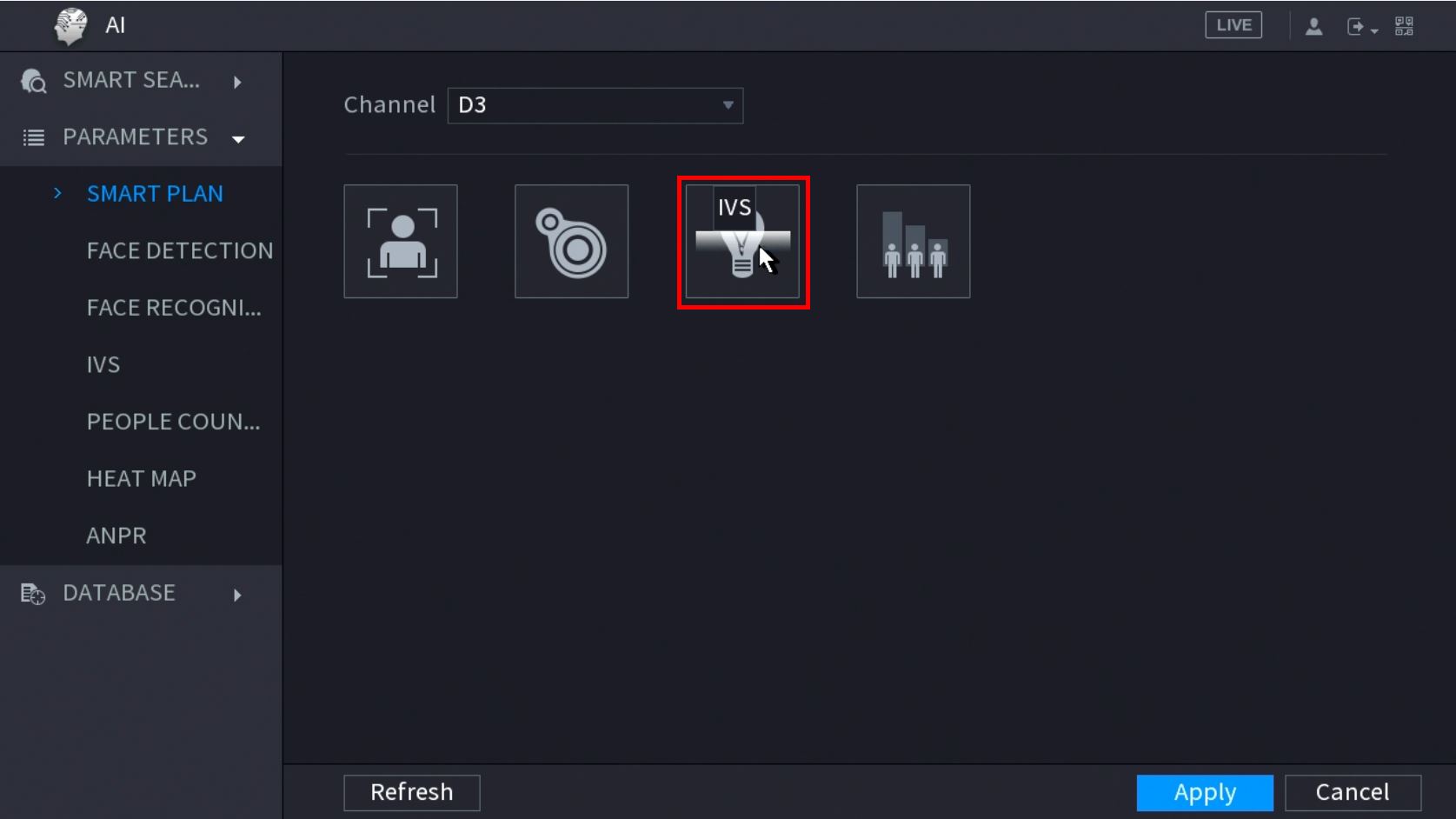

1. From the Main Menu click AI 2. Click Parameters > Smart Plan 3. Use the drop down box to select the Channel 4. Click the IVS icon to enable. The icon will highlight when selected.

Click Apply

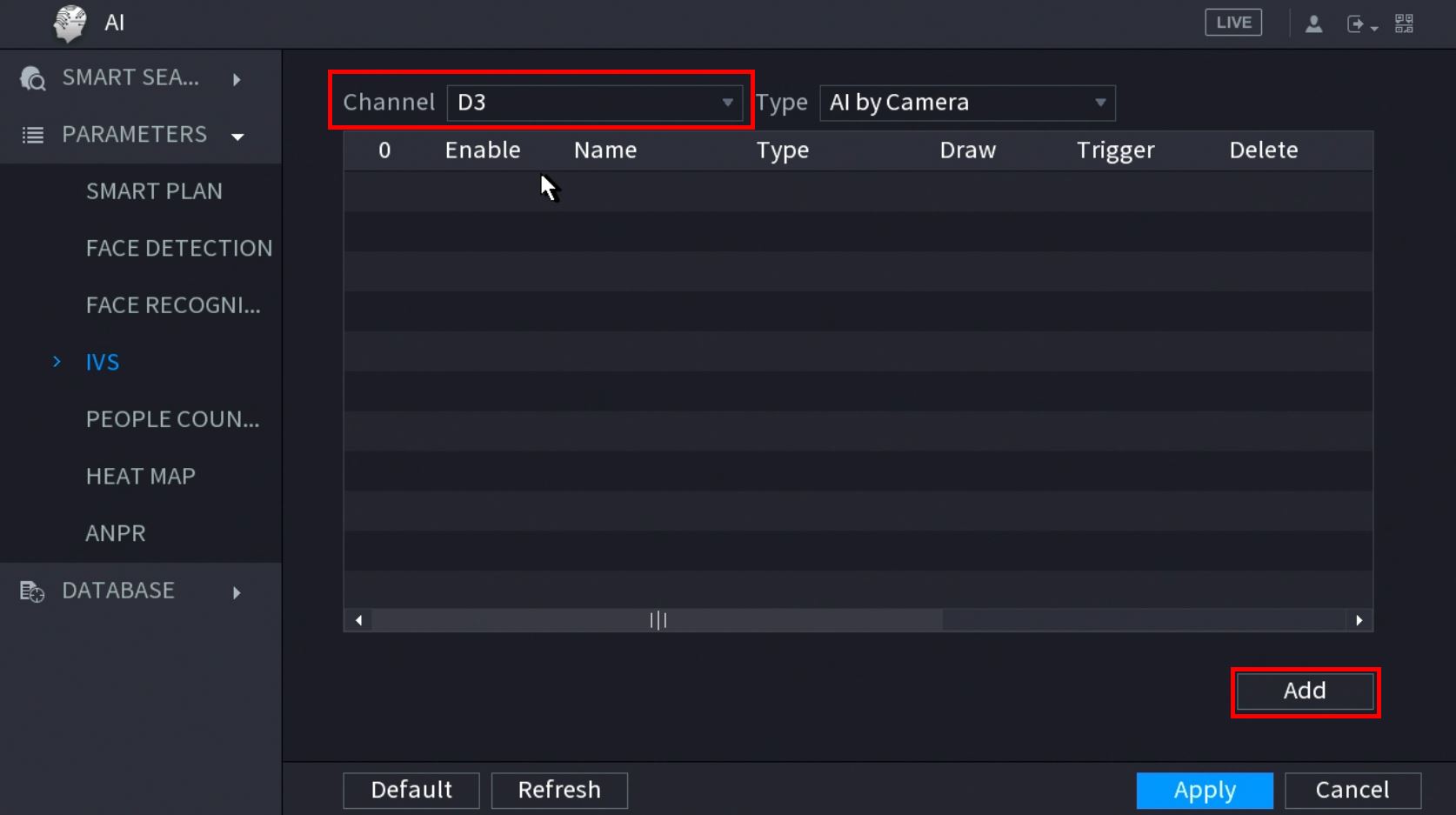

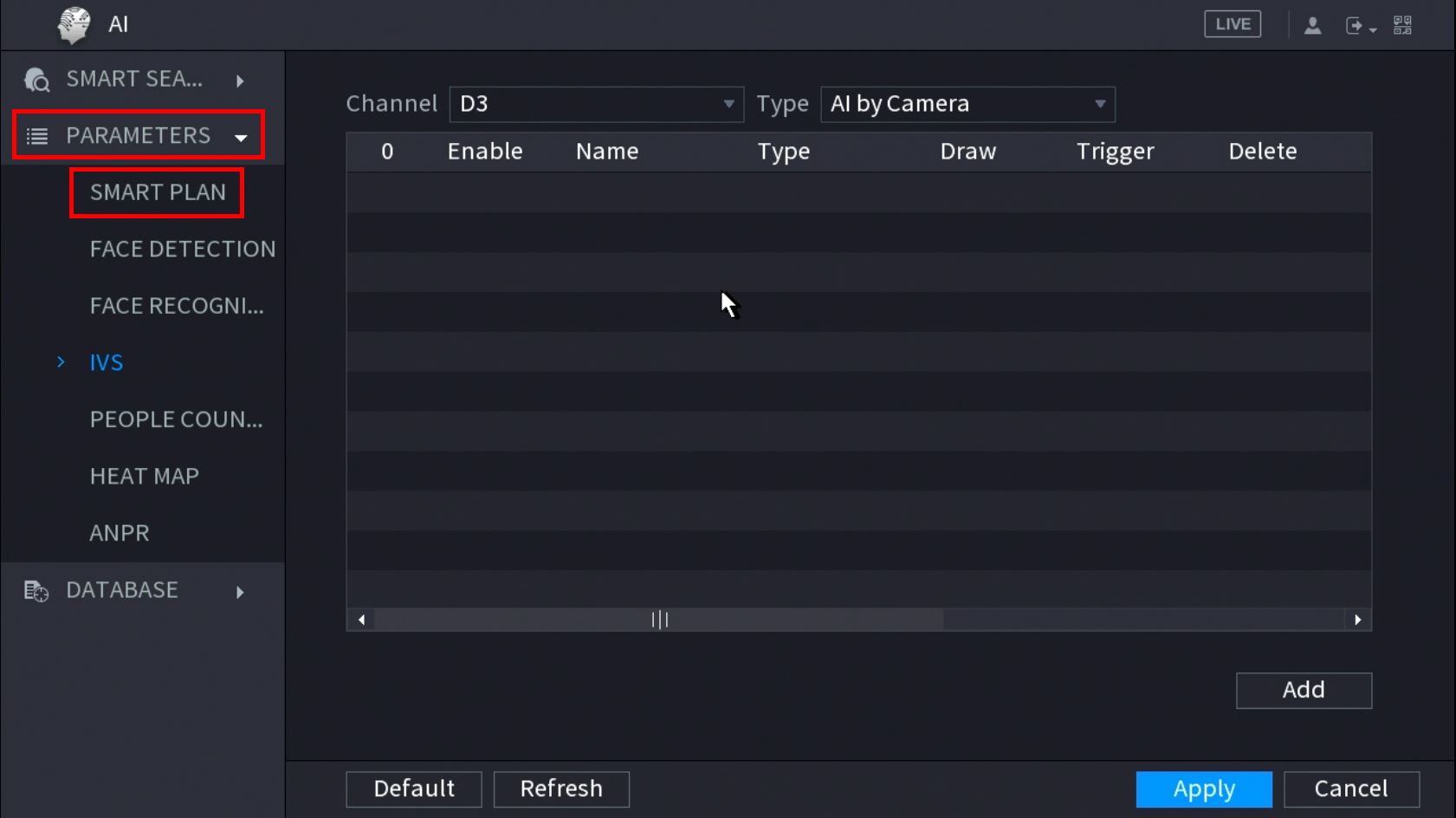

5. Click Parameters > IVS 6. Use the drop-down box to select the Channel

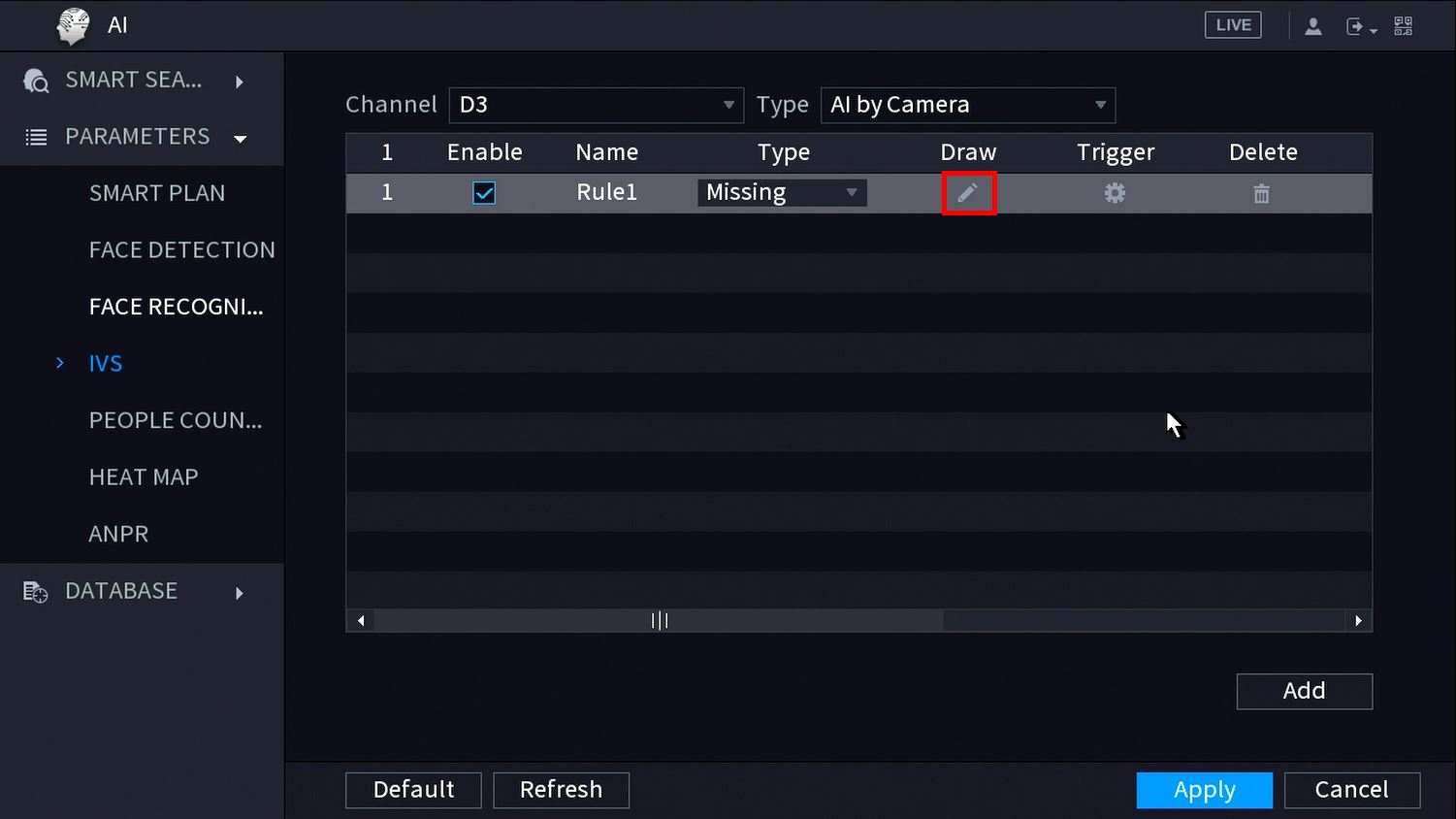

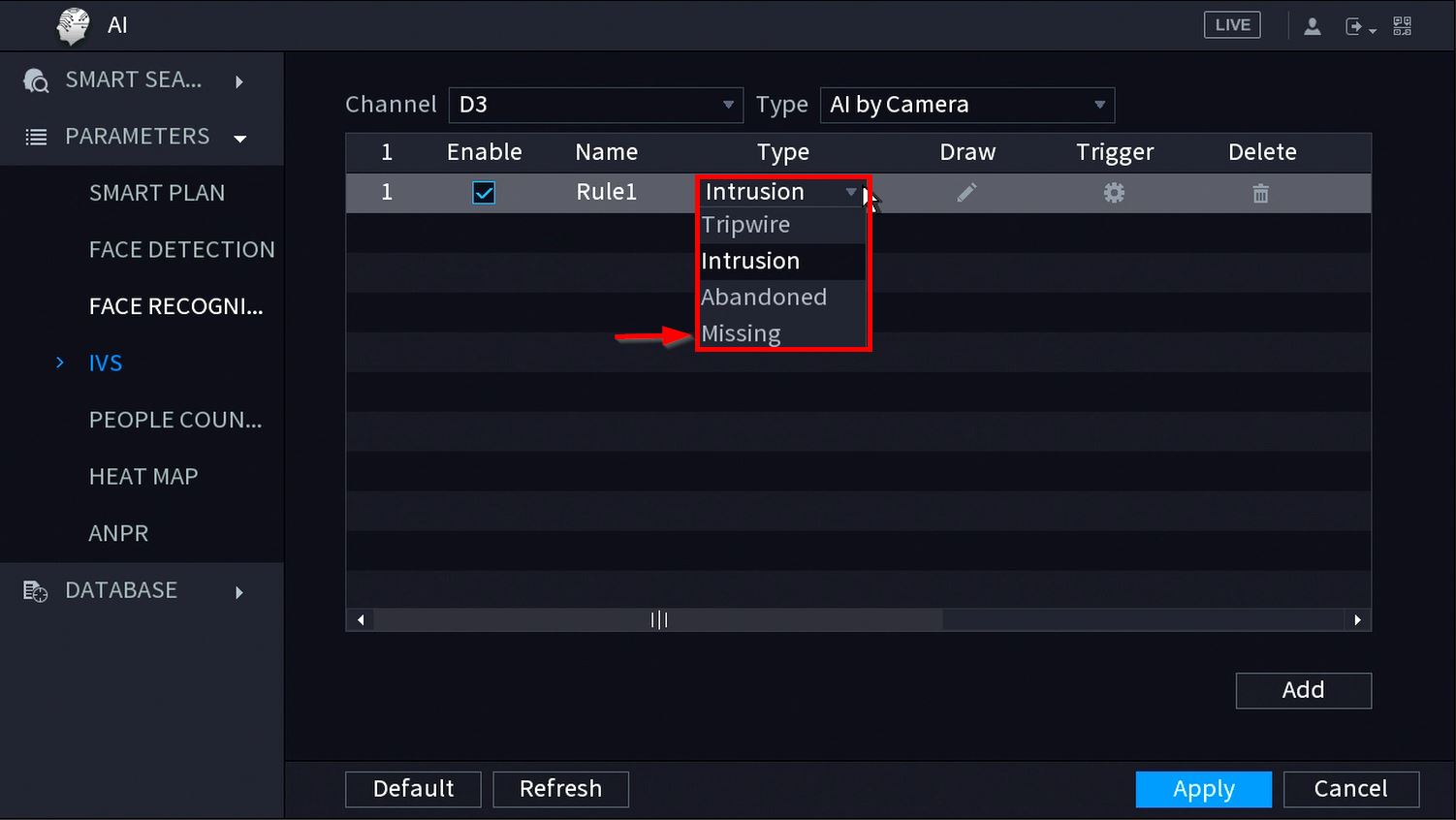

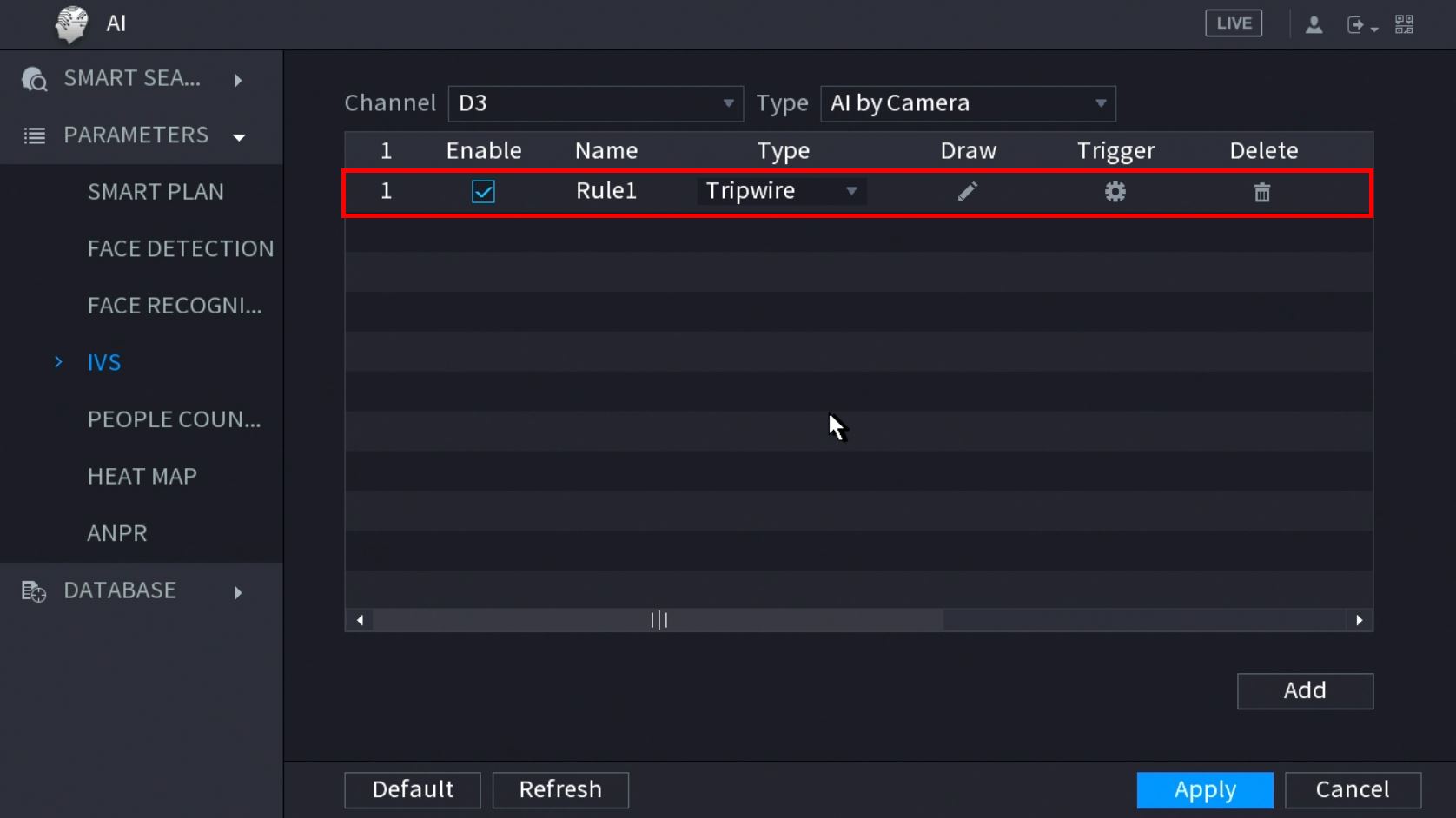

Then click Add in the lower right side of the screen to Add an IVS rule7. The created rule will appear in the list 8. Use the dropdown box to change the Rule Type to "Missing" 10. Click the Pencil icon to draw the Missing Object rule
11. The Channel will fullscreen.

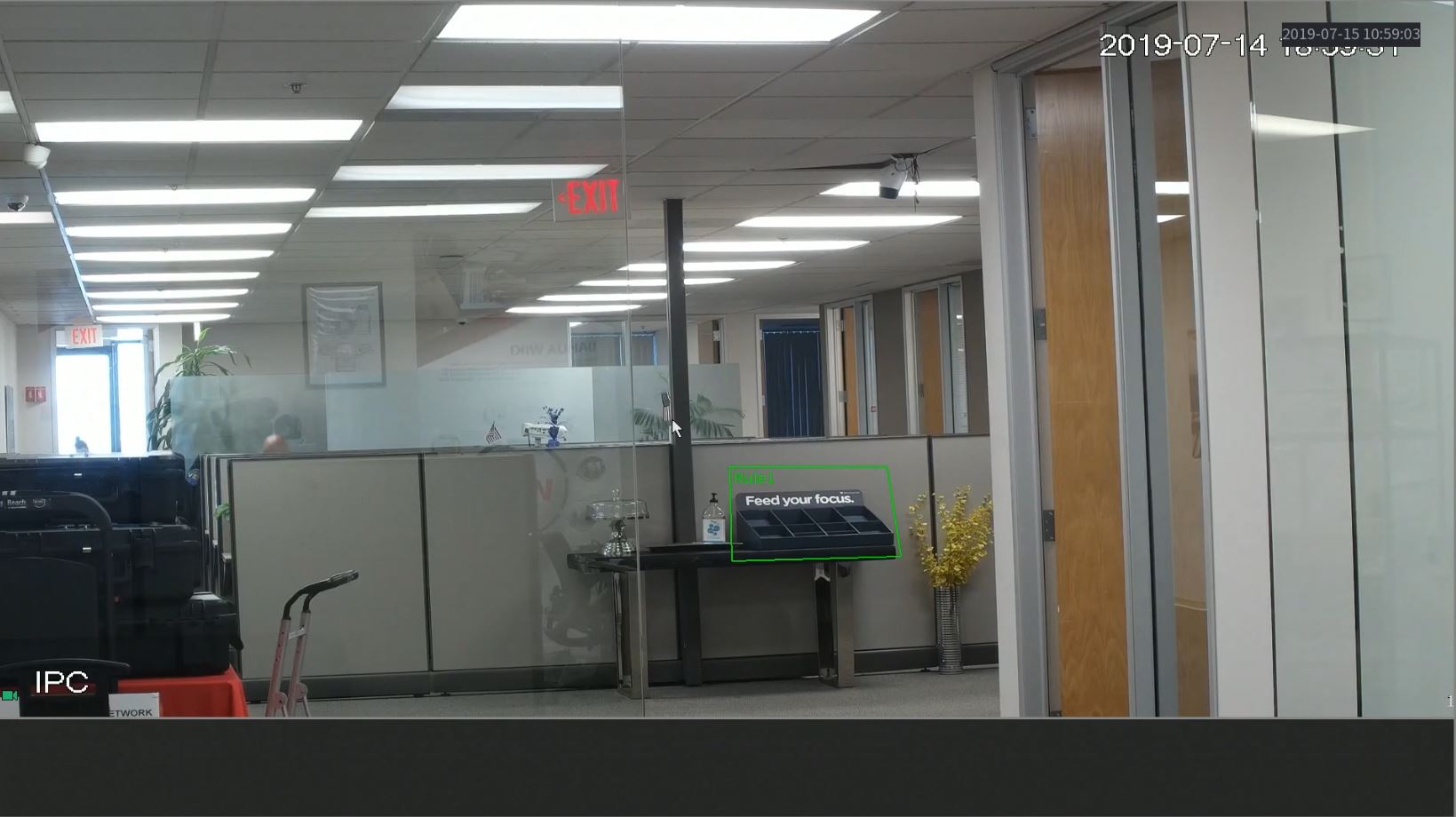

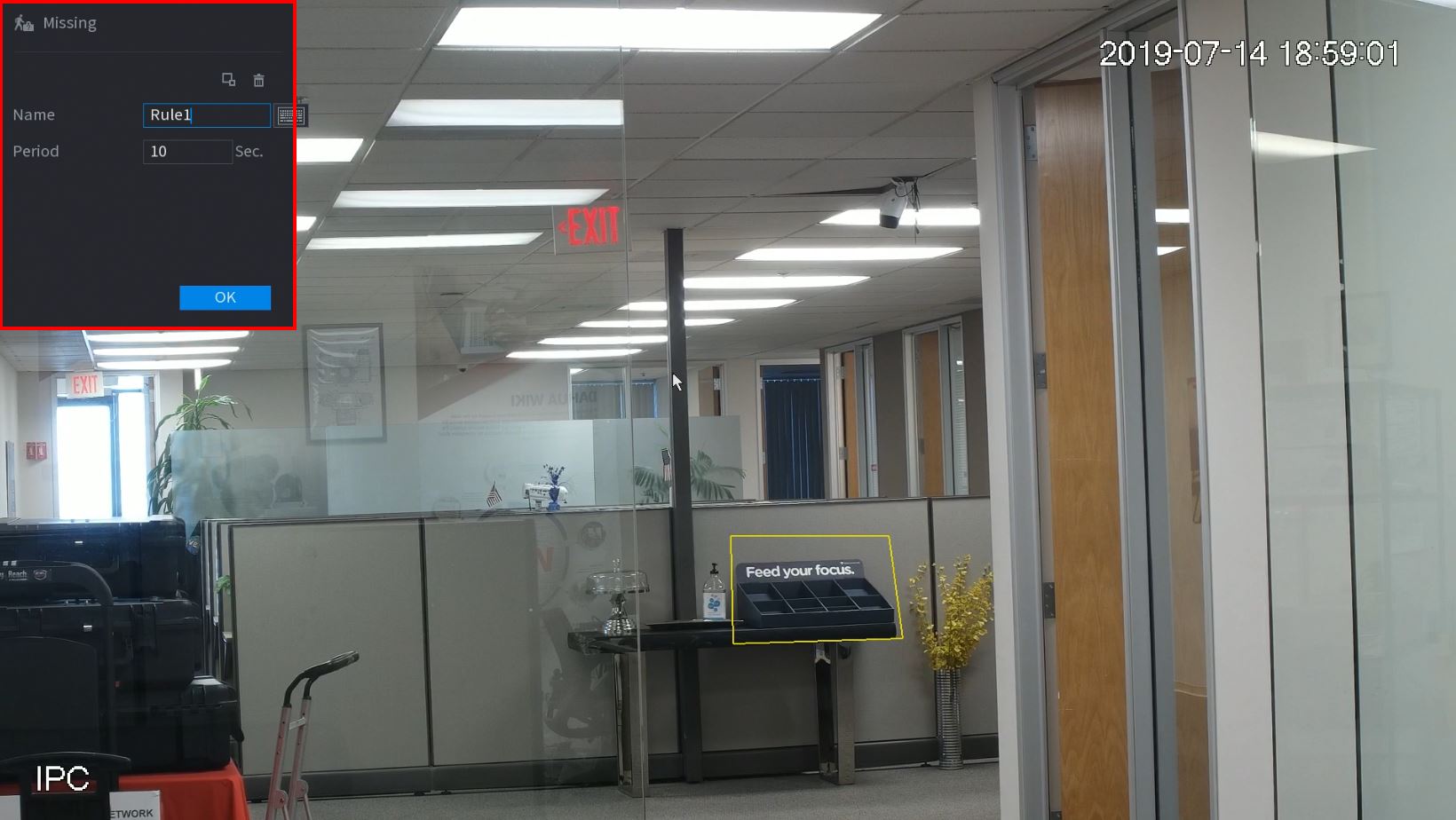

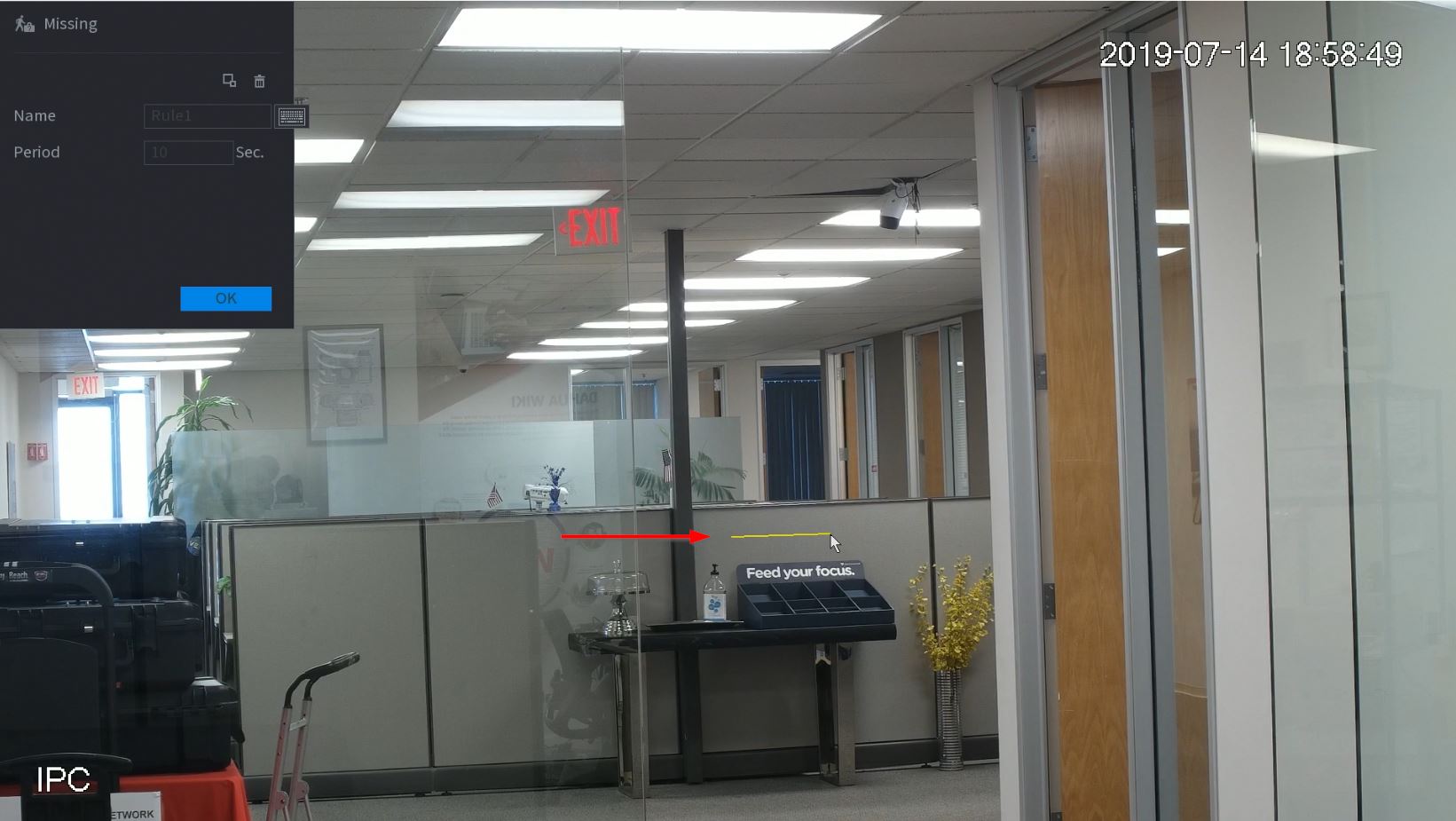

Left click anywhere inside the video frame to begin drawing the detection area for the object.Right click to end drawing 12. You can use the Missing menu that appears for additional rule settings:

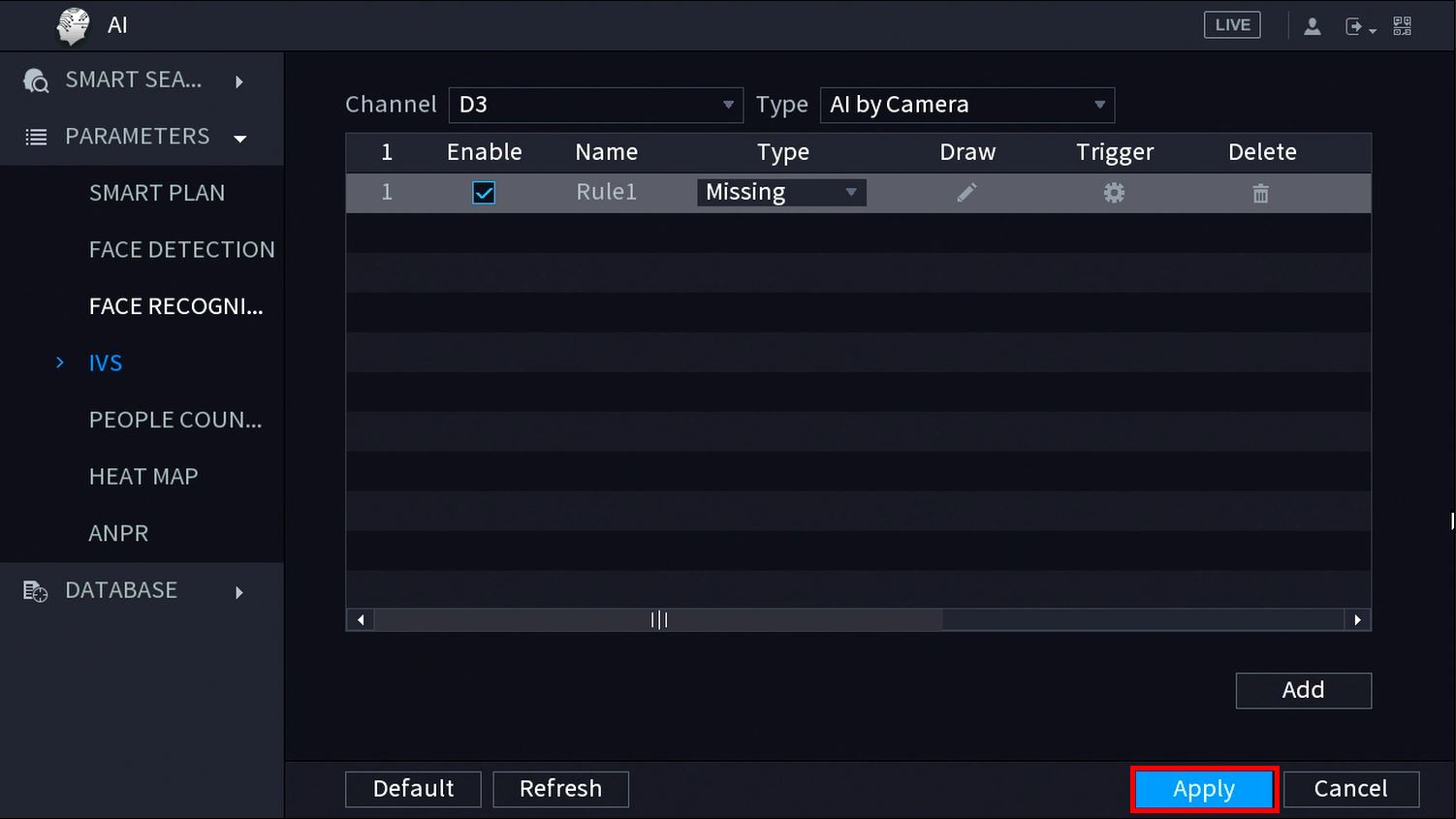

• Name: A name can be applied to the rule
• Period: Set a time (in seconds) for the Missing object rule to trigger

Click  icon to set the Target Filter (maximum and minimum size size for Objects to follow rule)

Click  icon to clear the current rule

Once the Missing Object rule settings have been created click OK

13. Click the icon to set the Trigger settings when the IVS Missing Object rule is engaged.

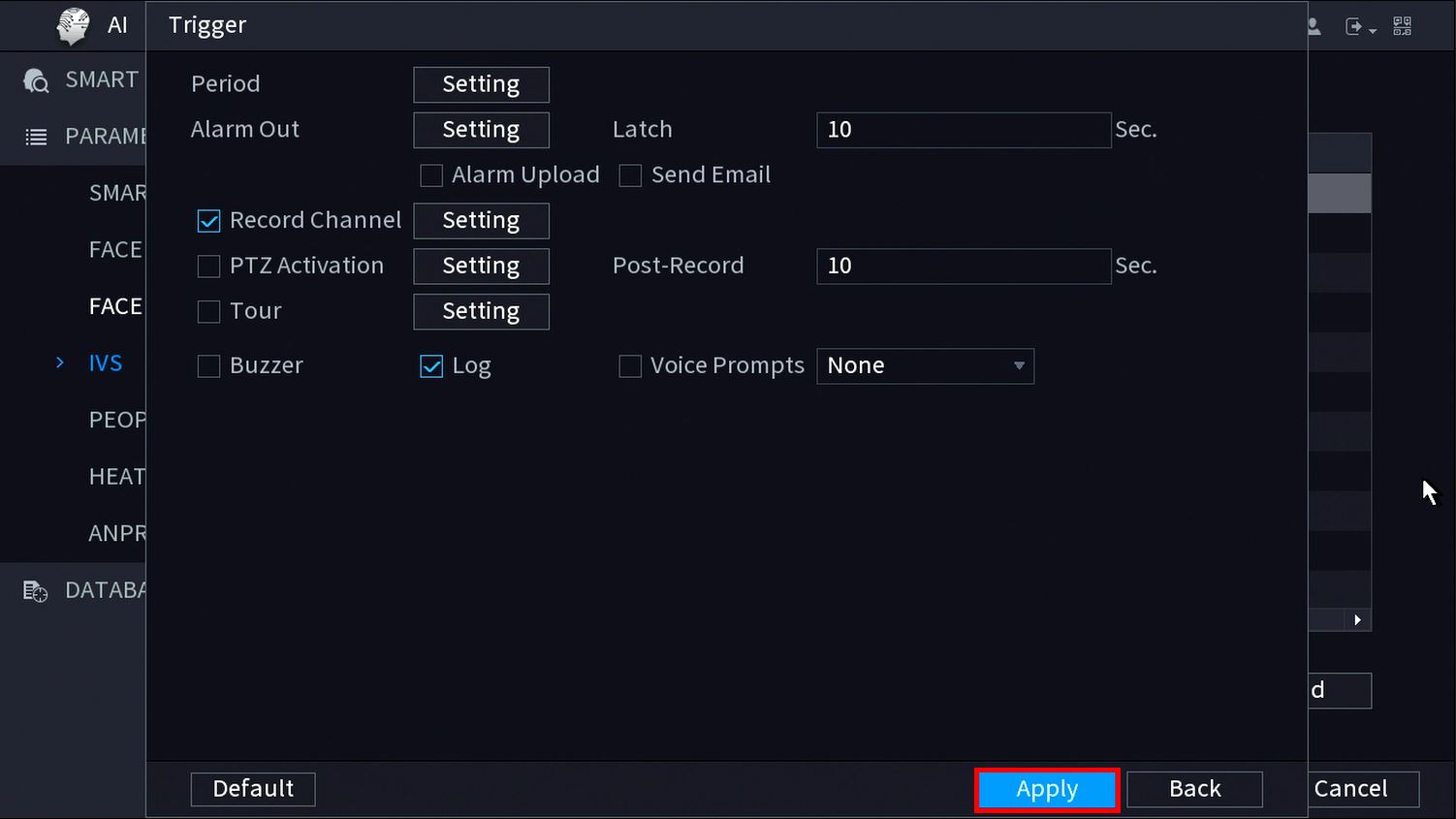

14. The Trigger menu will appear

Once the trigger rule settings have been created click OK

15. Once all Missing Object settings have been configured, Click Apply in the lower right of the screen to save all changes16. The created Missing rule is now programmed
