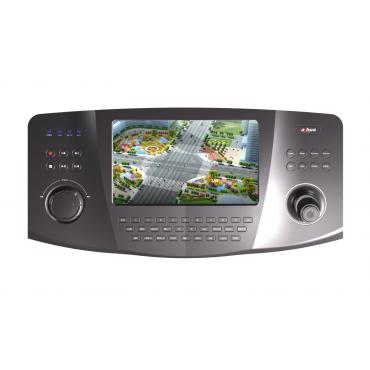

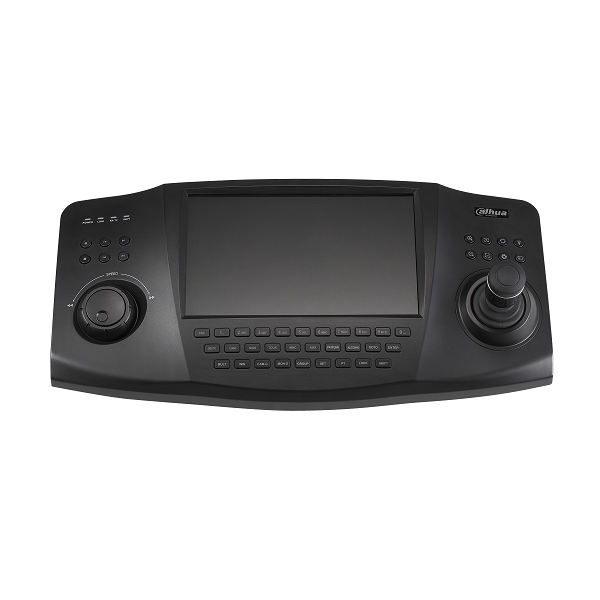

HD Network Control Keyboard

iMaxCamPro
SKU: NKB3000

> Keyboard to Control:
—DAHUA Standalone DVR
—DAHUA (Network) High Speed Dome
—DAHUA High Speed Dome
—Central Management Platform
—Network Video Server
> RS232, RS485 & Network Connections
> Four Dimensional Joystick Control of PTZ Functions
> Support full HD 1080p live view; Support HDMI & VGA sync output
> Support snapshot and recording to U-disk
> Support Video-Wall display
> Support external Wi-Fi (Optional)
> Support bidirectional talk
> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
> Auxiliary Functions, OSD and operation guides.

    • 44% less
    Market price:$3297.00 save $1441.00
  • $1856.00

OR

> Keyboard to Control:
—DAHUA Standalone DVR
—DAHUA (Network) High Speed Dome
—DAHUA High Speed Dome
—Central Management Platform
—Network Video Server
> RS232, RS485 & Network Connections
> Four Dimensional Joystick Control of PTZ Functions
> Support full HD 1080p live view; Support HDMI & VGA sync output
> Support snapshot and recording to U-disk
> Support Video-Wall display
> Support external Wi-Fi (Optional)
> Support bidirectional talk
> Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
> Auxiliary Functions, OSD and operation guides.

SpecificationsAccessoriesDownload

Model

Model

NKB3000

System

Main Processor

Industrial embedded microprocessor

Operation System

Embedded LINUX

Audio

Compression

G.711A

Output

1ch output

Network Mode

Interface: RJ45

Bidirectional Talk

1 pair 3.5mm jack

Display

Display split

1/4/8/9/16

Resolution

1080P/720P/D1/HD1/BCIF/CIF/QCIF

Screen

10.2" touch screen LCD (800*480)

Screen

10% ~ 90%

General

Keyboard Panel

Electromechanical

Joystick

4-axis(zoom, focus, iris)

Control

Output Control

Support video-wall display HDMI/VGA output

Control

Mode

Direct Mode

Interface: 1 RS232/ 2 RS485

DVR Protocol: DH1/DH2

Dome Protocol:

DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1, etc

Network Mode

Interface: RJ45(1 RJ-45 port (10/100/1000M)) / Wi-Fi DVR/Network Dome:

IP Address/Port/Protocol

Max Remote Users

20 (each can manage up to 256 unit devices)

USB Interface

2 USB2.0

Environmental

Power Supply

DC12V, 3A

Power Consumption

5W

Working Temperature

-10°C ~+55°C

Working Humidity

10%~90%

Atmosphere Pressure

86kpa~106kpa

Dimension

480mmx240mmx87mm (W×D×H) (height: exclude joystick)

Weight

4.5KG (Including package)

NKB3000_Datasheet_20161102.pdf

    • SKU
      NKB3000
    • Weight
      9.92 lbs
  • Manufacturer
    iMaxCamPro
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
