Nuvico/Sony NVDV3-4000 / WEC WEC-24GHZ Video Surveillance System

Zodiak
SKU: NVDV3-4000-WEC-24GHZ-KIT

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is Nuvico/Sony NVDV3-4000 / WEC WEC-24GHZ Video Surveillance System. Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately). Infrared LEDs aid in the wireless camera's nighttime vision, so you'll be able to see the evening events around your home. You'll appreciate the alloyed shell that provides the camera's weatherproof function for outdoor usage.

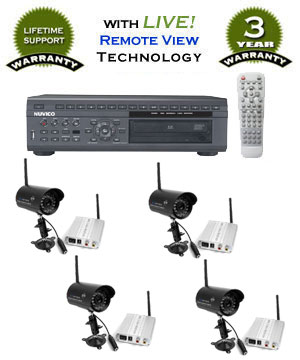

 This 4 Channel Video Package Includes:

  • (1) Nuvico NVDV3-4000 DV3 Series 4 Channel Digital Video Recorder (DVR)
  • (4) WEC WEC-24GHZ Wireless Color Infrared Audio Security Cameras
  • $2170.80

OR

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is Nuvico/Sony NVDV3-4000 / WEC WEC-24GHZ Video Surveillance System. Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately). Infrared LEDs aid in the wireless camera's nighttime vision, so you'll be able to see the evening events around your home. You'll appreciate the alloyed shell that provides the camera's weatherproof function for outdoor usage. The DVR is featured by 4 Channel DVR. Support NTSC & PAL Standards. Embedded Linux Operating System. Built-in Multiplexer, Quadruples Function-Simultaneous Record / Playback / Network / Backup. High Resolution. MPEG-4 Compression. Multi-screen Display: Live Monitor, Playback, Remote View. Multiple Video Outputs: Composite, S-Video, Spot, VGA. User Friendly Graphic Menu. Hidden / Covert Camera Function. Built-in Backup Device: CD-RW. External Backup Device Support(USB2.0):Memory Stick, External HDD. Mini Player: Auto Installation into CD or DVD during backup. Watch Dog / Power Failure Recovery. RS-422/485 for PTZ Speed Dome. Support Various PTZ Protocols. Time Synchronization between Multiple DVRs 4-ch Audio with Live Audio over Network. Software Upgrade via USB Memory Stick. Up to 1.2TB of Internal Storage. IR Remote Controller - Control up to 99 DVRs. POS Support. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

This 4 Channel Video Package Includes:
  • (1) Nuvico NVDV3-4000N DV3 Series 4 Channel MPEG4 Digital Video Recorder
  • (4) WEC WEC-24GHZ Wireless Color Infrared Audio Security Cameras

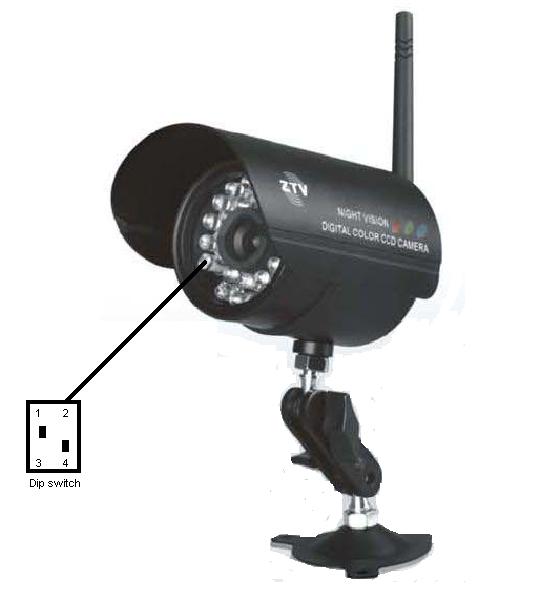

CAMERA DETAILS:

  • Wireless connection provides clear audio and video transmission
  • Range over 300 feet in typical application
  • Weather-resistant camera is safe for outdoor use

Adding a wireless camera to your home's security plan can provide peace of mind. The Day/Night Wireless Camera & Receiver combines this serenity with ease of use. The weather-resistant wireless camera transmits audio and video to the receiver over a distance of 325 feet without running any video cables, so installation takes only a few minutes. The color camera transmits even in low light, and the 2.4GHz receiver connects directly to a monitor or recording device (sold separately). Infrared LEDs aid in the wireless camera's nighttime vision, so you'll be able to see the evening events around your home. You'll appreciate the alloyed shell that provides the camera's weatherproof function for outdoor usage.

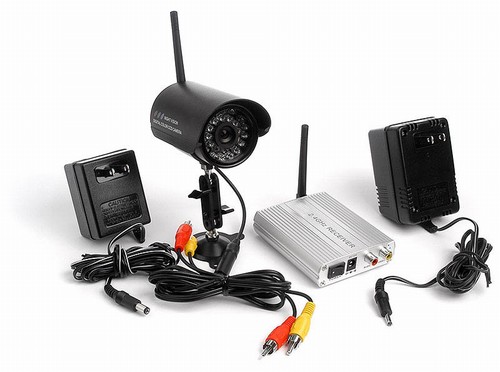

What's Included

  • Camera
  • Receiver
  • AV cable
  • 2 power adapters
  • 2 antennas
  • Mounting materials
  • Bracket
  • Instructions

CAMERA SPECS

Dimensions:5" x 4" x 2 7/16"
Imaging Sensor:1/4-inch CCD
CCD Total Pixels:NTSC: 512 (H) x 492 (V)
Horizontal Resolution:420 TV lines
View Angle:39¡Æ
Minimum Illumination:1.0 Lux/F2.0 & 0 Lux (IR on)
Gain Control:Automatic
Channel Frequency:2,468 MHz
Transmission Power:10 mW/CE; 2 mW/FCC
Modulation Type:FM
Bandwidth:18 MHz
Power Supply:12 V DC
Consumption Current:120 mA; 270 mA IR on
Unobstructed Effective Range:100 minutes
LED Continuous Working Life:6000 hours
Night Vision Range:49 feet (15m)

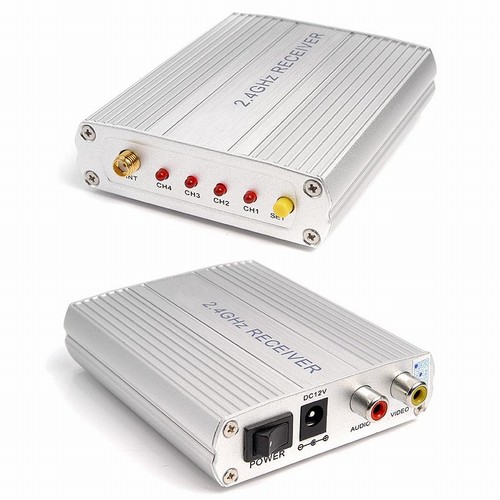

RECEIVER SPECS

Dimensions:3 1/16" x 3 1/2" x 7/8"
Weight:7.05 oz. (200g)
Receiving Frequency:2,400~2483 MHz
Intermediate Frequency:480 MHz
Frequency Stabilization:+/-100 KHz
Demodulation Type:FM
Antenna:50 ohm SMA
Local Leakage at Input Terminal:<-55 dBm
Receiving Sensitivity:<-85 dBm
Video Output:1 Vp-p@75 ohms, S/N>38dB
Audio Output:1 Vp-p@600 ohms
Power Supply:12 V DC
Consumption Current:250 mA

[Click here for Specification PDF]
[Click here for More Details]
[Click here to view our Lens Chart]

DVR DETAILS:
  • 4 Channel DVR
  • Support NTSC & PAL Standards
  • Embedded Linux Operating System
  • Built-in Multiplexer
  • Quadruplex Function-Simultaneous Record / Playback / Network / Backup
  • High Resolution
  • MPEG-4 Compression
  • Multi-screen Display: Live Monitor, Playback, Remote View
  • Multiple Video Outputs: Composite, S-Video, Spot, VGA
  • User Friendly Graphic Menu
  • Hidden / Covert Camera Function
  • Built-in Backup Device: CD-RW
  • External Backup Device Support(USB2.0):Memory Stick, External HDD
  • Mini Player: Auto Installation into CD or DVD during backup
  • Watch Dog / Power Failure Recovery
  • RS-422/485 for PTZ Speed Dome
  • Support Various PTZ Protocols
  • Time Synchronization between Multiple DVRs
  • 4-ch Audio with Live Audio over Network
  • Software Upgrade via USB Memory Stick
  • Upto 1.2TB of Internal Storage
  • IR Remote Controller - Control upto 99 DVRs
  • POS Support

[Specification PDF]
[Click here for NVDV3 Manual (PDF)]

Existing wireless equipment may cause interference or static pictures with our wireless systems.
