Uniview NVR301-04L-P4

        Uniview NVR301-04L-P4

        Uniview
        SKU: WECNVR301-04L-P4

        Uniview NVR301-04L-P4 is a 4 channel PoE 4K ultra HD recorder with Video Content Analyses (VCA) function.

         • Size: 205×205×42mm
         • 1 SATA up to 6TB
         • Plug & Play with 4 independent PoE network interfaces
         • Support 1-ch HDMI at up to 4K (3840x2160) resolution
         • Up to 8 Megapixels resolution recording
         • Support H.265/H.264 video formats
         • Mobile App + MyCloud Account

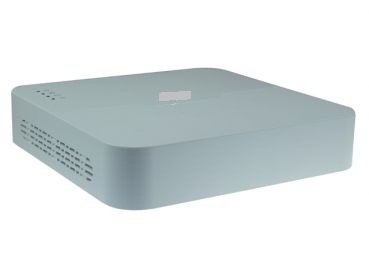

        Uniview NVR301-04L-P4, 4 channel PoE NVR

        The NVR301-04L-P4 is a 4-channel NVR with 4 PoE inputs of the Uniview brand. With this network video recorder you can connect IP cameras to an ultra HD resolution of 8MP.

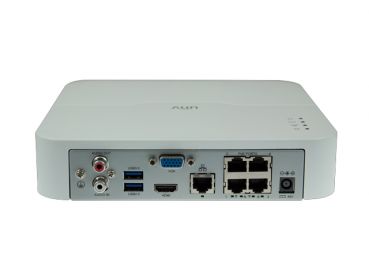

        This compact white NVR comes with a 1 SATA connector. This connector allows you to connect a hard drive to a size of 6Tb. On the backside there are 2 USB connectors for connecting a mouse and / or USB storage. In addition, this recorder has a VGA and HDMI output for connecting a monitoring monitor to a resolution of 4K (3840x2160).

        Through the smartphone application Guard Viewer, you can access the recorder on an iOS or Android device and view images, play back, play back and back up. The recorder supports a handy P2P feature, so you do not have to forward any ports on a router.

        Specifications Uniview NVR301-04L-P4:

        • 4/8/16-channel input
        • Plug & Play with 4/8 independent PoE network interfaces
        • Third-party IP cameras supported with ONVIF conformance
        • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
        • Up to 8 Megapixels resolution recording
        • Support H.265/H.264 video formats
        • Support for mobile client access

          • 50% less
          Market price:$1076.00 save $538.00
        • $538.00

        OR

        Uniview NVR301-04L-P4 is a 4 channel PoE 4K ultra HD recorder with Video Content Analyses (VCA) function.

         • Size: 205×205×42mm
         • 1 SATA up to 6TB
         • Plug & Play with 4 independent PoE network interfaces
         • Support 1-ch HDMI at up to 4K (3840x2160) resolution
         • Up to 8 Megapixels resolution recording
         • Support H.265/H.264 video formats
         • Mobile App + MyCloud Account

        Uniview NVR301-04L-P4, 4 channel PoE NVR

        The NVR301-04L-P4 is a 4-channel NVR with 4 PoE inputs of the Uniview brand. With this network video recorder you can connect IP cameras to an ultra HD resolution of 8MP.

        This compact white NVR comes with a 1 SATA connector. This connector allows you to connect a hard drive to a size of 6Tb. On the backside there are 2 USB connectors for connecting a mouse and / or USB storage. In addition, this recorder has a VGA and HDMI output for connecting a monitoring monitor to a resolution of 4K (3840x2160).

        Through the smartphone application Guard Viewer, you can access the recorder on an iOS or Android device and view images, play back, play back and back up. The recorder supports a handy P2P feature, so you do not have to forward any ports on a router.

        Specifications Uniview NVR301-04L-P4:

        • 4/8/16-channel input
        • Plug & Play with 4/8 independent PoE network interfaces
        • Third-party IP cameras supported with ONVIF conformance
        • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
        • Up to 8 Megapixels resolution recording
        • Support H.265/H.264 video formats
        • Support for mobile client access



         Video and Audio

        IP Video Input

        4-ch

        8-ch

        16-ch

        Two-way audio Input

        1-ch, RCA

         Network

        Incoming bandwidth

        40Mbps

        60Mbps

        60Mbps

        Outgoing bandwidth

        64Mbps

        64Mbps

        80Mbps

        Remote connection

        128

         Video/Audio Output

        HDMI/VGA Output

        HDMI:

        4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

        VGA:

        1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

        Audio Output

        1-ch, RCA

        Recording Resolution

        8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

        Synchronous Playback

        4-ch

        8-ch

        16-ch

         Decoding

        Compression

        H.265/H.264

        Live view/ Playback

        8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

        Capability

        1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1

         Hard Disk

        SATA

        1 SATA interface

        Capacity

        up to 6TB for each disk

         External Interface

        Network Interface

        1 RJ-45 10M/100M self-adaptive Ethernet Interface

        Network Function

        HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P

        USB Interface

        Rear panel:2 x USB2.0

         PoE

        Interface

        4 independent 100 Mbps PoE network interfaces

        8 independent 100 Mbps PoE network interfaces

        Supported Standard

        IEEE 802.3at, IEEE 802.3af

         General

        Power Supply

        48V DC

        52V DC

        Consumption ( without HDD )

        ≤ 8 W

        PoE

        Max 30W for single port

        Max 54W in total ( 13.5W for each )

        Max 30W for single port

        Max 108W in total ( 13.5W for each )

        Working Temperature

        -10°C ~ + 55°C ( +14°F ~ +131°F )

        Working Humidity

        10% ~ 90%

        Dimensions

        42 × 205 × 205mm ( 1.7" × 8.1" × 8.1" )

        42 × 270 × 205mm ( 1.7" × 10.6" × 8.1" )

        Weight ( without HDD )

        0.59kg ( 1.3 lb )

          • SKU
            WECNVR301-04L-P4
          • Weight
            1.3 lbs
        • Manufacturer
          Uniview
