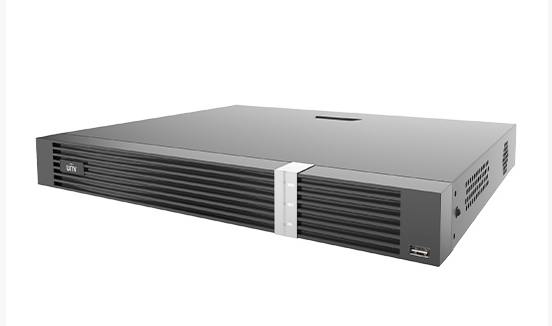

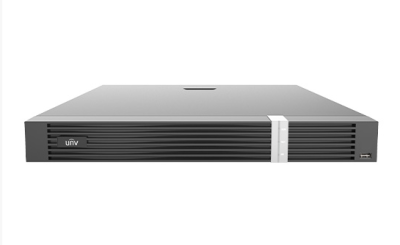

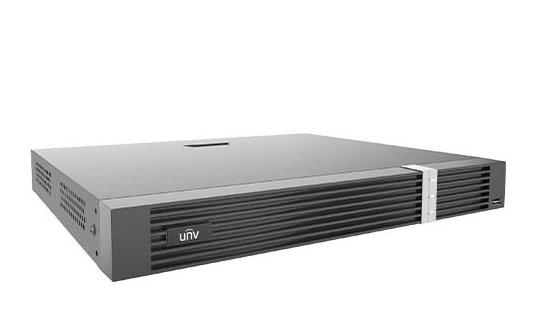

Network Video Recorder
SKU: NVR302-E2-IQ SeriesSupport Ultra H.265/H.265/H.264 video formats
9/16/32-channel input
Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Support 1-ch HDMI, 1-ch VGA. HDMI up to 4K (3840x2160) resolution
Support HDMI and VGA simultaneous output
Up to 12 Megapixels resolution recording
2 SATA HDDs, Up to 8TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
| Model | NVR302-09E2-IQ | NVR302-16E2-IQ | NVR302-32E2-IQ | ||
| Video/Audio Input | |||||
| IP Video Input | 9-ch | 16-ch | 32-ch | ||
| Two-way Audio Input | 1-ch, RCA | ||||
| Network | |||||
| Incoming Bandwidth | Smart Off: 320Mbps Smart On: 160Mbps | ||||
| Outgoing Bandwidth | Smart Off: 320Mbps Smart On: 160Mbps | ||||
| Remote Users | 128 | ||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | ||||
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows | ||||
| Video/Audio Output | |||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Audio Output | 1-ch, RCA | ||||
| Audio Compression | G.711A, G.711U | ||||
| Synchronous Playback | 16-ch | ||||
| Live View Display | 1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/36 | ||
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32 | ||
| Snapshot | |||||
| FTP/Schedule/Event Snapshot | 16-ch snapshot, up to 1080P resolution | ||||
| Decoding | |||||
| Decoding Format | Ultra 265, H.265, H.264 | ||||
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||||
| Capability | Smart Off: 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 Smart On: 1 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 18 x 720P@30, 32 x D1 | ||||
| Hard Disk | |||||
| SATA | 2 SATA interfaces | ||||
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) | ||||
| eSATA | NA | ||||
| Disk Group | Support | ||||
| Smart | |||||
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) | ||||
| NVR Smart | Smart Intrusion Prevention (SIP), UMD | ||||
| VCA Search | Behavior Search, Vehicle Search | ||||
| People Counting | People Flow Counting, Crowd Density Monitoring | ||||
| SIP by NVR with normal cameras | 4-ch | ||||
| UMD by NVR | 8-ch | ||||
| SIP, Vehicle Detection, UMD by Camera | Total 8-ch | ||||
| General Alarm | |||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | ||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | ||||
| External Interface | |||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | ||||
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | ||||
| RS232 | NA | ||||
| RS485 | 1 | ||||
| Alarm In | 8-ch | ||||
| Alarm Out | 2-ch | ||||
| General | |||||
| Power Supply | 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) | ||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | ||||

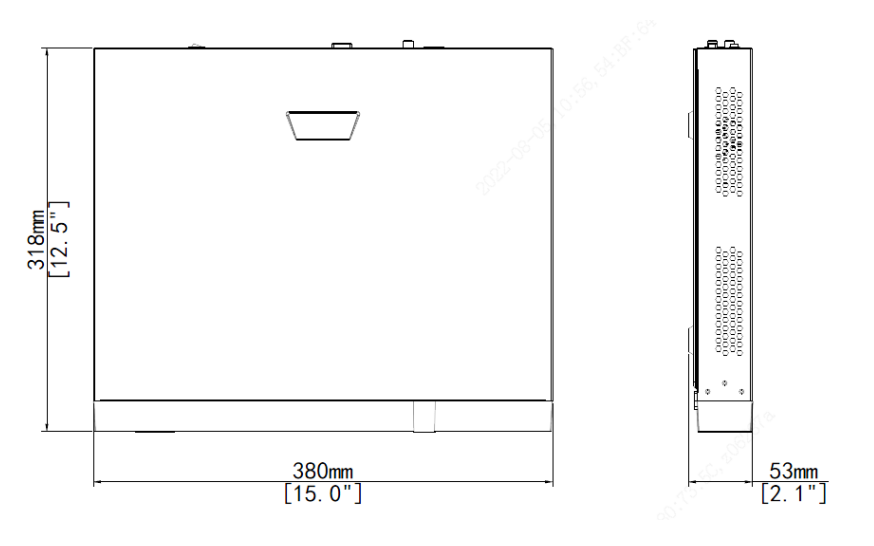

| Dimensions (W×D×H) | 380mm × 321mm × 53mm (15.0" × 12.6"× 2.1") | ||||
| Weight (without HDD) | ≤1.8Kg (3.97lb) | ||||
| Certification | |||||
| Certification | CE, FCC, UL, RoHS, WEEE | ||||
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 | ||||
| FCC | Part15 Subpart B, ANSI C63.4 | ||||
