• Support Ultra265/H.265/H.264 video formats• 8/16-channel input• Plug & Play with 8/16 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 2 SATA HDDs, up to 10TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
Support Ultra265/H.265/H.264 video formats
8/16-channel input
Plug & Play with 8/16 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support HDMI and VGA simultaneous output
Up to 8 Megapixels resolution recording
2 SATA HDDs, up to 10TB for each HDD
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
| Model | NVR302-08S-P8 | NVR302-16S-P8 | NVR302-16S-P16 | |
| Video/Audio Input | ||||
| IP Video Input | 8-ch | 16-ch | 16-ch | |
| Two-way Audio Input | 1-ch, RCA | |||
| Network | ||||
| Incoming Bandwidth | 160Mbps | |||
| Outgoing Bandwidth | 96Mbps | 96Mbps | 96Mbps | |
| Remote Users | 128 | |||
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |||
| Video/Audio Output | ||||
| HDMI/VGA Output | VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60 HDMI: 4k (3840x2160@30), 4k (3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60 | |||
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
| Audio Output | 1-ch, RCA | |||
| Synchronous Playback | 8-ch | 16-ch | 16-ch | |
| Corridor Mode Screen | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16 | |
| Decoding | ||||
| Decoding format | Ultra265/H.265/H.264 | |||
| Live view/Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||
| Capability | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30 | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 | 1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 | |
| Hard Disk | ||||
| SATA | 2 SATA interfaces | |||
| Capacity | up to 10TB for each disk | |||
| External Interface | ||||
| Network Interface | 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface | |||
| USB Interface | Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 | |||
| Alarm In | 4-ch | |||
| Alarm Out | 1-ch | |||
| PoE | ||||
| Interface | 8 RJ-45 10M/100M self-adaptive Ethernet Interface | 16 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
| Max Power | Max 30W for single port Max 130W in total | Max 30W for single port Max 130W in total | Max 30W for single port Max 240W in total | |
| Supported Standard | IEEE 802.3af/at | |||
| General | ||||
| Power Supply | 220V AC Power Consumption: ≤9 W (without HDD) | |||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) | |||

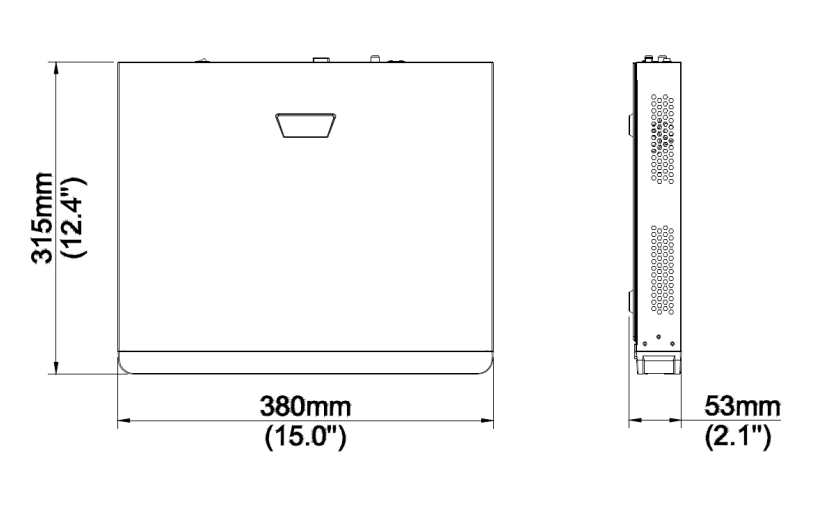

| Dimensions (W×D×H) | 380mm ×315mm × 53mm (15.0" × 12.4" ×2.1") | |||
| Weight (without HDD) | ≤2.4kg (5.29lb) | |||
NVR302-S-P Series.pdf481.9 kB
