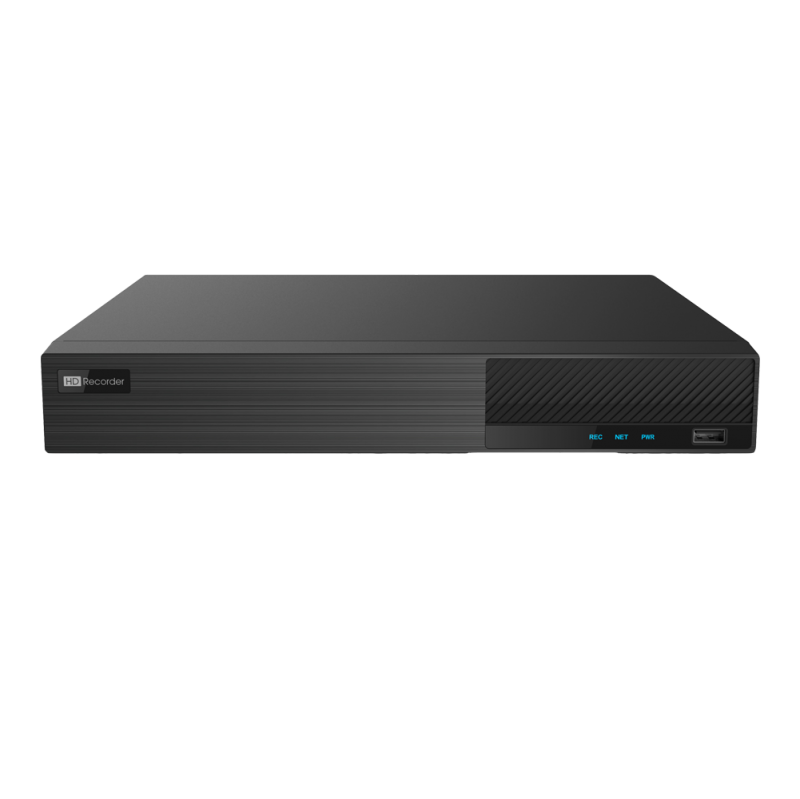

H.265 Titanium 4CH 5MP IPC HD NVR
Loading...
Loading...

        H.265 Titanium 4CH 5MP IPC HD NVR

        Worldeyecam
        SKU: WECED9304H5NV-4P-L

        Features

        • Support 4CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
        • Adopt standard H.265 and H.264 high profile compression format to
          get high-quality video at much lower bit rate
        • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
          operation by mouse
        • Multi-mode recording: manual / timer / motion / sensor
        • Playback : 4CH simultaneous playback
        • Search : time slice, time, event ( manual, sensor, motion ), tag search
        • Express and flexible backup via USB, network and so on
        • Pentaplex : preview, record, playback, backup and remote access
        • DHCP, DDNS, PPPoE network protocol and CMS supported
        • Remote control via IE or CMS : preview, playback, backup, PTZ and
          configuration
        • Dual stream technology for local storage with high definition, remote
          network transmission and remote surveillance with mobile device
        • Multi-user online simultaneously
        • Authorization management, log view and device status view
        • 1080P HD output, true high resolution display
        • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
        • Support NAT function and QRCode scanning by mobile phone and PAD
        • Powerful smart phone & Pad surveillance with iOS and Andriod OS
          • 50% less
          Market price:$276.00 save $138.00
        • $138.00

        OR

        Features

        • Support 4CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
        • Adopt standard H.265 and H.264 high profile compression format to
          get high-quality video at much lower bit rate
        • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
          operation by mouse
        • Multi-mode recording: manual / timer / motion / sensor
        • Playback : 4CH simultaneous playback
        • Search : time slice, time, event ( manual, sensor, motion ), tag search
        • Express and flexible backup via USB, network and so on
        • Pentaplex : preview, record, playback, backup and remote access
        • DHCP, DDNS, PPPoE network protocol and CMS supported
        • Remote control via IE or CMS : preview, playback, backup, PTZ and
          configuration
        • Dual stream technology for local storage with high definition, remote
          network transmission and remote surveillance with mobile device
        • Multi-user online simultaneously
        • Authorization management, log view and device status view
        • 1080P HD output, true high resolution display
        • Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
        • Support NAT function and QRCode scanning by mobile phone and PAD
        • Powerful smart phone & Pad surveillance with iOS and Andriod OS
        More Information
        Max Image Resolution5MP
        System CompressionStandard H.265, H.264
        Operating SystemEmbedded Linux
        IP Camera Input4CH
        Video Out

        HDMI × 1 : 1920×1080/1280×1024/1024×768
        VGA × 1 : 1920×1080/1280×1024/1024×768

        Audio InN/A
        Audio OutN/A
        2 Way AudioN/A
        Recording Resolution5MP / 4MP / 3MP / 2MP / 1MP / D1 / CIF
        Recording ModeManual, timer, motion, sensor
        Record StreamDual stream recording
        Playback Channels4CH
        Playback SearchTime slice / time / event / tag search
        Playback Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
        Playback FunctionRecord, snap, preset, e-mail, etc.
        Alarm ModeSensor, motion, video loss
        Alarm InN/A
        Alarm OutN/A
        Trigger EventsRecord, snap, preset, e-mail, etc.
        Network InterfaceRJ45 10 / 100 Mbps × 1
        Incoming Bandwidth28Mbps
        Outgoing Bandwidth28Mbps
        Network ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
        Network Max. UsersN/A
        PoE PortsN/A
        MobileiPhone, Android
        RS485N/A
        USBUSB 2.0 × 2
        remoteOptional
        Power Supply48V DC
        Power Consumption≤ 6W ( without HDD )
        Internal HDD1 x SATA, max 10T per HDD
        e-SATAN/A
        Operating Conditions-10 ~ 50 ℃,10% ~ 90% humidity
        Dimensions255mm x 233mm x 42 mm
