- 33% less

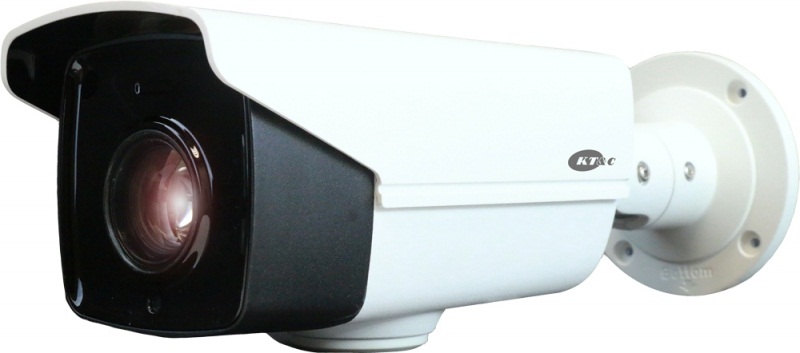

5-50mm Motorized Bullet
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- HD-TVI HD BNC output, plus CVBS analog BNC output for alternative connection/monitoring**
- CVBS Service Video output for convenient installation, and ease of service**
- Operation over ‘almost any’ wire - Over 1000 feet on standard RG59 coax; longer distances on RG6 - Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
- 1/3” progressive scan CMOS sensor with .01 lux native light sensitivity
- Up the cable controlled motorized zoom 5~50mm Megapixel lens with zoom speed control (6.2°~59.8° FOV)
- Auto-focus lens with minimum focus distance control; manual, one-touch or full auto modes; plus 64 lens presets
- 120dB True Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions**
- Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
- True Day/Night zero light operating range of 394 feet or more (depending on scene reflectivity) from two Super Beam IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired scene brightness despite reflections and bright spots
- Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu - Local 3-axis joystick inside access cover - Up-the-cable control from OMNI EZHD recorders (or other compatible UTC control equipment) - True Wide Dynamic Range for bright or unbalanced scene lighting conditions** - Digital Wide Dynamic range option - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D + 2D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details
- Smart Digital Zoom** expands selected areas within the field of view to full screen when motion is detected
- Dual 24VAC/12VDC operation drawing only 20W
- IP66 weather resistant, vandal resistant construction
- Operating temperature range of -40°F~140°F with built in heater (can be set for auto/on/off)
- Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
- Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
- HD-TVI HD BNC output, plus CVBS analog BNC output for alternative connection/monitoring**
- CVBS Service Video output for convenient installation, and ease of service**
- Operation over ‘almost any’ wire - Over 1000 feet on standard RG59 coax; longer distances on RG6 - Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
- 1/3” progressive scan CMOS sensor with .01 lux native light sensitivity
- Up the cable controlled motorized zoom 5~50mm Megapixel lens with zoom speed control (6.2°~59.8° FOV)
- Auto-focus lens with minimum focus distance control; manual, one-touch or full auto modes; plus 64 lens presets
- 120dB True Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions**
- Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
- True Day/Night zero light operating range of 394 feet or more (depending on scene reflectivity) from two Super Beam IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired scene brightness despite reflections and bright spots
- Easy mounting using 3-Axis positioning for convenient wall or ceiling mounting
- Simple and easy to use OSD setup menu - Local 3-axis joystick inside access cover - Up-the-cable control from OMNI EZHD recorders (or other compatible UTC control equipment) - True Wide Dynamic Range for bright or unbalanced scene lighting conditions** - Digital Wide Dynamic range option - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D + 2D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details
- Smart Digital Zoom** expands selected areas within the field of view to full screen when motion is detected
- Dual 24VAC/12VDC operation drawing only 20W
- IP66 weather resistant, vandal resistant construction
- Operating temperature range of -40°F~140°F with built in heater (can be set for auto/on/off)
- Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box
| Imaging Device | 1/3" Progressive Scan CMOS |
| Video Format | Main Output: 1080p30/25 HD-TVI (30/25Hx OSD selectable) |
| Secondary Output: CVBS (OSD selectable NTSC/PAL) aux video, plus test point** | |
| Effective Picture Elements | 1920 (H) x 1080 (V) |
| Horizontal Resolution | More than 1080 HTVL |
| Sensitivity | 0 lux IR on; .01 lux @ F1.2 (AGC On) |
| Day/Night Type | True Day/Night with ICR motorized filter control |
| Lens | Type: Megapixel Motorized 10X Autofocus Type 5~50mm IR corrected |
| Angle of View: 59.8°(5mm) ~ 6.2°(50mm) | |
| Zoom Speed: User selectable range 1~8 | |
| Presets: Up to 64 zoom presets can be stored | |
| Focus mode: Auto, Manual or “One Touch” (Trigger) Modes | |
| Zoom Ratio Display: OSD controlled Off/On | |
| Minimum Focus DistanceOSD controlled .1, .3, 1, 1.5, 3, 6, 10 or 20m | |
| IR LED | Two Super Beam LEDs, 850nm (Can be disabled in OSD if desired) |
| IR Range | 394’ / 120m (As with all IR cameras, IR range will vary based on scene IR reflectivity and illumination) |
| Smart IR Exposure Adjust | Active when IR enabled |
| S/N Ratio | Over 62dB |
| Video Output Connector Type | TVI & CVBS: BNC 75Ω |
| Test Video**: CVBS video test point inside access cover, cable to BNC supplied | |
| Sync. Mode | Internal |
| OSD Menu | Multiple functions using 3-axis joystick under access cover; UTC Control |
| OSD Languages | English, Chinese |
| UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
| Scene Optimization | Choose: Indoor, Outdoor |
| WDR/ BLC/HSBLC | WDR: 120dB WDR Off/On** |
| BLC: Low, Middle, High with adjustable area size/position | |
| HSBLC: On/Off for 4 areas, adjustable area size/position and level; full time or night-only | |
| Auto Gain Control | 0~15 |
| Electronic Shutter | Auto (Iris Priority); or manual 1/30 (25), FLK, to 1/50,000 |
| White Balance | ATW; AWC->SET; Manual |
| Color Correction | Nominal Gamma 0.45, adjustable; or, separate adjustment for red and blue levels |
| Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor; IR LEDs may be disabled. |
| Optional color-only and B/W only modes under OSD control | |
| Digital Slow Shutter [DSS]/Sens-Up | DSS low light boost Off/Auto 0~13* *High Sens Up levels should be used only after careful consideration of scene dynamics |
| 2D-DNR | On/Off |
| 3D-DNR | Off/On: Smart Noise Reduction with adjustable level; adjustable AGC range limits |
| Digital Zoom | 2X~62X with virtual P/T (area selection) |
| EZ Digital Zoom** | Select 1 or 2 programmable areas with sensitivity level; while in-area motion/pixel change is detected, image zooms to full screen display of selected area and holds for user selected time; size of area to be shown full screen selected defines zoom ratio when active. |
| Brightness | 1~14 |
| Defog | Adjustable area size/position; gradient off, low, middle, high |
| Digital Wide Dynamic Range | On/Off |
| Mirror | Off / H-flip, V-flip, rotate |
| Motion Detection | Off/On for 4 programmable zones (pixel change detection) |
| Privacy Mask | Off/On with full programmability for 8 selectable zones |
| Lens Shading Compensation) | Off/On |
| DPC (Defective Pixel Correction) | Live mode with level adjust; static mode with level, DSS and AGC adjust |
| Other OSD Functions | Flickerless; Camera Title with position, Font Color; Image Sharpness; CRT/LCD display optimization; Negative Image |
| Power Source | 12VDC/24VAC +/-15% |
| Power Consumption | 12VDC:1.67A ; 24VAC: 20W |
| Operating Temperature | -40 °F ~ 140 °F (-40 °C ~ 60 °C) |
| Heater | Heater may be controlled via OSD: Off/On/Auto |
| Environmental | IP66 weather resistant |
| Mechanical | Metal body with plastic access port for 3-axis OSD joystick controls and external lens adjust, CVBS video test point, and switch to toggle WDR state. |
| Positioning | 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~90° Rotate: 0~360° |
| Dimensions | Body 12.3” × 4.2” × 4.0” [313.5 × 107.3 × 100.8mm]; base 4.14”Ø (105.2mm) |
| Weight | 3.6 lbs./1.65Kg |
| Mounting Options | Optional KA-BRJB2 Junction Box; or optional KA-BRPM1 Pole Mount with or without a junction box |
| Certifications | CE / FCC / RoHS |
