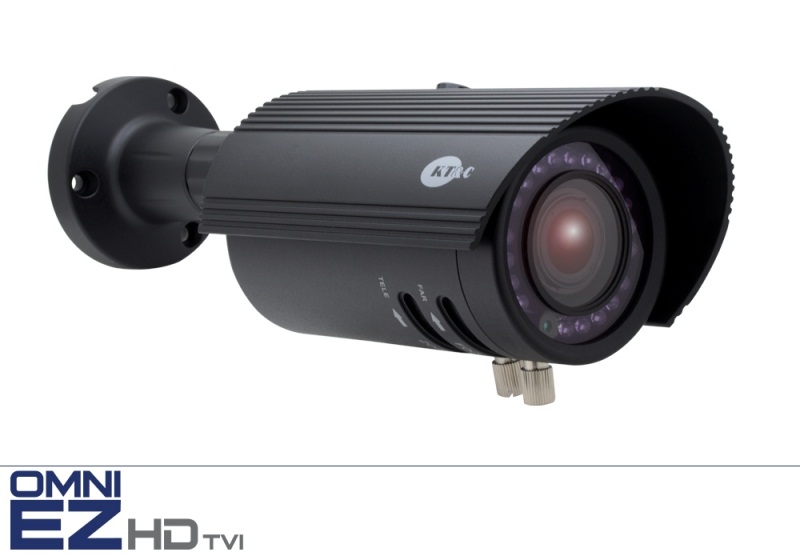

1080p HD-TVI Outdoor Bullet with IR
SKU: KEZ-C2BR28V12IRW- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback - Field select 1080p or 720p - Field select 30/25 Hz or 60/50 Hz
- Operation over ‘almost any’ wire - More than 1000 feet on standard RG59 coax - More than 1500 feet on RG6 - More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
- HD-TVI HD BNC main output
- CVBS analog service video output inside housing - Use standard hand held test monitors - Convenient aim and focus; ease of service
- 1/2.8” progressive scan CMOS sensor with .5 lux native light sensitivity
- Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view
- True Day/Night zero light operating range of 100 feet or more (depending on scene reflectivity) from 20 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Simple and easy to use OSD setup menu - Local 3-axis joystick inside access cover - Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment) - Digital slow shutter (Sens-Up) low light enhancement (More than 2~4X enhancement should be limited to select applications.) - Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details - Image H/V flip and rotate, digital zoom and more
- Dual voltage 24VAC/12VDC operation with low current draw
- 3-axis mount that conceals and protects the cables
- IP66 weather resistant, metal construction with external lens adjustment
- Operating temperature range of 14°F~122°F
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback - Field select 1080p or 720p - Field select 30/25 Hz or 60/50 Hz
- Operation over ‘almost any’ wire - More than 1000 feet on standard RG59 coax - More than 1500 feet on RG6 - More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL1 balun pair).
- HD-TVI HD BNC main output
- CVBS analog service video output inside housing - Use standard hand held test monitors - Convenient aim and focus; ease of service
- 1/2.8” progressive scan CMOS sensor with .5 lux native light sensitivity
- Varifocal Aspheric 2.8~12mm 2 Megapixel lens to capture the desired field of view
- True Day/Night zero light operating range of 100 feet or more (depending on scene reflectivity) from 20 IR LEDs
- Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
- Simple and easy to use OSD setup menu - Local 3-axis joystick inside access cover - Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment) - Digital slow shutter (Sens-Up) low light enhancement (More than 2~4X enhancement should be limited to select applications.) - Digital Wide Dynamic Range to handle the most challenging of bright or unbalanced lighting conditions - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC) - Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space - Privacy masking for 8 configurable zones - Lens shading compensation for even exposure out to the lens periphery - Defog improves image contrast in the presence of haze or smoke that obscures image details - Image H/V flip and rotate, digital zoom and more
- Dual voltage 24VAC/12VDC operation with low current draw
- 3-axis mount that conceals and protects the cables
- IP66 weather resistant, metal construction with external lens adjustment
- Operating temperature range of 14°F~122°F
Imaging Device | 1/3" Sony 2.1Mp Progressive Scan CMOS |
Video Format | Main Output: 1080p30/25, 720p60/50 HD-TVI (OSD selectable) Secondary Output: CVBS (OSD selectable NTSC/PAL) service video test point |
Effective Picture Elements | 1984 (H) x 1105 (V) |
Output Resolution | 1920 (H) x 1080 (V) |
Horizontal Resolution | More than 1080 HTVL (in 1080p mode) |
Sensitivity | 0 lux IR on; .5 lux @ F1.6 (AGC On) |
Day/Night Type | True Day/Night with ICR motorized filter control |
Lens Type | 2 Megapixel Varifocal Type 2.8~12mm F=1.6 IR corrected |
Lens Adjustment | Lens zoom and focus adjustable from outside the housing |
IR LED | 20 Smart IR LEDs, 850nm |
IR Range* | 100’ / 30m |
Smart IR Exposure Adjust | Active when IR enabled: Off/Low/Mid/High |
Video Output Connector Type | TVI and CVBS: BNC 75Ω Test Video: CVBS video test point inside access cover, cable to BNC supplied |
Sync. Mode | Internal |
OSD Menu | Multiple functions using 3-axis joystick inside housing; UTC Control |
OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, French |
UTC Control | Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling |
WDR / BLC / HSBLC | OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color. |
Auto Gain Control | OFF; 2~42dB |
Electronic Shutter | Auto; FLK; or Manual 1/30 (25) to 1/30,000 |
White Balance | Auto / Push Lock / Manual |
Color Correction | Gamma 0.45~.65, adjustable |
Day & Night | Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control |
Sens-Up | DSS low light boost Off/Auto 2X~16X* |
3D-DNR | Off/Low/Mid/High/Auto |
Digital Zoom | 1X~8X |
Defog | Off/Low/Mid/High |
Mirror | Off / H-flip, V-flip, rotate |
Motion Detection | Off/On for programmable zone with sensitivity adjust (pixel change detection) |
Privacy Mask | Off/On with full programmability for 8 selectable zones |
Lens Shading Compensation) | Off/Low/Mid/High |
DPC (Defective Pixel Correction) | Off/On |
Other OSD Functions | Camera Title with position, Font Color; Image Sharpness |
Power Source | 12VDC/24VAC |
Power Consumption | 12VDC: 400mA, 24VAC: 4.8W (IR LED On) |
Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
Environmental | IP66 weather resistant |
Mechanical | Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point; mount conceals and protects cables; external lens adjustment |
Positioning | 3-axis flexible positioning for wall or ceiling mounting |
Dimensions | Ø2.56” × 4.72” [Ø65 × 120mm] Body alone (across sunshield): 3.23” diameter/5.71” long ; 8.82” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high |
Weight | 1.98 lbs./.9 Kg |
Certifications | CE / FCC / RoHS |
KEZ-c2BR28V12IR_spec_vs1.2.pdf
