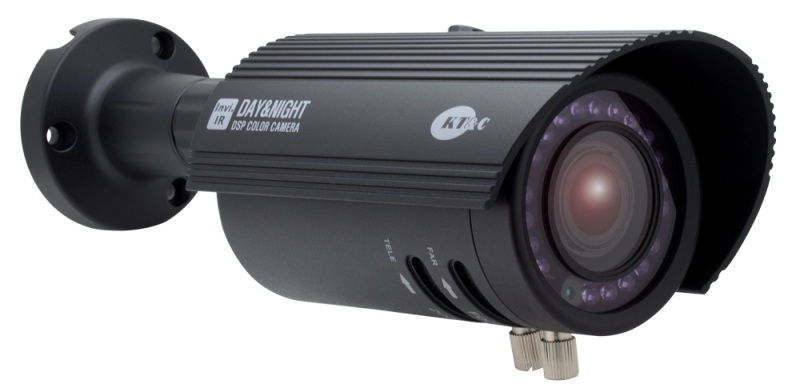

Invisible IR True D/N Dual Voltage IP66 Bullet Camera
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- EXview HAD 960H CCD IIfor high sensor IR sensitivity
- Varifocal 2.8~12 mm DC iris lens to capture the desired field of view
- True Day/Night zero light operating range of 80 feet or more from 20 Invisible IR LEDs (depending on scene reflectivity)
- “Invisible” (940 nm) IR LEDs cannot be seen by the human eye
- Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion
- Simple and easy to use OSD setup menu
- Dual voltage (12V DC/24V AC) with Anti Color Roll
- IP66 (Weather Resistant)
- Extreme Operating temperature down to -40 degrees
- External lens adjustment and service Video output for convenient installation, and ease of service
- 3-axis bracket conceals and protects cable
- Available in a Black Housing Only
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Camera packaging contents:
-
-
- Superlative resolution of over 750 horizontal TV lines for amazing image quality
- EXview HAD 960H CCD IIfor high sensor IR sensitivity
- Varifocal 2.8~12 mm DC iris lens to capture the desired field of view
- True Day/Night zero light operating range of 80 feet or more from 20 Invisible IR LEDs (depending on scene reflectivity)
- “Invisible” (940 nm) IR LEDs cannot be seen by the human eye
- Reflection preventing dual section cover glass isolates IR emitters from lens to prevent image distortion
- Simple and easy to use OSD setup menu
- Dual voltage (12V DC/24V AC) with Anti Color Roll
- IP66 (Weather Resistant)
- Extreme Operating temperature down to -40 degrees
- External lens adjustment and service Video output for convenient installation, and ease of service
- 3-axis bracket conceals and protects cable
- Available in a Black Housing Only
-
-
| Model | ||
| KPC-N501NUB | 2.8~12 mm VF, Black | |
| Model | N501NU | |
| Imaging Device | 1/3" Sony Exview HAD II 960H High Sensitivity Interline CCD | |
| Video Format | NTSC | |
| Picture Elements | 1020 (H) x 508 (V) | |
| Effective Picture Elements | 976 (H) x 494 (V) | |
| Horizontal Resolution | More than 750 TVL | |
| Sensitivity | 0 lux with Invisible* IR on 0.0001 lux native from sensor – no ghosting | |
| Invisible* IR LEDs | 20 LEDs with output at 940 nm *IR illuminators operating at 940nm cannot be seen by the human eye. | |
| Invisible* IR Range | 82 feet or more (depending on scene Invisible IR reflectivity) | |
| Invisible* IR Switch Points | On at ~1 lux; Off at ~3 lux | |
| S/N Ratio | Over 50dB (AGC off) | |
| Video Output | BNC 1.0V p-p 75 Ω; video test point inside dome, cable supplied | |
| Gamma Correction | Gamma 0.45 nominal; adjustable brightness, contrast, saturation, hue and gain | |
| Lens Type | Varifocal 2.8~12 mm Megapixel DC Iris Type | |
| Positioning | Flexible positioning for wall or ceiling mounting | |
| Back Light Compensation | OFF / BLC / HSBLC Selectable | |
| Auto Gain Control | Low light auto, Bright light auto, Manual selectable | |
| Electronic Shutter | 1/60 ~1/100,000 sec. | |
| White Balance | ATW / One Push / User1 / User2 / Anti-Color Roll / Manual / Push Lock | |
| Sync. Mode | Internal (plus Anti-Chroma Crawl White Balance option above) | |
| Day & Night | True D/N with motorized Invisible IR cut filter; Choose Color, B/W, Auto | |
| OSD Menu | Multiple functions | |
| OSD Languages | English, Spanish, Portuguese, German, Russian, Japanese, Chinese, French | |
| 2D-DNR | On/Off (level adjustable) | |
| Adaptive Tone Curve Reproduction/ Electronic WDR (ATR) | On/Off (3 levels each adjustable for luminance and contrast) | |
| Mirror | Off/On | |
| Motion Detection | Off/On for 4 selectable zones (On screen indication on alarm) | |
| Privacy Mask | Off/On for 4 selectable zones | |
| Power Source | 12V DC / 24V AC | |
| Power Consumption | 12V DC: max. 360mA / 24V AC: max. 4.9W | |
| Operating Temperature | -40 °F ~ 122 °F (-40 °C ~ 50 °C) | |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) | |
| Environmental | IP66 (Weather Resistant) | |
| Mechanical | Metal housing with sun shield; rear weather sealed rear access port for OSD menu and video test point | |
| Dimensions | Body alone (across sunshield): 3.23” diameter/5.12” long ; 8.72” in line, longest extension; in 90° position, ~8.25” long and ~5.4” high | |
| Weight | 1.55 lbs (0.7 kg) | |
| Certifications | CE / FCC / ROHS | |
| Warranty | 5 years | |
