Parameter | Function |

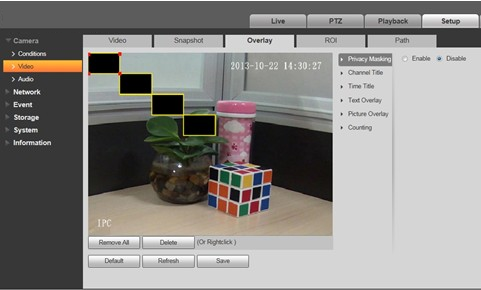

Privacy mask | - Here you can privacy mask the specified video in the monitor video.
- System max supports 4 privacy mask zones.
|

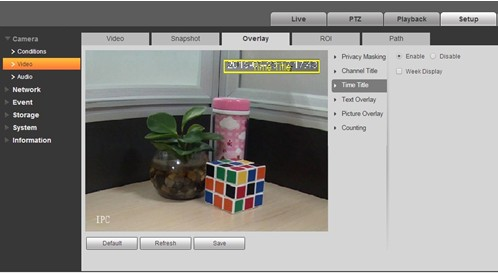

Time Title | - You can enable this function so that system overlays time information in video window.
- You can use the mouse to drag the time tile position.
|

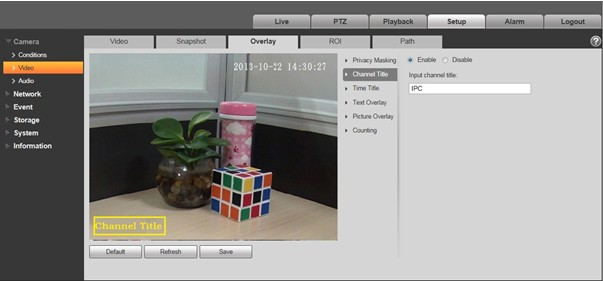

Channel Title | - You can enable this function so that system overlays channel information in video window.
- You can use the mouse to drag the channel tile position.
|

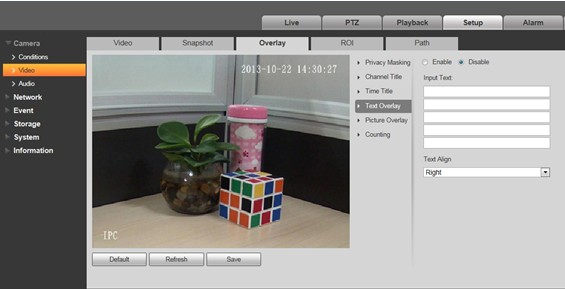

Location | - You can enable this function to overlay location information in video window.
- You can click on setup button to set location information. You can use the mouse to drag location box to adjust its position. Alignment include align left and align right.
|
Overlay | - You can enable this function to display overlay picture. Click on disable to turn it off.
- Click on Upload Picture to overlay local picture into monitoring window. You can drag the yellow box to move it.
Note: You cannot enable location and overlay at the same time. |
Counting | - Check “Enable” to display the counting statistics data in the video monitoring window; check “Disable” not to display.
- There are enter number and leave number for statistics type and left align and right align for OSD info.
|
Refresh | - Set privacy mask, channel title, time title, location, overlay and save the change. You can click on Refresh to see effect.
|
